JWS DWPS102U Quick Start Manual

DWPS102U

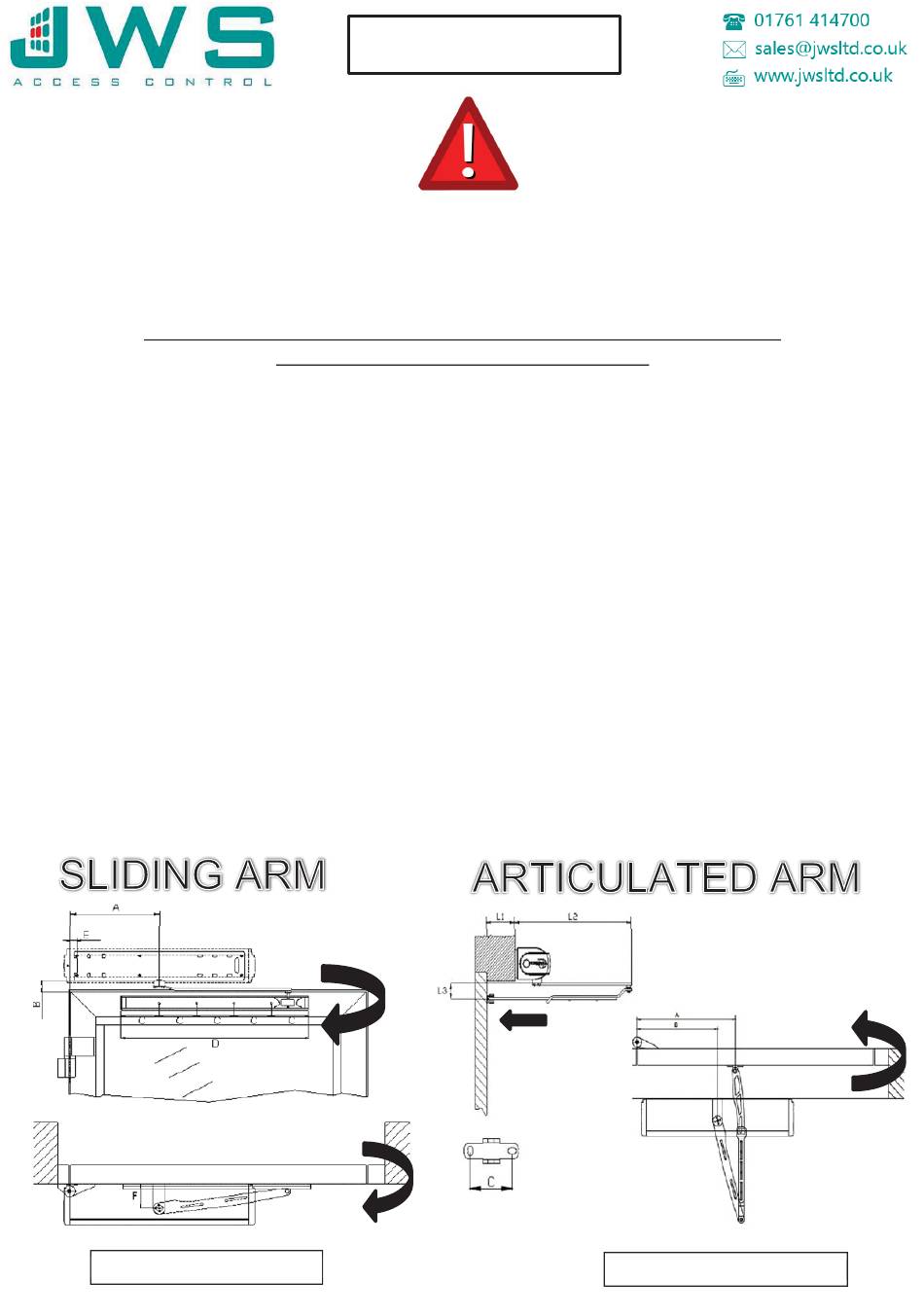

* IMPORTANT – PLEASE READ BEFORE INSTALLATION! *

Before attempting to fit the DWPS102U, it is important to ensure the following

information matches that of the door you wish to automate.

JWS are always happy to check information/pictures of the door you wish to

automate to check suitability of the operator.

All work undertaken on automatic doors must comply with EN16005 and JWS

always recommend using a suitably qualified company / contractor.

THE DOOR MUST BE LESS THAN 1.2m WIDE, UNDER 120kg, have at least

100mm above the door for mounting and have

closing system fitted in the

frame, door or jamb. If Inward Opening, the Door Face must be flush to the

header (not recessed). If outward Opening, the reveal depth must be less than

195mm.

THE DWPS102U

IS NOT

SUITED FOR A BUSY THOROUGHFARE: i.e. a school

entrance, supermarket entrance or other high traffic areas.

PUSHING AND PULLING OF THE DOOR WITH A DWPS102U WILL CAUSE

DAMAGE TO THE INTERNAL COMPONANTS –

THIS IS NOT COVERED BY

MANUFACTURER, OR JWS WARRANTY.

ENSURE YOU FIT THE CORRECT ARM FOR THE

DOOR YOU ARE AUTOMATING.

FOR INWARD OPENING

FOR OUTWARD OPENING

Table of Contents

Need help?

Do you have a question about the DWPS102U and is the answer not in the manual?

Page 1 DWPS102U * IMPORTANT – PLEASE READ BEFORE INSTALLATION! * Before attempting to fit the DWPS102U, it is important to ensure the following information matches that of the door you wish to automate. JWS are always happy to check information/pictures of the door you wish to automate to check suitability of the operator.
Page 2 QUICK START GUIDE FOR CDVI DWPS102U Initial Phase: - MAKE SURE ALL EXISTNG CLOSING MECHANISMS HAVE BEEN REMOVED AND REPLACED WITH DUMMY UNITS IF NECESSARY. “Main Menu”, you can then scroll through using the up and down buttons and OK to enter or set.
