Summary of Contents for Minuteman C46310-00

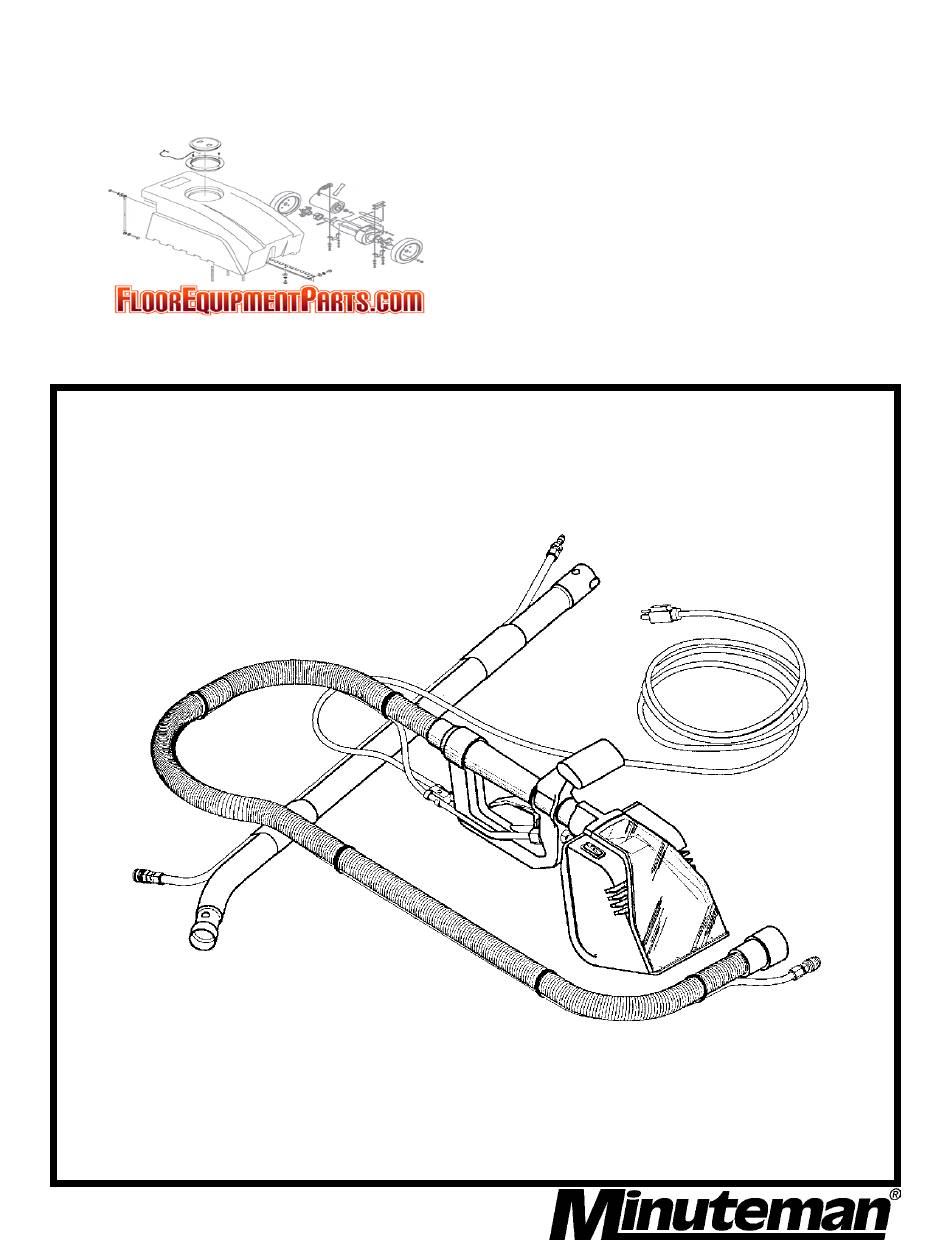

- Page 1 Motorized Tool Model: C46310-00 Wall Unit C46310-02 C46310-02CE OPERATION CARE SERVICE PARTS Revised 8/01...
- Page 3 FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
-
Page 4: Grounding Instructions
ELECTRICAL - Model C46310-00 (115V) This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. -
Page 5: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical assembly. No lubrication of the motor is required. DAILY MAINTENANCE 1. The powerhead should be cleaned daily. Flush pumping system with 1 gallon of clean water after use. - Page 6 The single bar position is for “low” speed. The center position is “off”. Double bar position is for “high” speed. (See fig. 1). Minuteman recommends using the ”stiff” bristled brush for carpet and the “soft” bristled brush for upholstery. See fig. 5 for brush...
- Page 7 EXTENSION WAND INSTALLATION 1. Detach power cord from the trigger guard and the cable clip. 2. Disengage powerhead from handle assembly by depressing the burgundy locking button and disconnecting coupling 1. (see fig. 3). 3. Insert the stainless steel extension wand curved end, (see fig.
- Page 9 Parts Listing ITEM PART NO DESCRIPTION 450260 Powerhead Assy 715339 Decal, Switch 742298 Switch, 3-Position 450274 Knob Assembly 715336 Decal, Brush Removal 711158 SCR-Hi/Lo #7-19 x 3/8 450287 Brush Assembly, Carpet 450288 Brush Assembly, Upholstery 450273 Pulley 850042 Bearing 6000 Sealed 711163 SCR-Hi/Lo #10-16 x ½...
- Page 10 ITEM PART NO DESCRIPTION 450256 Pick-Up Tube 450258 Trigger Guard, Right 450249 Spotter Hose Assembly Complete 711163 SCR-Hi/Lo #10-16 x ½ 450257 Trigger Guard, Left 390053 Trigger Solution Valve 711803 Cotter Pin .06 x .75 390063 Grove Stud Rd. Hd. #2427 712323 WSR-Flat .195 x .281 x .03 SS 450267...
-
Page 11: Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of one year from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
