Measumax 34-219 Operating Instructions

34-219
Please read the following instructions carefully before using product.

Before operation

Before using the indicator for the first time, please remove the rust preventative oil on the indicator
with a soft cloth.
Remove battery compartment lid and insert a SR44 battery with its positive (+) side facing upward.

Operating precautions

Keep the unit away from coolant to prevent liquid from getting into the circuitry
Damage may be caused if the unit is subjected to shocks, impact, or dropping.
This may cause the unit to loose its accuracy
Do not operate the test indicator in direct sunlight. Do not store indicators in an
area of extreme high or cold temperature
Do not allow any part of digital test indicator to come into contact with voltage.
This could cause damage to the circuitry
Use SR44 (silver oxide cell) battery
If the unit is not in use for a long period of time, the battery should be removed

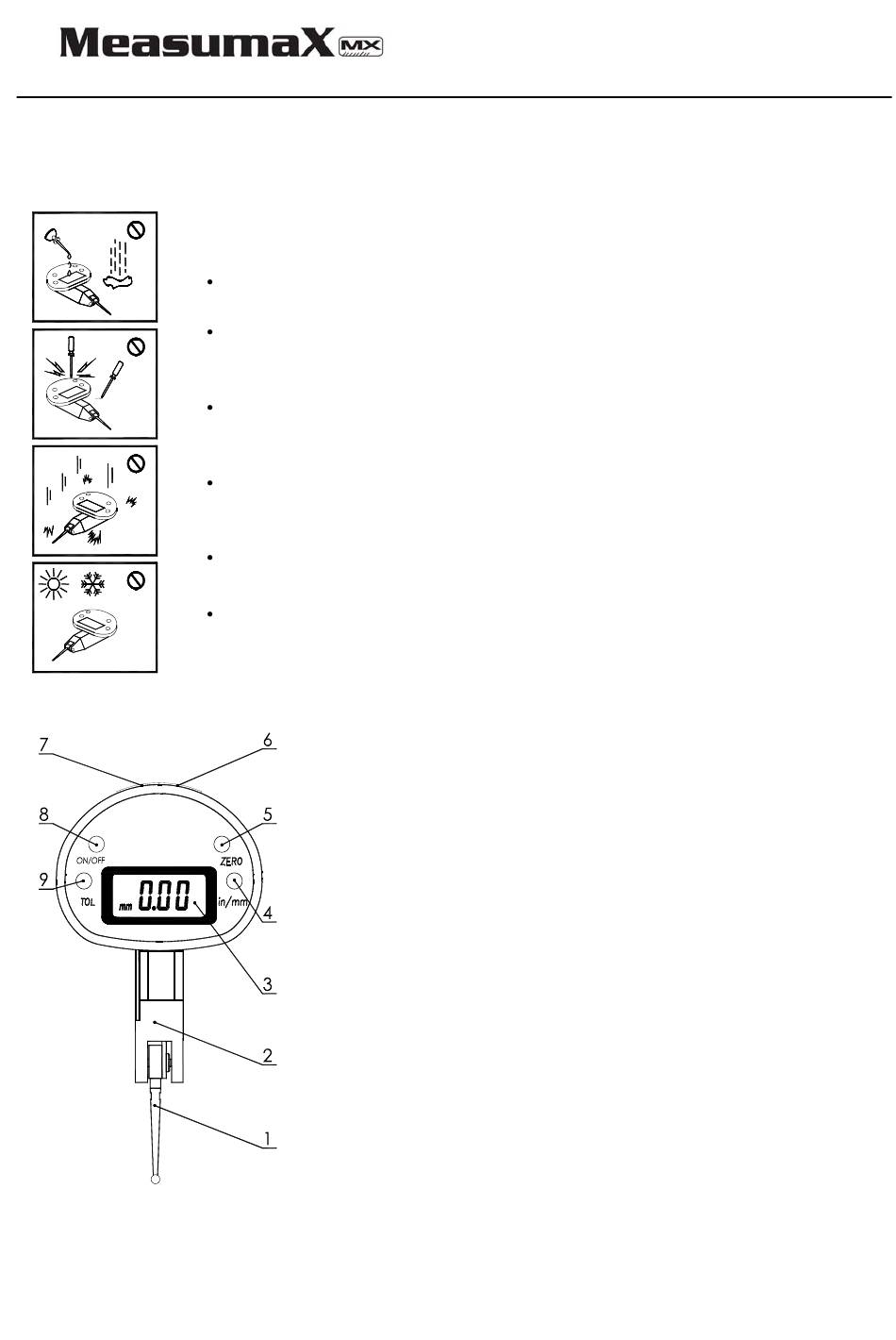

Indicator features

1. Measuring lever
3. LCD display
5. ZERO switch
7. Output Connector
9. TOL setting key
Function
During measurement, mm/inch conversion can be
made at any time. Tolerance needs to be preset
before measurement and auto-identified accordingly.
During measurement, relative zero point can also be
set at any time.
DIGITAL TEST INDICATOR
OPERATING PRECAUTIONS
.
.
2. Base
4. Inch/mm switch
6. Battery compartment
8. ON/OFF switch
.
