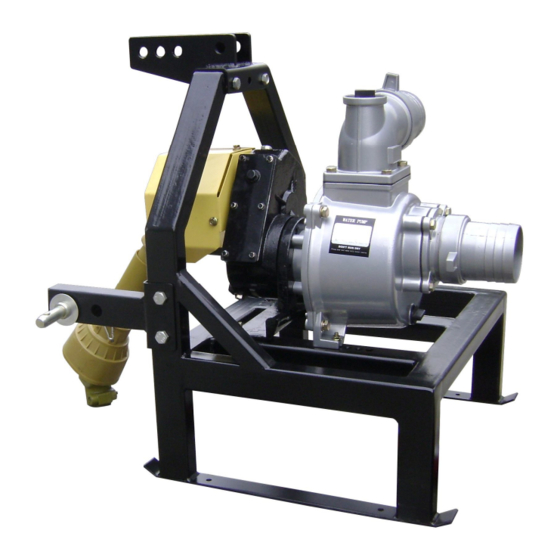

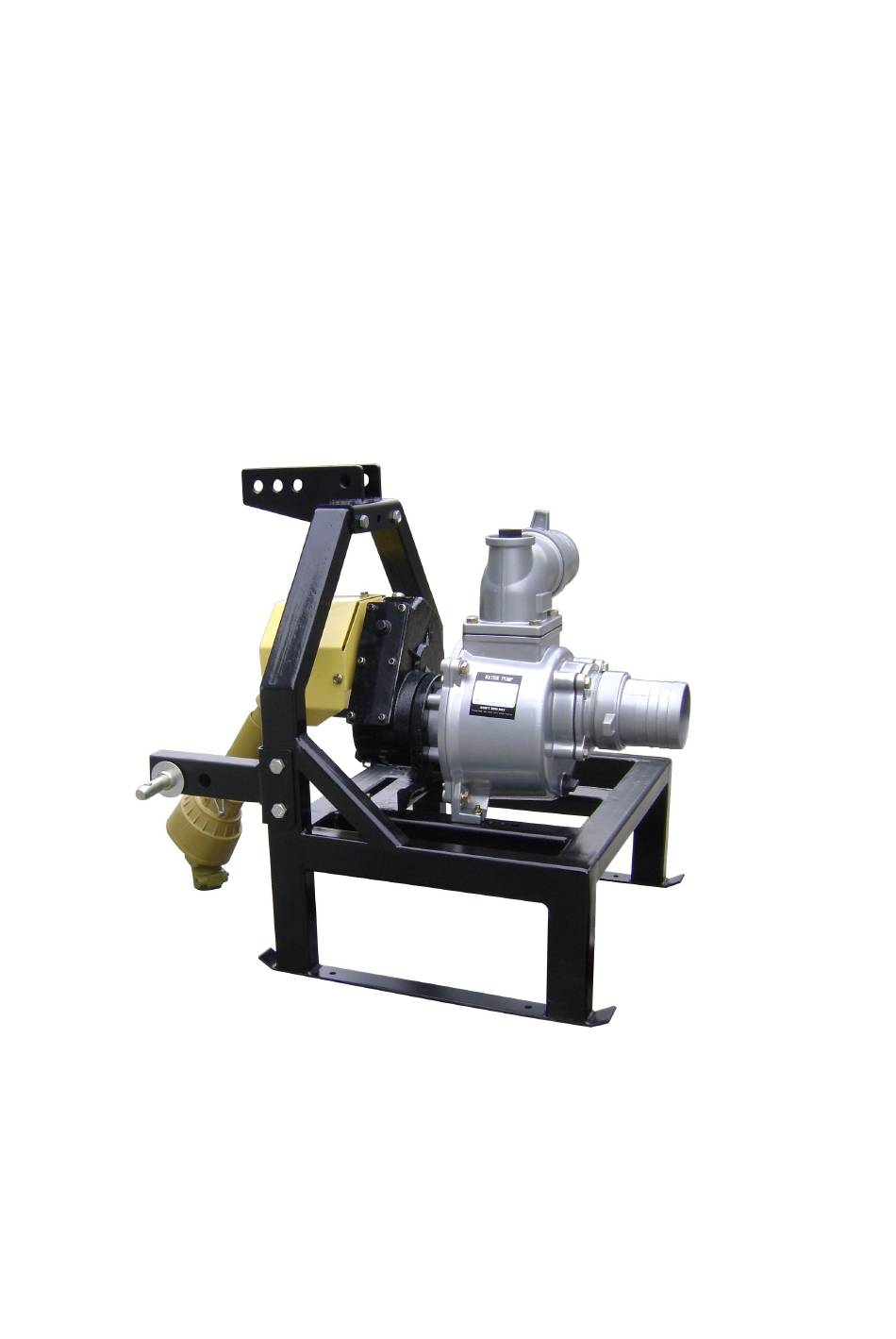

PTO WATER PUMP
OWNER¡S
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PTOW3 and is the answer not in the manual?

Questions and answers

Summary of Contents for agri supply PTOW3

  • Page 1 PTO WATER PUMP OWNER¡S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Description General Safety Information Specifications Installation Operation Maintenance Troubleshooting Explosive view&parts list...

  • Page 3: Description

    1. Description The equipment is designed for the purpose of sucking water for field irrigation .The PTO water pump is designed to be driven by the power takeoff mechanism of a suitable tractor, via power takeoff (PTO) drive shaft. WARNING: Please read and save the Owner¡s Manual.

  • Page 4: General Safety Information

    General Safety Information Study these SAFETY RULES carefully before installing, operating or servicing this equipment. Become familiar with Operating Instructions and with the water pump. The water pump can operate safely, efficiently and reliably only if it is properly installed, operated and maintained. Many accidents are caused by failing to follow simple fundamental rules.

  • Page 5: Specifications

    3. Specifications Water pump PTOW3 PTOW4 PTOW6 Outlet size(inch) Itlet size(inch) Speed(rpm) 3600 3600 3600 Flow(m3/h) Lift(m) Suction(m) Power Needed(Hp) 15-125 or more 25-125 or more PTO Drive Speed(rpm) PTO Shaft 1-3/8" spline, 6-spline Gearbox Reduction single stage Ratio PTO Shaft to Revolving Field Speed 1 to 6.67...

  • Page 6: Operation

    （OPTIONAL） INSTALLING THE CONNECTOR PANELS According to the types of tractor, the connector panels are optional. As shown in Figure 3. Figure 3 ¨ Installing The Connector Panels（optional） GEARBOX LUBRICATION Before operating the water pump set, check gearbox oil level as outlined in "Maintenance" section on page 10.
  • Page 7 pump and tractor shafts must be parallel as viewed from the top and sides of the shaft. Maintain PTO shaft joint angles (Figure 2) equal and as small as possible. For Smoothest Operation Keep Tractor Shaft and Gearbox Shaft Parallel (Side and Top Views), Keep Joint Angles Equal &...

  • Page 8: Maintenance

    7. Fill priming water WARNING: Not allowed start water pump if water pump is not fill water fully. Not allowed start water pump if Gearbox box is not fill to proper oil level. STARTING THE WATER PUMP Follow these steps to start the water pump: 1.Fill water full to water pump.
  • Page 9 CLEAN THE WATER PUMP Keep the water pump set clean and free of foreign material. Please check pump after water pump stop on each time and clean pump if pump with foreign material. CHECK GEARBOX OIL LEVEL Check gearbox oil level before you first use it. Thereafter, check gearbox oil level every 10 hours of operation or once weekly, whichever comes first.
  • Page 10 6. Recheck all plugs. Make sure they are tight. 7. Start water pump and check for leaks. LUBRICATE POWER TAKEOFF (PTO) SHAFT Grease the PTO shaft frequently. Use a low pressure, grease gun filled with general purpose, lithium base grease to apply to grease fittings (Figure 7) at shaft universal joints. Also apply general purpose, lithium base grease to PTO shaft splines and to telescoping sections of shaft.

  • Page 11: Troubleshooting

    . Troubleshooting Symptom Possible Causes Corrective Action 1. Refill water into the pump 2. Check inlet pipe and connector of 1. Fill water is not enough pipe. change pipe or tighten the The pump can not do 2. Inlet pipe leakage screw pumping 3.

  • Page 12: Explosive View&Parts List

    Parts Diagram 10．...
