MODEL NUMBERS

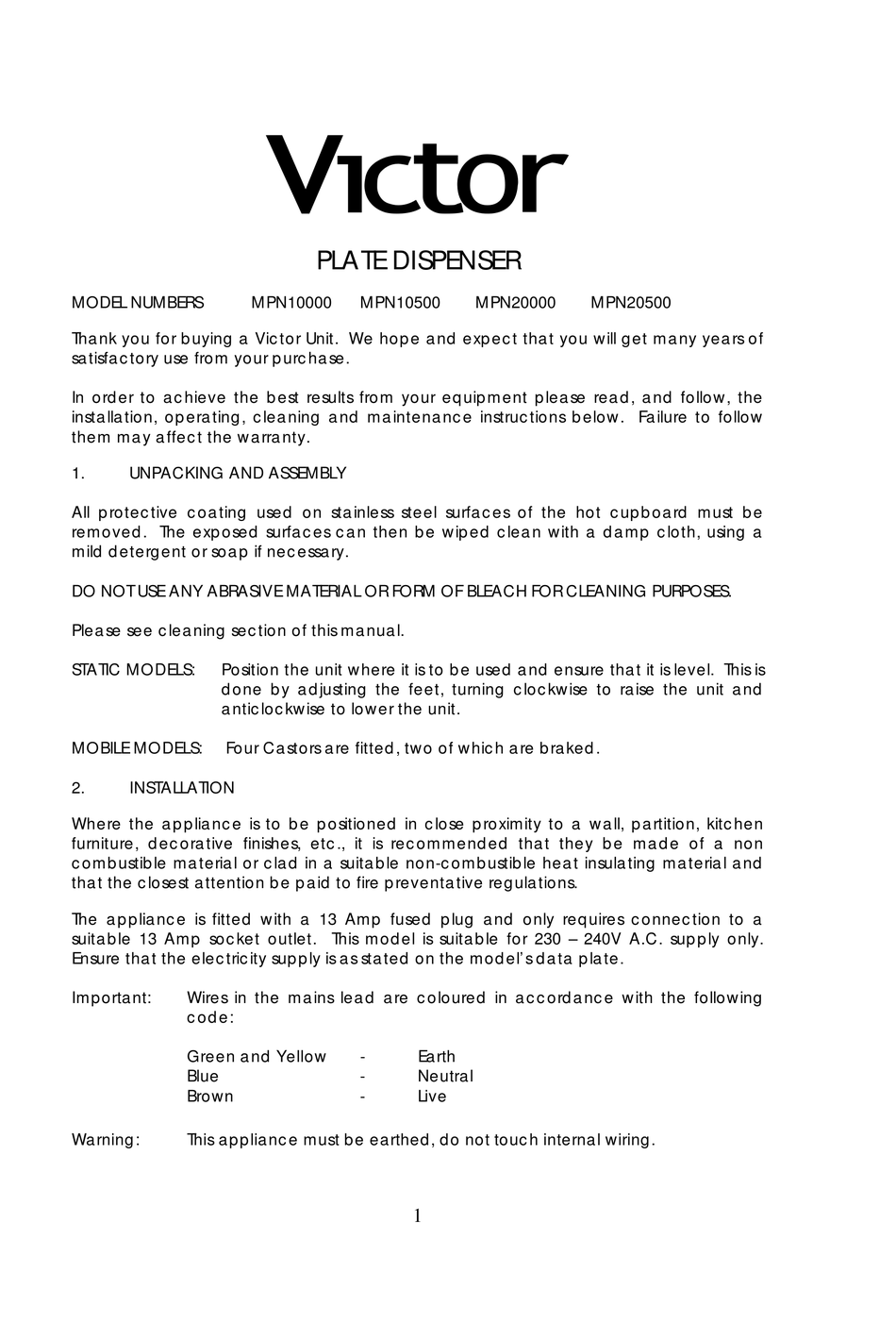

Thank you for buying a Victor Unit. We hope and expect that you will get many years of
satisfactory use from your purchase.
In order to achieve the best results from your equipment please read, and follow, the
installation, operating, cleaning and maintenance instructions below. Failure to follow
them may affect the warranty.
1.
UNPACKING AND ASSEMBLY
All protective coating used on stainless steel surfaces of the hot cupboard must be
removed. The exposed surfaces can then be wiped clean with a damp cloth, using a
mild detergent or soap if necessary.
DO NOT USE ANY ABRASIVE MATERIAL OR FORM OF BLEACH FOR CLEANING PURPOSES.
Please see cleaning section of this manual.
STATIC MODELS:
Position the unit where it is to be used and ensure that it is level. This is
done by adjusting the feet, turning clockwise to raise the unit and
anticlockwise to lower the unit.
MOBILE MODELS:
Four Castors are fitted, two of which are braked.
2.
INSTALLATION
Where the appliance is to be positioned in close proximity to a wall, partition, kitchen
furniture, decorative finishes, etc., it is recommended that they be made of a non
combustible material or clad in a suitable non-combustible heat insulating material and
that the closest attention be paid to fire preventative regulations.
The appliance is fitted with a 13 Amp fused plug and only requires connection to a
suitable 13 Amp socket outlet. This model is suitable for 230 – 240V A.C. supply only.
Ensure that the electricity supply is as stated on the model's data plate.
Important:
Wires in the mains lead are coloured in accordance with the following
code:
Green and Yellow
Blue
Brown
Warning:
This appliance must be earthed, do not touch internal wiring.
V
PLATE DISPENSER
MPN10000
MPN10500
-
-
-
MPN20000
Earth
Neutral
Live
1
MPN20500
