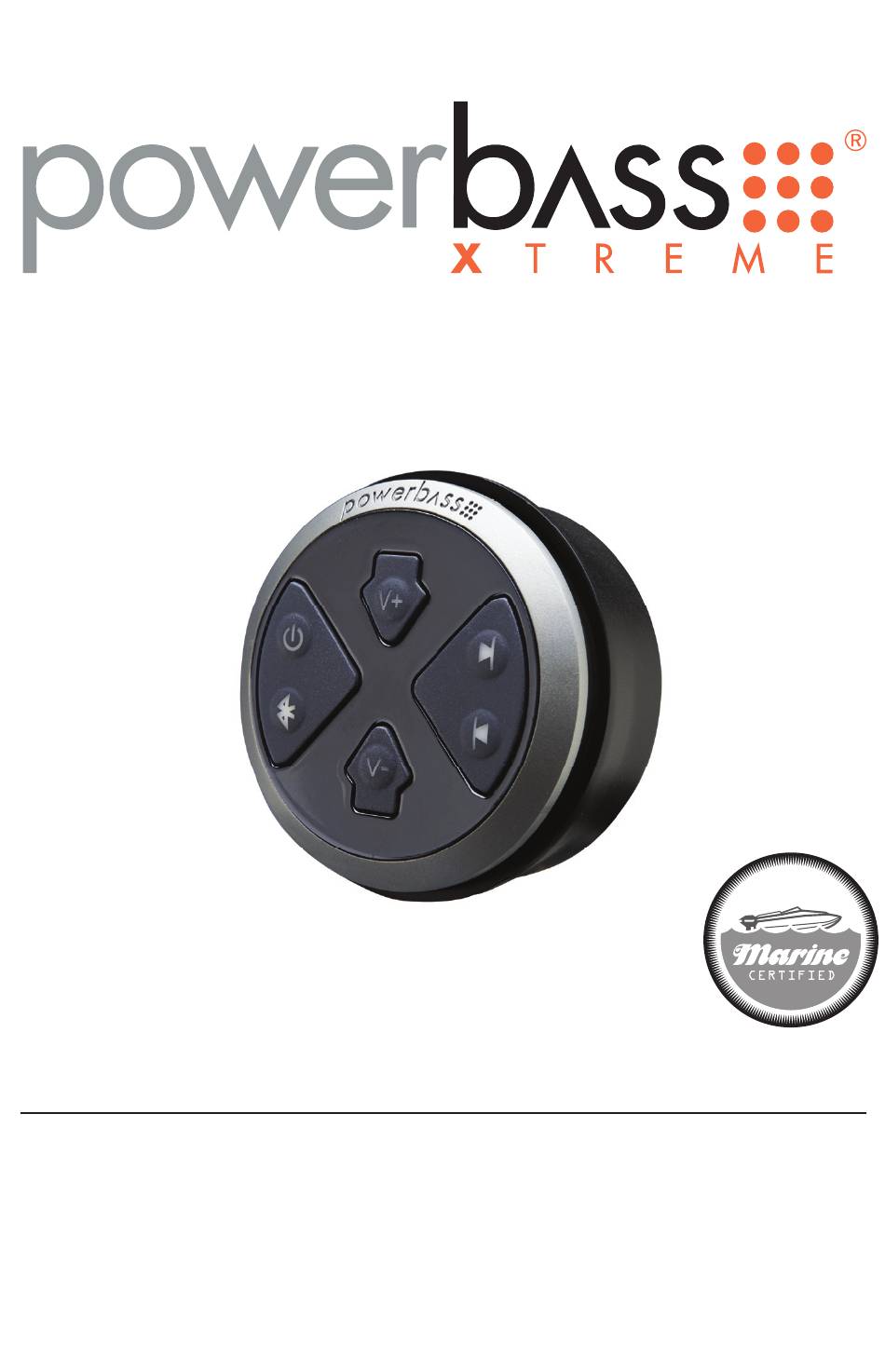

- Page 1 XL-SBCON WIRED SOUNDBAR CONTROLLER for XL-1000 and XL-800 Application Guide Please read through this manual to familiarize yourself with your new Controller. Should your PowerBass Xtreme Controller ever require service, you will need to have the original dated receipt.
- Page 2 Dimensions Fig.1 Fig.2...

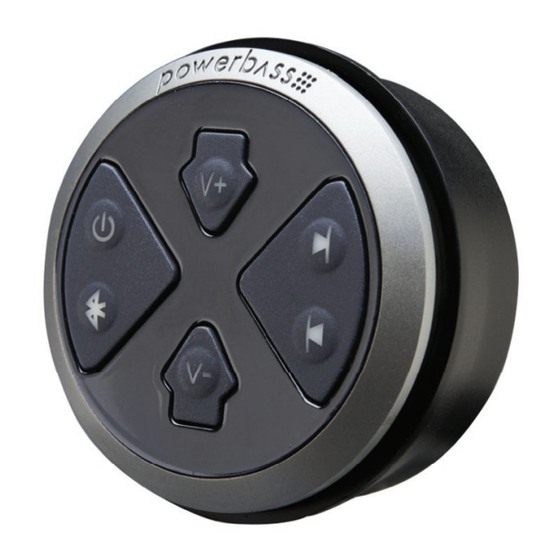

- Page 3 CONTROLLER LAYOUT AND OPERATION Fig.3 1) POWER/MUTE/PAUSE BUTTON Press and hold the button down for 3 to 5 seconds to power unit on/off. Press the button momentarily to pause the music in Bluetooth mode and once again to un-pause. Press the button momentarily once to mute the music in AUX mode and once again to un-mute. 2) VOLUME UP BUTTON Press the volume up button momentarily to raise the volume.
- Page 4 4) Route controller cable to the XL-800/XL-1000. Connect the other end of the waterproof cable to the side of the XL-800/XL-1000 external controller connector (fig. 4) hand tighten the cable. 5) Now you are able to control your sound bar from either location. Fig.4 External Controller Port for XL-SBCON...
- Page 5 Power Button. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2016 PowerBass USA, Inc.
- Page 6 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
