DVD / VIDEO CD / MP3 / CD - PLAYER
DVD105
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVD105 and is the answer not in the manual?

Questions and answers

Related Manuals for Califone DVD105

Summary of Contents for Califone DVD105

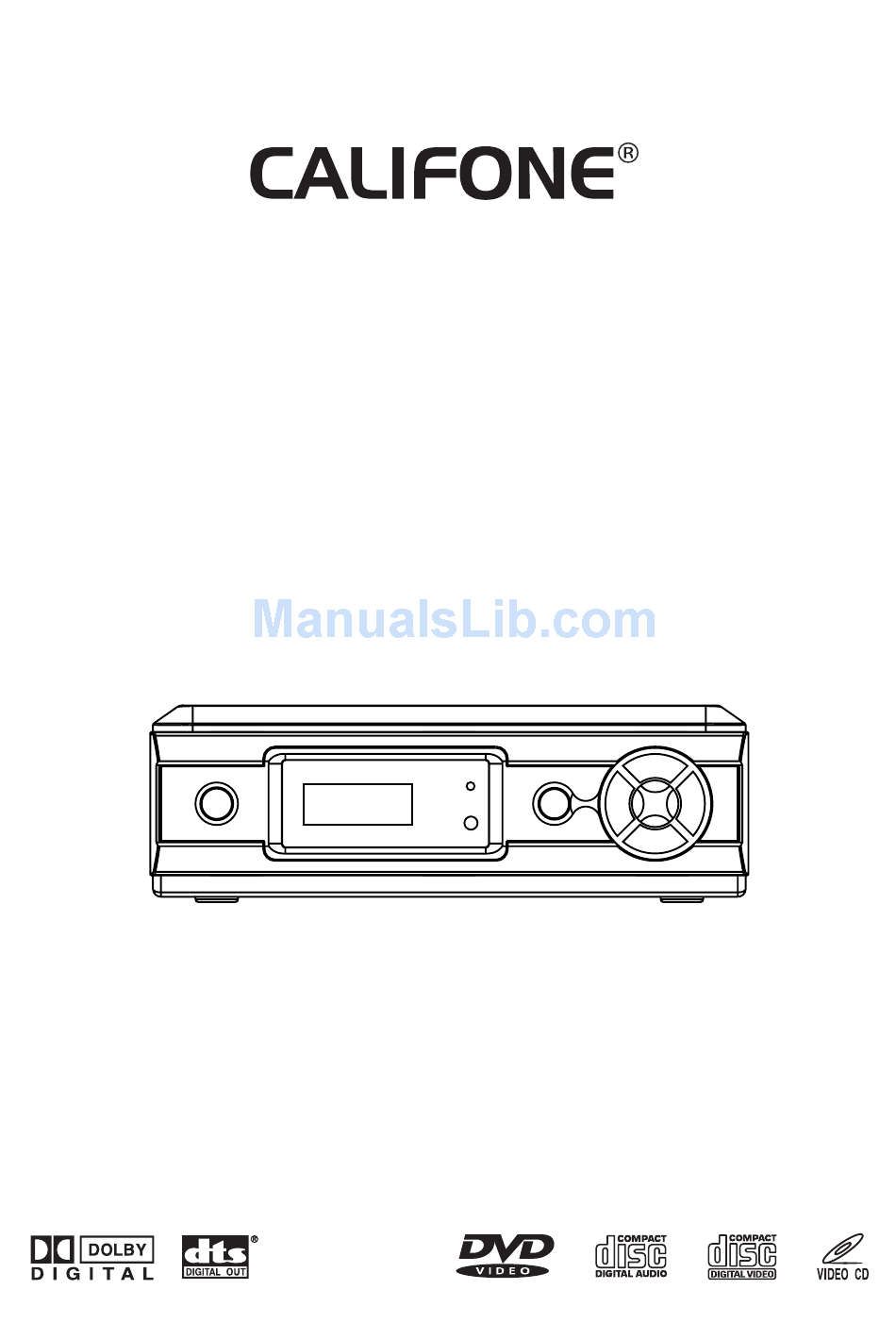

  • Page 1 DVD / VIDEO CD / MP3 / CD - PLAYER DVD105 OPERATION MANUAL...

  • Page 2: Safety Certification

    PLEASE READ THE INSTRUCTION CAREFULLY BEFORE OPERATING THIS UNIT. WARNING To prevent fire or shock hazard, do not expose this appliance to rain or moisture. IMPORTANT Since the CD circuitry may cause interference to other radio tuners nearby, switch this unit off when not in use or move it away from the affected radio tuner.

  • Page 3: Getting Started

    Dear customers : May we take this opportunity to thank you for purchasing this DVD player. We strongly recommend that you carefully study the operating instructions before operating the unit. Main Features •...

  • Page 4: Disc Types

    Note: CD-R, CD-RW Discs recorded with writing device can only be used when they are correctly treated. Region Management Information This DVD Player is disigned and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD player cannot play that disc.

  • Page 5: Safety Precautions

    Safety precautions Warning To avoid electrical shock, do not open the cabinet, refer servicing to qualified personnel only. Warning Keep the unit away from flower vases, tubs, sinks, etc. If liquids are spilt into the unit, seri- ous damage could occur. Warning Do not expose this equipment to rain or moisture.

  • Page 6: Fuse Replacement

    Getting Started Accessories Remote Control DC CAR ADAPTOR (Cigarette Adaptor) / CORD The supplied DC car adaptor/cord is designed for use with vehicles equipped with a 12 volt negative ground electrical system only. The equipment is compatible if the negative (-) terminal of the battery is connected to the vehicle’s metal body/chassis.

  • Page 7: Remote Control Unit

    Remote Control Unit GUI Button Numeric Buttons Shift Button Direction Buttons ( Up / Down / Left / Right ) Chapter Button Play Button Subtitle Button Fast Backward Button (FR) Angle Button Audio Button Program Button Mute Button Return Button Slow Button Repeat Button Fast Button...

  • Page 8: System Connection

    Getting Started System Connection Warning : Turn off the power and keep AC cord pulled out from the outlet when con- necting the system. AC OUTLET ON THE WALL TO AUDIO INPUT CONNECTOR (FRONT L/R) AUDIO VIDEO S-VIDEO DC 12V S-VIDEO CORD (OPTIONAL) ADAPTOR...

  • Page 9: Front Panel Control

    Getting Started Front Panel Control (Most of the function can be controlled by remote control unit.) Push for OPEN / CLOSE Phone Jack Phone Volume Control Power Switch (Standby ON/OFF) LCD Display ON/Standby LED Remote Sensor Play Button Skip Backward Button LCD Display 8 9 10 11 12...
  • Page 10 ) [18] The POWER button is used to toggle the DVD player standby mode and power on mode. In standby mode, make sure red LED is on; press the POWER button and the player will turn on, and LED will turn off, initialize, and begin to load the disc if there is a disc present.
  • Page 11 FR Button (Fast Reverse This button is used to scan backward through the audio and video at 3-level speeds as X2, X4 and X8. PLAY Button [6] This button is used to play the disc. STOP Button ( ) [25] This button is used to stop the playing of the disc.

  • Page 12: Dvd Player Operation

    Refer to the instructions supplied with your DVD or VCD disc. Each disc placed into the DVD Player has a built-in use interface that allows you to explore the information on the disc, such as the title and chapter information. In order to access that information, you must use the remote control or front panel.
  • Page 13 4. Press the PLAY button • When playing a DVD, a DVD menu or title menu may appear on the TV. • When playing a VCD/SVCD, a VCD/SVCD menu screen may appear, depending on the VCD/SVCD. • When playing a MP3/CD, a MP3/CD menu screen will appear. 5.

  • Page 14: Playing At Various Speeds / Frame By Frame

    - You change the settings of TV TYPE in SCREEN SETUP in the setup display - You change the settings of PARENTAL CONTROL in CUSTOME SETUP in the setup display. • If you do not want to continue playing the disc, to save electricity either, press the POWER button on the player to turn the power off, or press the POWER button on the remote control unit to set the power to the standby mode.

  • Page 15: Using The Menus

    A DVD is divided into long sections of a picture of music piece called Chapters. When you play a DVD that contains several chapters, you can select the title you want using the chapter menu. to use the chapter feature on your DVD player. 1. Press the SHIFT button •...

  • Page 16: Using The Gui Screens

    1. In the play or stop mode, press the GUI button The GUI (Graphical User Interface) screen appears. The GUI will be different for different discs. The functions of the DVD Player are similar for DVD, SVCD, VCD and CD discs. •...
  • Page 17 THE ITEMS DISPLAYED DIFFER FROM DISC TO DISC DVD GUI TITLE Displays the current title. Use the " " "/ " " button to select the required title. Press ENTER to confirm the selection. CHAPTER Displays the current chapter. Use the " the "...
  • Page 18 SVCD / VCD GUI TRACK Displays the current track. Use the " " "/ " " button or number buttons ( 0 to 9 ) to select the required track. Press ENTER to confirm the selection. TIME Displays the current time. Use the " 00:00:00.

  • Page 19: Settings And Adjustments

    SETTINGS AND ADJUSTMENTS This chapter describes how to set and how to adjust using the on-screen SETUP menu. Most setting and adjustments are required to be set when you first use the player. USING THE SETUP DISPLAY Using the setup display, you can do the initial setup, adjust the picture and sound quality, and set the various outputs.
  • Page 20 SETTING FOR VIDEO Select VIDEO after pressing the SETUP button. • The VIDEO SETUP allows you to set the display according to the playback conditions. System Settings The TV system menu allows the user to specify the display configuration of the TV monitor. Use RETURN and the " buttons to select the appropriate settings.
  • Page 21 SETTING FOR RATING (PARENTAL CONTROL) This section of the SETUP Menu allows users to control the content of movie playback from 1 (Children) to 8 (Adult). Limiting Playback by Children (Parental Control) Select CUSTOMER SETUP after pressing the SETUP button. The Parental Control function allows you to set a playback limitation level.

  • Page 22: Specification

    SPECIFICATION Power source (AC/DC Adaptor) Power consumption Laser Signal System Output Digital audio output Phone Jack S-video Video Audio Audio characteristics Frequency S/N ratio Dynamic range Total harmonic distortion Operating status Accessories Dimension Weight * Design and specification are subjuect to change without notice. Manufactured under license from Dolby Laboratories.

  • Page 23: Troubleshooting

    • Insert a disc. (Check that the DVD or audio CD indicator in the DVD display is lit.) • Select the appropriate video input mode on the TV so the picture from the DVD player appears on the TV screen. • Connect the video cable into the jacks securely.
