Summary of Contents for Propel Trampolines P1106-0010

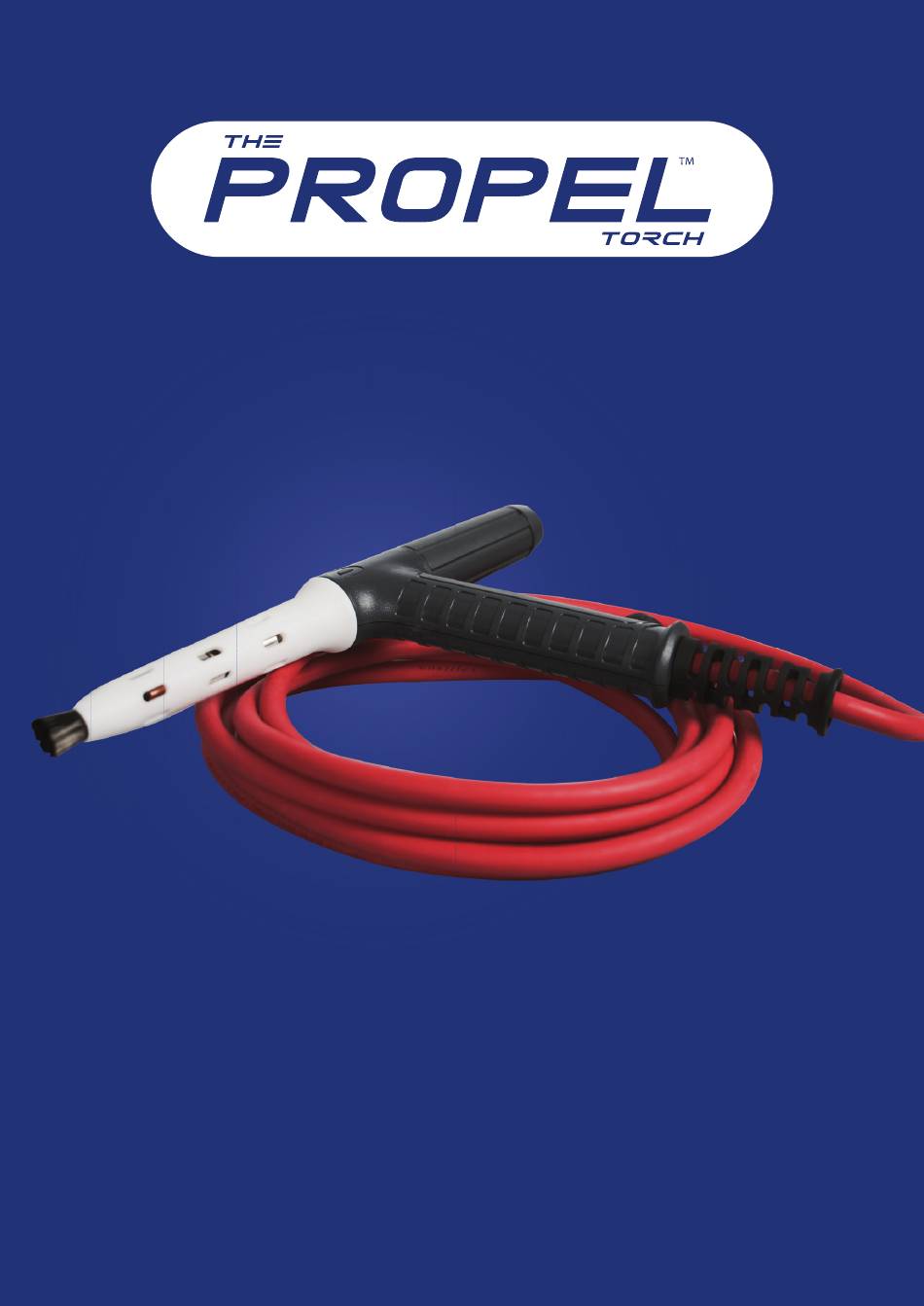

- Page 1 HIGH PERFORMANCE CLEANING INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Contents Introduction....................3 Installing & Replacing the Brush..............4 Operating the PROPEL Torch................5 PROPEL Torch Care..................6 Replacing the Collet Assembly................7 Consumables & Replacement Parts..............9 TIG Brush Accessories.................10... -
Page 3: Introduction
Introduction Congratulations on purchasing a new TIG Brush PROPEL Torch. We expect this will provide you with many years of Stainless Steel weld cleaning satisfaction. Take the time to read through this instruction manual before operating your new PROPEL Torch. This will ensure that the tool performs at its peak at all times, whilst operating within the recommended safety parameters. -
Page 4: Installing & Replacing The Brush
Installing & Replacing the Brush 1.To install or replace the Brush, turn the Drive Sleeve clockwise until it stops. Do NOT overwind the Drive Sleeve! 2. Insert the brass end of the Brush into the nose of the Shroud until it is seated in the Collet. -
Page 5: Operating The Propel Torch
Operating the PROPEL Torch Turn the Drive Sleeve clockwise to adjust the length of the Brush protruding from the Shroud. For optimal performance, 1/2” – 5/8” of the Brush is only required to be exposed. 1. Dip the Brush into the Weld Cleaning fluid, making sure the Brush is soaked. 2. -
Page 6: Propel Torch Care
PROPEL Torch Care The PROPEL Torch, Collet Assembly and Brush must be kept clean to provide trouble-free service. Regular cleaning of the PROPEL Torch will prolong the service life of the components. 1. At the end of use, remove the Brush and the Shroud as previously described and rinse with clean water. -
Page 7: Replacing The Collet Assembly
Replacing the Collet Assembly The PROPEL Collet is a consumable item which may last for approximately 20 Brushes. Replacement Collet Assemblies are supplied with a Spring which should be replaced with the Collet. 1. Remove the Brush as previously described from the PROPEL Torch. 2. - Page 8 5. Fit the new Spring over the Collet inside the Closing Sleeve (see figure 4) and screw the Collet thread through the Spring Retainer and into the Spindle (see figure 5). Spring Final Assembly Closing Sleeve Collet Figure 4 Figure 4 Figure 5 Figure 5 6.
-
Page 9: Consumables & Replacement Parts
The following replace- ment parts are available. 1. PROPEL Torch Brushes (10 pack) Re-order code: P1106-0010 2. PROPEL Torch Collet (1 pack) Re-order code: K-PROPL-CSPck-0001 3. PROPEL Torch Collet (5 pack) Re-order code: K-PROPL-CSPck-0005 4. -
Page 10: Tig Brush Accessories
TIG Brush Accessories TIG Brush components and accessories are designed and manufactured to Ensitech’s specifications, ensuring complete compatibility with the TIG Brush weld cleaning system. This offers both, flexibility and control of your cleaning requirements. For maximum safety, performance, and to maximise the value of your investment in TIG Brush technology, you should insist on genuine TIG Brush accessories and consumables from your local supplier. - Page 11 Notes...
- Page 12 What is TIG Brush Technology? The TIG Brush Stainless Steel Weld Cleaning System uses a unique combination of electricity, heat and chemistry to deliver superior results in weld cleaning and metal surface finishing. Driving the TIG Brush is Ensitech’s Dynamic Power Transfer®. This patented technology maximizes the efficiency of heat transfer to the work surface and ensures optimum performance in demanding operating conditions.
