Teka Intra Endura ED2DF Installation

Drink. fountain ED2DF
Art. no. ED2DF
GTIN 7055570014226
Overall dimension in mm
Depth in mm
Material
Material thickness in mm
Installation height in mm
Product load in N
Gross weight in kg
Weight, pallet
Pcs per pallet
Made in
www.intra-teka.com
POLISHED
331 x 338 x 236
106
AISI 304
1,25
900 / 700 / 500
1000
4.50
106.00
18
Norway
FDV Revision 20151215

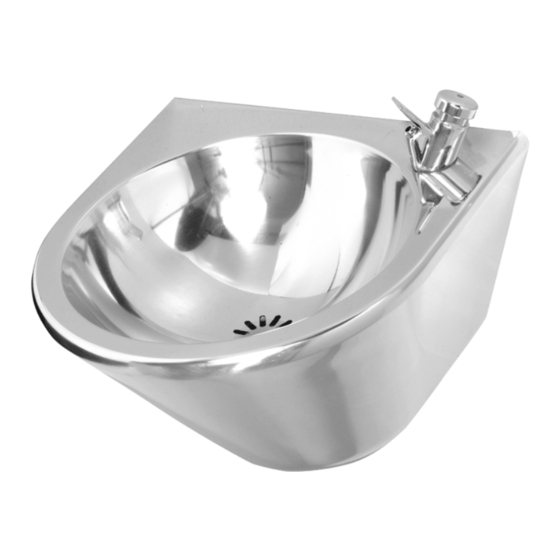

Description
Vandal resistant drinking fountain in stainless steel
18/10, for wall mounting. With closed shroud for
concealed in- and outlet. Supplied with integrated
waste, water trap water bubbler.
Installation
Fasten the top and bottom bracket to the wall
according to the enclosed drill template. Fix the
bubler and connect to water. Connect the water trap
to the outlet in the wall with a 32mm push fit tube
(Not supplied). Fix the drinking fountain onto the top
fixing bracket and lock it with the 2 headless screws to
the bottom fixing to secure the fountain to the wall.
