CS18-007
Aug. 2018
Ref # :

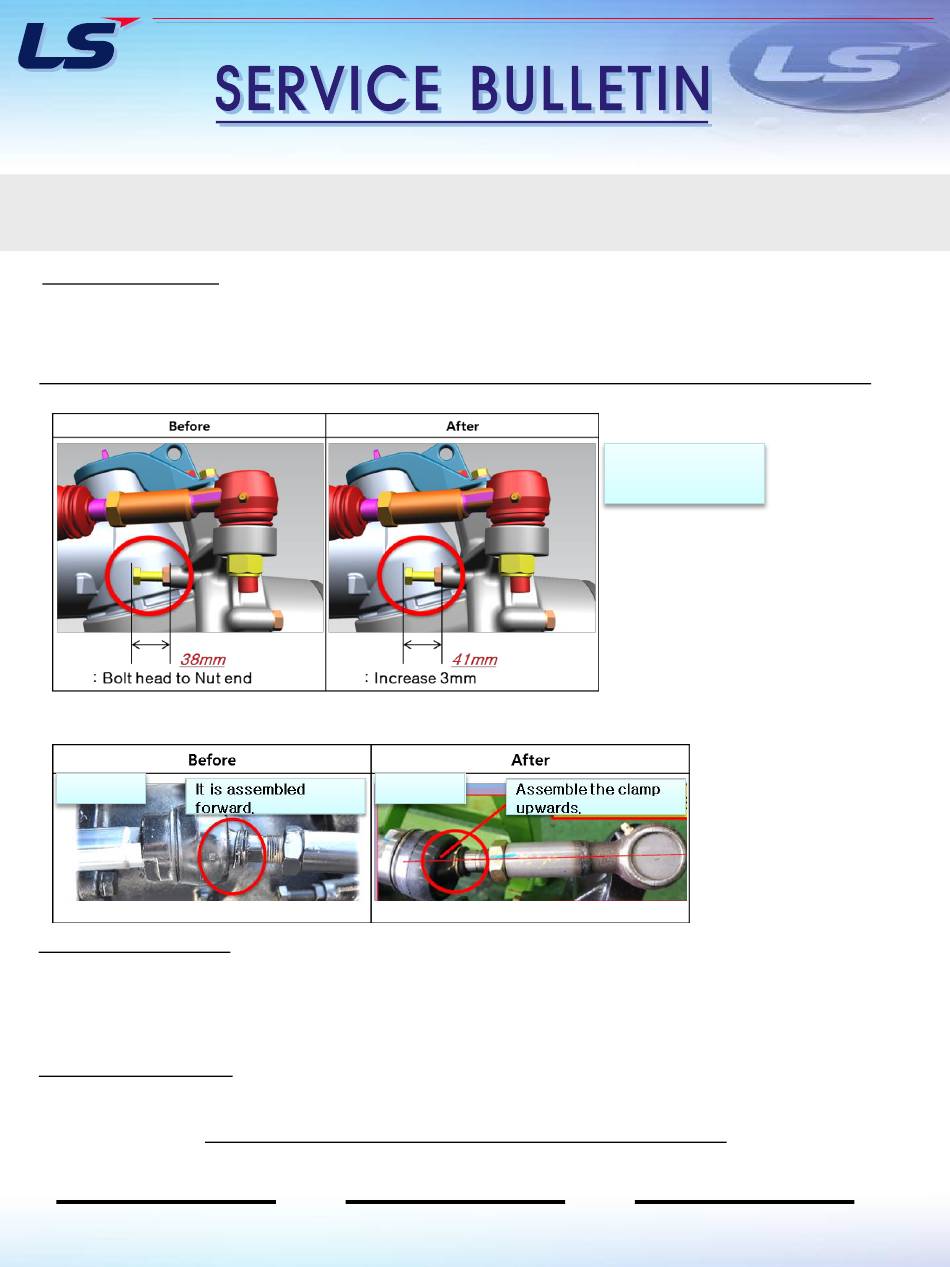

SUBJECT : To prevent MT3 Tie-rod Interference
MODELS AFFECTED : MT345E, MT350E
1. DESCRIPTION :
1) For improvement of tie-rod, we did change the stopper length setting (+3mm)
2) Assemble the clamp upwards
2. Action : See attached page for instructions on how to modify. (attachments #1)
1) Adjust the stopper length
2) Assemble the clamp upwards. : Check the direction of the clamp.
Top view
3. Effected Model :
- MT345E : 2323000002 ~ 2323000242
-
MT350E : 2324000002 ~ 2324000280
4. Warranty Status :
- Use below labor code and submit the warranty claim.
- Labor code : G610S01-101 End Ball & Tie Rod – replace (0.3 hrs)
Charge:
HS Oh
Top view
Check:
JE Kim
1/1
38mm = 1.50 inch
41mm = 1.61 inch
APPR: JE Kim
Leading Solution LS TRACTOR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LS CS18-007
Summary of Contents for LS CS18-007
- Page 1 4. Warranty Status : - Use below labor code and submit the warranty claim. - Labor code : G610S01-101 End Ball & Tie Rod – replace (0.3 hrs) Charge: HS Oh Check: JE Kim APPR: JE Kim Leading Solution LS TRACTOR...
-
Page 2: Adjustment Manual
Attachment #1 LS TRACTOR ADJUSTMENT MANUAL TIE-ROD CLAMP AND STOPPER BOLT APPROXIMATE ADJUSTMENT TIME: 0.3 hours Issue date AUG. 2018 Rev. 01 (ENG) Leading Solution LS TRACTOR... - Page 3 TIE-ROD BOLT AND STOPPER BOLT ADJUSTMENT LS Tractor MT3E gear Leading Solution LS TRACTOR...
-
Page 4: Safety Information
Throughout this manual you will find the word Note followed by additional information about a step, procedure, or other information in the manual. The word Note is not intended to address personal safety or property damage. Leading Solution LS TRACTOR... -
Page 5: Tool List
2 – TOOL LIST – TOOL LIST Tool list Tool name Plier 17mm spanner Ruler Leading Solution LS TRACTOR... -
Page 6: General Information
NOTE: Install flat washers over all slotted holes unless truss-head or carriage bolts are used. Install a lock washer on all bolts unless a jam nut or self-locking nut is specified. NOTE: Install special hardened washers where specified. Leading Solution LS TRACTOR... - Page 7 13.When transporting on a road or highway, use accessory lights and devices for adequate warning to the operators of other vehicles. In this regard, check local government regulations. Various safety lights and devices are available from your LS Tractor dealer. 14. Practice safety 365 days a year.
- Page 8 1. Check the direction the clamp. Front view Top view 2. Turn the clip so that the direction of the clamp matches the top of the tie-rod end. 3. To do the same job on right tie-rod. Leading Solution LS TRACTOR...
- Page 9 Failure to comply could result in death or serious injury. 1. Measure the length of the stopper bolt. 38mm (1.50 inch) 38mm 2. Loosen the M12 locking nut. 3. Loosen the stopper bolt so that the length of the stopper bolt is 41mm. (1.61inch) 41mm Leading Solution LS TRACTOR...
- Page 10 5 - ASSEMBLY 4. Tighten the M12 locking nut. 5. Check again that the length of the stopper bolt is 41 mm. (1.61inch) 6. To do the Same job on right stopper bolt. 41mm Leading Solution LS TRACTOR...
- Page 11 All data given in this publication is subject to production variations. Dimensions and weight are approximate only and the illustrations do not necessarily show products in standard condition. For exact information about any particular product, please consult your LS Tractor USA Dealer. Issue date AUG. 2018 Rev. 01 (ENG)
