LMI Professional Guitar Carrier
Features
•
A new solid, adjustable, compact guitar carrier design
•
Each carrier has four adjustable arm assemblies and each arm has three axis of
freedom for great flexibility to fit a range of guitar body shapes including cutaways
•
Each arm riser has three solid points of cushioned guitar support – two vertical
stanchions and a horizontal traveler with a precision height adjuster and lock
•
For even greater flexibility, shorter arms can be substituted to support smaller
body shapes
•
The carrier slides on slippery HDPE components for smooth movement
•
Designed, manufactured, and assembled in USA

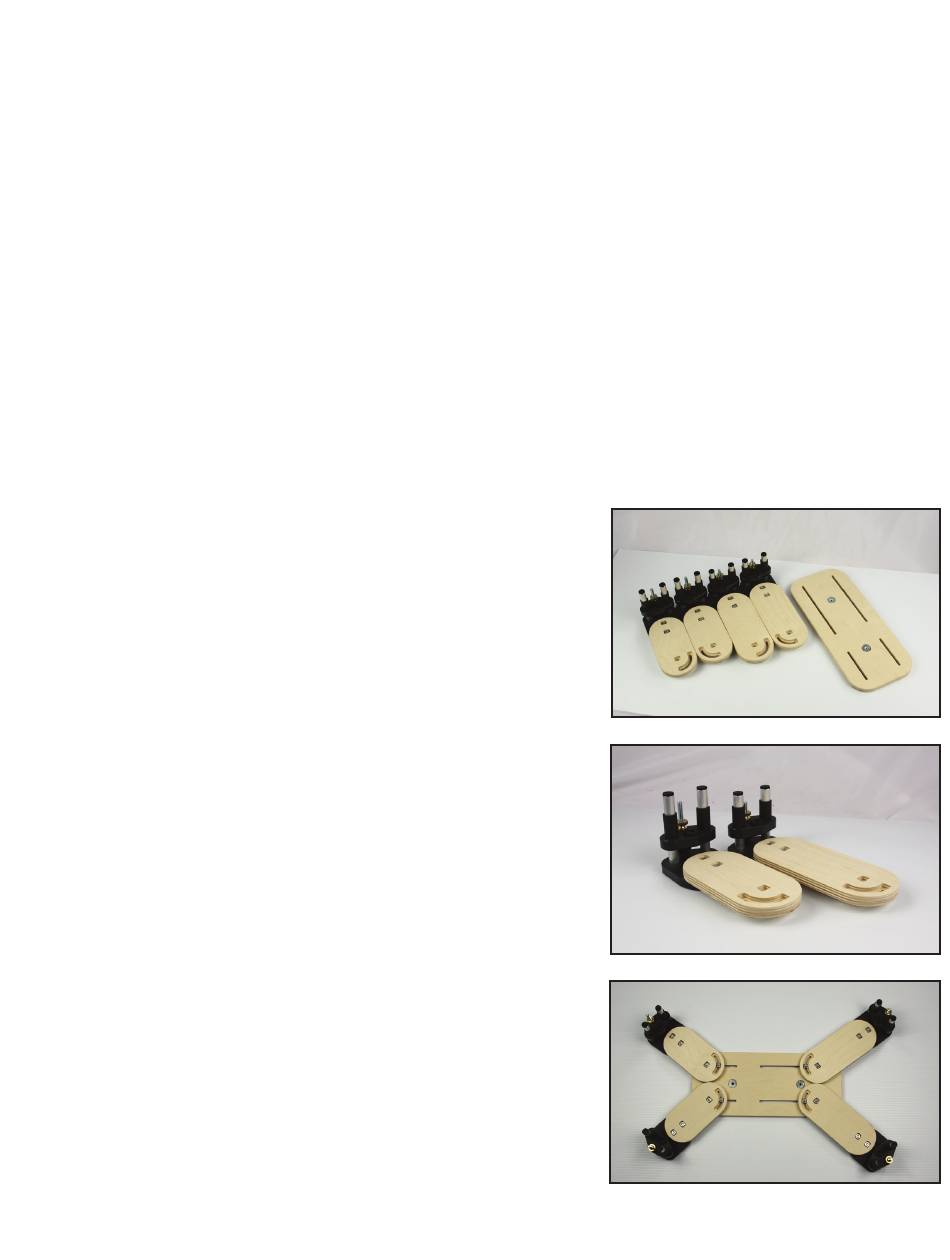

Guitar Carrier Instructions
Assembly
The guitar carrier is a central base and four ad-
justable arm assemblies (two sets each). The up-
per bout arm assembly has taller stanchions with
shorter plywood arms and the lower bout arm
assembly has shorter stanchions with longer
plywood arms (photo 1, 2)
Attach the four arm assemblies to the base in the
following steps: Match the arm assemblies to the
base. (photo 3). Note: the base screw pockets are
facing down. Place one of the arms over its respective
slot and push two 10-24 x ¾" screws from below
into the arm. Attach with 10-24 square nuts.
Attach the other three arm assemblies to the base.
1
2
3
