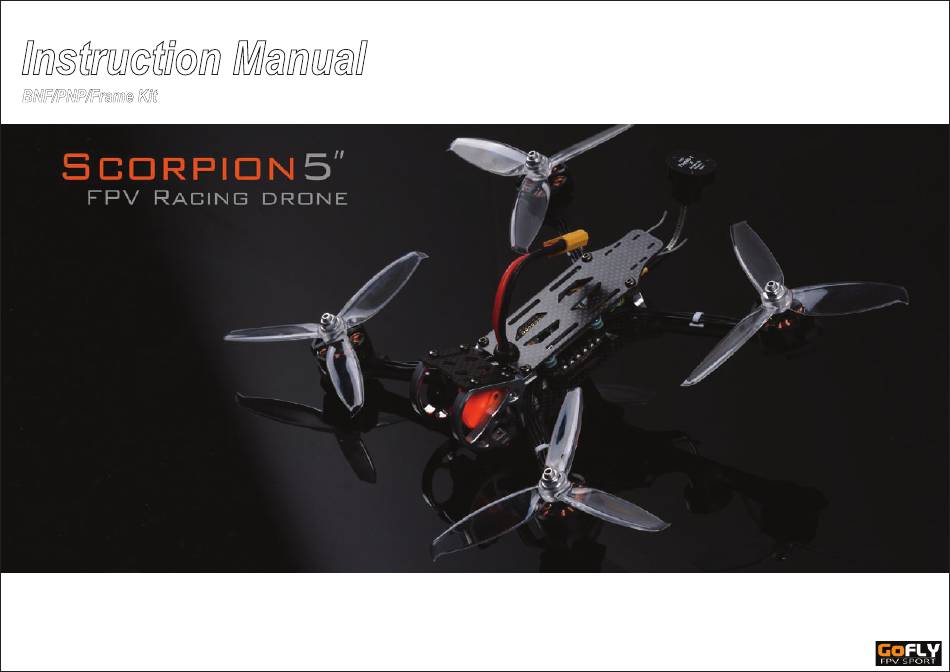

Instruction Manual
BNF/PNP/Frame Kit
NOTICE: Consult local laws and ordinances before operating FPV (fi rst person view) equipment. In
some areas, FPV operation may be limited or prohibited. You are responsible for operating this product
in a legal and responsible manner.
Age Recommendation: Not for children under 14 years. This is not a toy.
Advertisement
Table of Contents
Summary of Contents for GoFly Scorpion 5"
- Page 1 Instruction Manual BNF/PNP/Frame Kit NOTICE: Consult local laws and ordinances before operating FPV (fi rst person view) equipment. In some areas, FPV operation may be limited or prohibited. You are responsible for operating this product in a legal and responsible manner. Age Recommendation: Not for children under 14 years.
-
Page 2: Safety Precautions And Warnings
Safety Precautions and Warnings Age Recommendation: Not for children under 14 years.This is not a toy. Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control. -
Page 3: Flight Preparation
4> Betaflight and Radio settings Flight Preparation Set the minimum range smaller than 1100 Please prepare other equipment not included in this kit Roll Transmitter, receiver, battery, FPV goggle, USB cable. Pitch 1>Binding the quad receiver to a radio Throttle Installation receiver Set the maximum range bigger than 1900 Binding receiver and transmitter... - Page 4 ESC4 BATT+ ESC3 ESC Detail BATT+ ESC2 ESC1 IN PUT CURRENT Specifications: Continuous Current: 35A-MAX45A Voltage Range: 2-5S LiPo Motor 2 Motor 1 Weight: 11g Mounting Size: 30.5X30.5mm Motor 4 Motor 3 Firmware: BLHeLi_32BIT Dshot Oneshot Multishot: Supported Flight controller Detail VTX Voltage F4 (STM32F405) Processor Gyroscope: MPU6000...
-
Page 5: Video Transmitter
Video Transmitter Specifications: Input voltage: 6V to 28V (2S - 6S) VBat Button menu structure Power Output:5V for Camera @ 0.5A max Remote software protocol:SmartAudio V2.0 Output Power:14dBm (25mW) 23dBm (200mW*) Pit mode: Activate: press button during powered up. LED: red Deactivate: Men u Table ... - Page 6 Video System Detail Image Sensor 1/3″SONY SUPER HAD II CCD Horizontal Resolution 600TVL Lens 2.5mm (Default) / 2.3mm / 2.1mm Signal System PAL/NTSC Integrated OSD Integrated MIC S/N Ratio >60dB (AGC OFF) Electronic Shutter Speed PAL: 1/50~100,000; NTSC: 1/60~100,000 Auto Gain Control (AGC) Back Light Compensation (BLC) Min.
