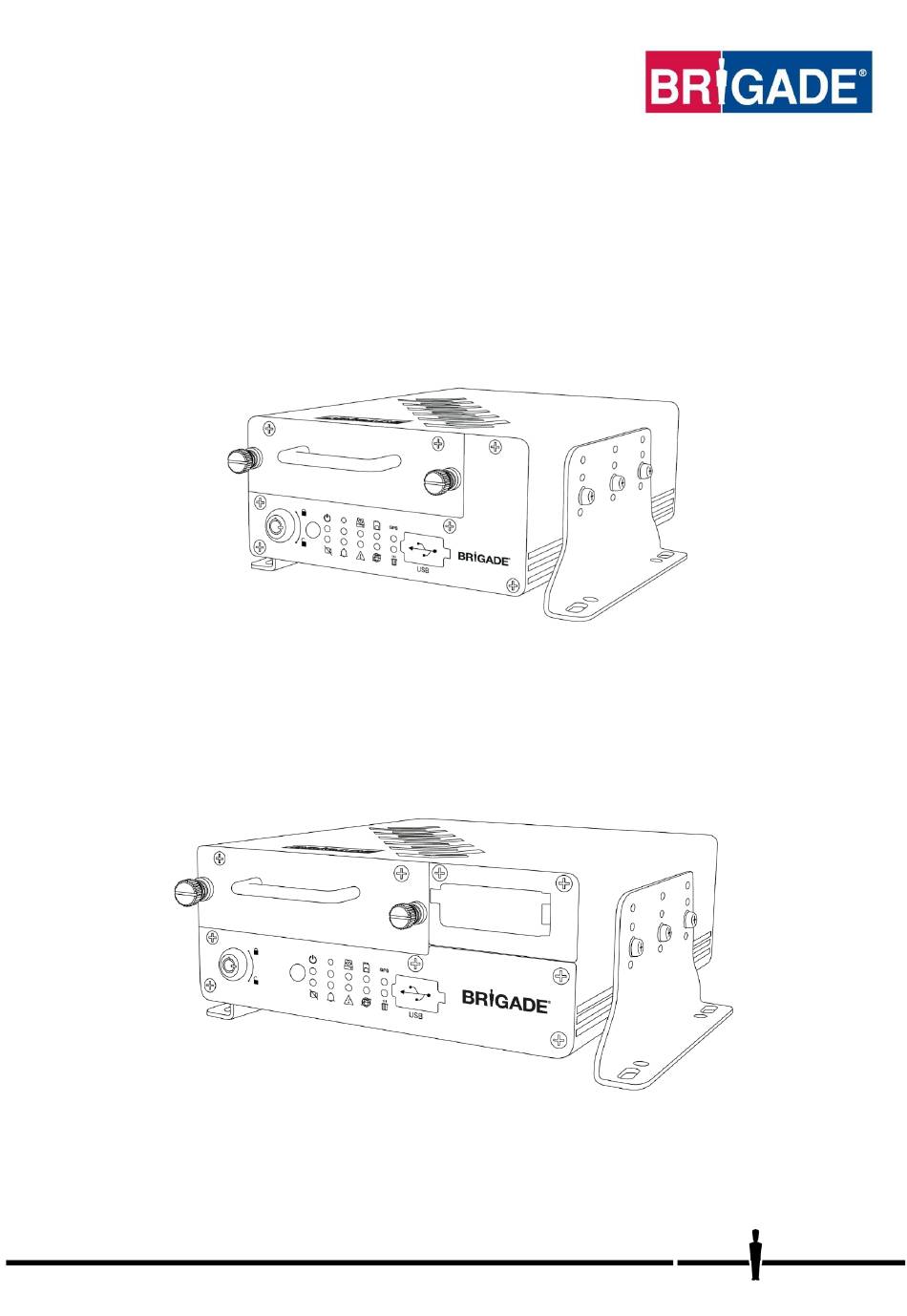

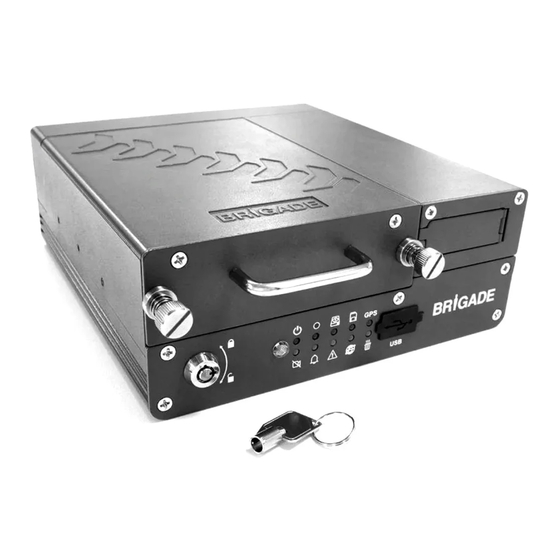

Mobile Digital Recorder
MDR-504XX-XXXX
MDR-508XX-XXXX
Installation and Operation Guide
Please refer to www.brigade-electronics.com for the latest version of this manual
Installation Guide 5145B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDR-504 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Brigade MDR-504 Series

Summary of Contents for Brigade MDR-504 Series

  • Page 1 Mobile Digital Recorder MDR-504XX-XXXX MDR-508XX-XXXX Installation and Operation Guide Please refer to www.brigade-electronics.com for the latest version of this manual Installation Guide 5145B...

  • Page 2: Table Of Contents

    Table of Contents 1 Introduction to MDR 500 Series Technology Mobile Network 1.1 Product Features Wi-Fi Differences between MDR-504XX-XXXX and MDR- 508XX-XXXX 8.3 Server Status Common to MDR-504XX-XXXX and MDR-508XX- 8.4 Environment XXXX 8.5 Storage 2 Kit Contents 8.6 History 2.1 MDR-504XX-XXXX and MDR-508XX-XXXX Kits 9 MDR-Dashboard 5.0 MDR-504XX-XXXX...

  • Page 3: Introduction To Mdr 500 Series Technology

    To complete firmware upgrades, configuration imports/exports and video exports a bus-powered hub (minimum 2 ports) is required. It is imperative that Brigade MDRs are fitted and commissioned by competent and trained technicians. The installers are responsible for the correct setup of the overall system and must adhere to relevant regulations and legislation.

  • Page 4: Product Features

    Product Features Differences between MDR-504XX-XXXX and MDR-508XX-XXXX MDR-504XX-XXXX MDR-508XX-XXXX 500GB / 1TB / 2TB (2TB maximum) 2.5” HDD with anti-vibration 1TB / 2TB (2TB maximum) 2.5” HDD with anti-vibration mounting mounting Industrial grade 32GB (256GB maximum) internal SD card for Industrial grade 64GB (256GB maximum) internal SD card for mirror, sub-stream and alarm recording mirror, sub-stream and alarm recording...

  • Page 5: Mdr-508Xx-Xxxx

    MDR-508XX-XXXX MDR 500 Series 8 Channel Control Unit with 1 TB / 2 TB HDD, GPS, 4G, Wi-Fi & 64GB SD Card (Depending on model) MDR-508XX-XXXX-CU Common for MDR-504XX-XXXX and MDR-508XX-XXXX MDR GPS Antenna MDR Mobile Network Antenna MDR Wi-Fi Antenna MDR Input / Output Cable MDR-ANT-GPS-01 MDR-ANT-MOB-01...

  • Page 6: Sd Cards

    MDR Fireproof Box with 32GB SD Card MDR-400-FPB-32 Hardware Installation Warning • Connecting any input or output wires to high voltages may damage the product. Brigade will not be responsible for any damage caused due to negligence. Front View MDR-504xx-xxxx Front View...

  • Page 7: Mdr-508Xx-Xxxx Front View

    Power – Blue LED Heater - Yellow LED ON: HDD Heater is on ON: Power on or sleep mode OFF: HDD Heater is off OFF: Power off Recording – Green LED HDD - Blue LED ON: HDD detected Flashing: HDD recording Flashing: HDD is reading or writing OFF: HDD not recording OFF: HDD is not detected...

  • Page 8: Mdr-508Xx-Xxxx Rear View

    MDR-508XX-XXXX Rear View 8 Channel Connector SELECT (Mobile Type network Camera and Wi-Fi Connectors depending on model) Not Used Input / Output Fireproof Box Power Cable Ethernet Port Cable Connector Connector Connector MDR-508XX-XXXX Rear View Figure 4 Mobile Caddy Unit (MCU Contains HDD) MDR-500-XXXX MCU Connector to Docking Station USB-B 3.0 PC Connection...
  • Page 9 Power – No Function Number Keypad Used for either entering numerical values or to trigger individual camera views. Button 0 is used to either enter Navigation buttons are used browsing numerical value or to trigger split the OSD.Left Mouse Button views in the following order: CH.1-4;...

  • Page 10: Mdr-504Xx-Xxxx Connection Diagram

    MDR-504XX-XXXX Connection Diagram MDR-504XX-XXXX Connection Diagram Figure 8...

  • Page 11: Mdr-508Xx-Xxxx Connection Diagram

    MDR-508XX-XXXX Connection Diagram MDR-508XX-XXXX Connection Diagram Figure 9...

  • Page 12: Mobile Caddy Unit Removal

    Mobile Caddy Unit Removal Warning: Follow the removal steps shown below. Failure to do so over a prolonged period may damage the HDD. Ensure that the PWR LED indicates the MDR is OFF prior to removal. No need to format HDD/SD card after swapping, all MDR models are sharing the same file system, previous records will be kept safely in the storage medium.

  • Page 13: Sd Card Removal

    SD Card Removal Note: To remove an SD card from an MDR, the MCU needs to be removed first (see SD Card removal for MDR-504XX-XXXX Figure 12 and SD Card removal for MDR-508XX-XXXX Figure 13). MDR-504XX-XXXX SD Card Removal Step 1 Unlock the MCU using the key and confirm the PWR LED is OFF Step 2...

  • Page 14: Mdr-508Xx-Xxxx Sim Card Installation/Expansion Module Upgrade

    MDR-508XX-XXXX SIM card Installation/Expansion Module Upgrade Step 2 Step 1 Ensure an earthing strap is worn to prevent any Remove the MCU and open the expansion damage to the PCB. Undo the screw on the module door to access the SIM card slot. rear panel (shown above left).

  • Page 15: Mdr On-Screen Display (Osd)

    MDR On-Screen Display (OSD) This chapter describes the configuration of the MDR. Brigade’s 500 Series MDR displays a start-up screen. See MDR Initialisation Screen Figure 16. During this period, the MDR completes a disk check which helps in identifying any file errors or bad sectors.

  • Page 16: Login

    Login By default, there are two user accounts: admin and user. The password for the admin account is admin. The password for the user account is user. We recommend changing the password after first login which must be documented and controlled by the company. Monitors should scale the MDR video output automatically, but some monitors do not do this.

  • Page 17: Record Search

    Record Search Rec Search allows you to search based on source, type, channel, date, month, year and time. Source can be selected to retrieve the data. This can be HDD, Sub- stream SD or Main Stream SD. By default, HDD is selected. HDD recording represents higher quality recordings found on the HDD.

  • Page 18: Log Search

    Enter the end time of your export and click End time. See End Time Export Figure 31. The duration and estimated capacity will be displayed. See Export Estimate Figure 32. Once the start and end times are correct, insert a bus- powered USB hub into the MDR front USB.

  • Page 19: Setup

    Setup This chapter describes the setup of the MDR. Settings related to basic setup, surveillance, events, alarms and maintenance. All settings are contained in the MDR Docking Station (DS). This means that Mobile Caddy Unit (MCU) swapping is easily supported if vehicle registrations are completed.

  • Page 20: Time Setup

    Time Setup 7.1.2.1 General Date Format can be set to either DAY/MONTH/YEAR, YEAR-MONTH-DAY or MONTH/DAY/YEAR. By default, it is set to DAY/MONTH/YEAR. Time Format can be either 24 Hours or 12 Hours. By default, it is set to 24 Hours. Time Zone includes worldwide time zone options.

  • Page 21: User Setup

    10:03 Ignition removed 10:00 10:12 MDR Shutdown Delay MDR on for 2 mins MDR Shuts down MDR Shutdown delay = 4 mins + 5 mins set to 5 mins 10:11 10:00 10:06 Ignition removed MDR Shuts down MDR Shutdown delay = 0 min + 5 mins MDR on for 6 mins Timer From becomes active once an On/Off Mode that includes timer is chosen.

  • Page 22: Network

    Network 7.1.5.1 Ethernet There are two modes available for Ethernet adaptor addressing, DHCP and Static. DHCP Mode refers to the Ethernet adaptor of the MDR obtaining an IP address automatically from the network. Static IP is used to specify the exact network details you would like the MDR Ethernet adaptor to use.
  • Page 23 Network and Wi-Fi. This is discussed in further detail in MDR 500 Series Network Connectivity SW&Infrastructure Manual. This can be found on the Brigade website. MDR Server IP Public IP address of the firewall which forwards any traffic to the server PC or IP address of the server PC hosting the MDR Wi- Fi Server.

  • Page 24: Application

    Application 7.1.6.1 FTP Server FTP Enable is for set up an FTP server for storing snapshots. The FTP is used for build up a channel between software and MDR hardware, which allows users download footage or snapshot through MDR-Dashboard 5.0. Recommend to enable it all the time.

  • Page 25: Record

    PAL - AHD or NTSC - AHD. By default, PAL is chosen. This will be the same for all camera inputs. Note: Brigade’s monitors have automatic detection of these standards. HDD/SD Overwrite refers to when an HDD and SD cards will overwrite its stored data.
  • Page 26 Alarm Quality has 8 levels. Level 1 is the best quality whereas level 8 is the lowest quality. Brigade recommends using a higher quality for Alarms for a higher level of image detail. Encode Mode refers allows users to choose between Constant Bit Rate (CBR) and Variable Bit Rate (VBR).

  • Page 27: Ip Camera Setup

    25 for PAL and 1 to 30 for NTSC. Quality has 8 levels. Level 1 is the best quality whereas level 8 is the lowest quality. Brigade recommends using a higher quality for Alarms for a higher level of image detail.
  • Page 28 5.0 software. This is shown in frame information. It is also shown on the LIVE OSD and the RECORD OSD. By default, Brigade uses IO1 for left indicator (Li), IO2 for right indicator (Ri), IO3 for reverse (Rv) and IO4 for brake (Br).

  • Page 29: Snapshots

    7.3.1.4 Mileage Total Mileage displays the total mileage of the vehicle once it has been confirmed in mileage setup. The speed unit controls whether this value is displayed in miles or kilometres. Actual Mileage is a field that is manually entered. Type the current value mileage value once the MDR is installed.

  • Page 30: Alarms

    TIMER (the buzzer will sound for the defined period). Timer can be set between 5 and 60 seconds. For example, video loss is a catastrophic failure and Brigade suggests using ALWAYS for such an alarm. Alarm Link Setup 2 Figure 84 Alarm Snap can be enabled, the settings are based on the alarm snap link setup.

  • Page 31: Video

    lights are connected to an input trigger where the off- time is ignored. By default, this is 10 seconds. 7.4.1.2 Panic Alarm Panic Button Enable refers to the panic button found on the external remote panel. This is connected to the MDR via the IO cable. By default, this alarm is enabled.
  • Page 32 7.4.2.2 Motion Detection Motion Detection Enable is used to analyse camera inputs for motion. By default, this is disabled. Alarm Type can either be alarm or event. Alarms are reported to the Centre Server (depending on MDR model). Events are stored but do not get reported to the Centre Server.

  • Page 33: Advanced

    Advanced 7.4.3.1 G-Force G-Force Enable is used to analyse the MDR’s g-force values. By default, this is disabled. Alarm Type can either be alarm or event. Alarms are reported to the Centre Server (depending on MDR model). Events are stored but do not get reported to the Centre Server. For Alarm Link Setup details refer to 7.4.1 General.

  • Page 34: Configuration

    Configuration 7.5.1.1 Config File Config File Export creates a configuration file and saves this to a USB flash drive. This file includes all settings except network and geo-fence related settings. This file can only be read by an MDR 500 Series model.

  • Page 35: Upgrade

    Warning: Do not connect an external HDD to the front USB port. Only USB Flash drives (which contain flash memory) is supported by this port. Brigade will not be held responsible for incorrect use of this port. Warning: Ensure the flash drive is not unplugged from the MDR during this process.

  • Page 36: Reset

    Reset Factory Settings Restore use this feature to restore the configuration to its default factory settings. Any configuration will be lost, except video recordings and historical data (highest/lowest temperature, mileage etc.). System Restart is used to force the MDR to restart. Reset Figure 114 Hardware Hardware Config Import is used to import a hardware config file...
  • Page 37 Super User Password Figure 115 Hardware Check Page 1 Figure 116 Hardware Config Save Figure 118 Hardware Check Page 2 Figure 117 Hardware Config File Figure 120 Hardware Config Export Figure 119 General System Check Figure 122 Hardware Config Import Figure 121...

  • Page 38: System Information

    System Information Version Information Device Name is a pre-populated field to help identify the MDR unit. The two available options that will be displayed is either MDR-504XX-500 or MDR-508XX-1000. Serial Number is a unique identifier for each MDR unit. This information is used to connect a mobile network or Wi-Fi MDR to MDR-Dashboard.

  • Page 39: Gps

    Warning: Do not connect an external HDD to the front USB port. Only USB Flash drives (which contain flash memory) is supported by this port. Brigade will not be held responsible for incorrect use of this port. Status is an indication of the state of the storage medium. There are three states that can be shown: RECORDING, NORMAL or FAILED.

  • Page 40: History

    History Highest Speed is displayed with the relevant date and time. Total Mileage is an indication of the vehicle’s mileage. Lowest Voltage is displayed with the relevant date and time. Highest Voltage is displayed with the relevant date and time. Lowest Temperature is displayed with the relevant date and time.

  • Page 41: Installing Mdr-Dashboard

    Click the download button to view active/historic downloads. The completed tasks automatically move to the Completed tab. Right-click a task and click open folder This will automatically open the location of your downloaded data. Installing MDR-Dashboard 5.0 • This operation is performed on the client PC. Right-click the installation file shown in MDR-Dashboard 5.0 icon Figure 131 and click run as administrator.

  • Page 42: Connecting The Mcu To The Pc

    Devices and Printers Figure 143 Properties Figure 145. Note: If failure occurs a manual removal of the drivers and a re-start of the PC is required. Please contact Brigade if support is needed. General Properties Figure 144 Hardware Properties Figure 145 Loading from HDD/SD •...

  • Page 43: Mdr-Dashboard 5.0 Local Mode

    • This process allows users to load the content of either a connected HDD Caddy (using the USB cable) or a mirror recording from the internal/external SD Card. • Reading these media storage devices may be slow depending on the amount of data recorded and the speed of the interface.

  • Page 44: Channel Info

    The MDR-Dashboard 5.0 user interface is sub-divided into several numbered areas as illustrated in MDR-Dashboard 5.0 User Interface Figure 152: 1. Data Source Access (Data Source Figure 173) 2. Graphs Panel 3. Controls Panel 4. Media Playback 5. Map 6. Frame Information All the above areas are explained in greater detail in the following sections.
  • Page 45 • See Event Information Figure 161. Event information consists of event names, event times and event descriptions (use horizontal scrollbar to view). • Users can access vehicle information such as ➢ Recorded channel data graph based on time ➢ Speed graph based on time ➢...

  • Page 46: Frame Information

    Frame Information The Frame Info panel (Frame Information Figure 170) provides information about firmware/MCU version, Register Info, vehicle tracking and vehicle information (temperature and voltage). FRAME INFORMATION consists of: • Firmware version • MCU version • Vehicle Registration • G-Force •...
  • Page 47 Data Source Figure 173 • Users click on the Local file tab as shown in Local Files Tab Figure 174. • Click the ADD button as shown in Directory Add Figure 175. Browse to the relevant folder and click SELECT FOLDER. •...

  • Page 48: Reading Data

    Reading Data • Double-click the vehicle icon . This will display ALL calendar events. • Each colour represents: ➢ Green dates represent normal recordings ➢ Orange dates represent alarm recordings ➢ Red dots represent metadata data ➢ Blue outline represents the current date (today’s date) •...

  • Page 49: Exporting Videos

    MDR-Dashboard 5.0 Controls Panel Figure 187 • Fast Forward options (1x, 2x, 4x, 8x, 16x, 32x). Maximum Slow Forward options are 1/2, 1/4, 1/8, 1/16 and 1/32. • Double-clicking an individual channel to make it full screen. There are other video viewing options as shown in Video View Options Figure 188.

  • Page 50: Saving Snapshots

    • The ABOUT option will display the window shown in About Figure 199. This will show the current MDR-Dashboard 5.0 version. • The Check for Updates option will take the user to the brigade website where relevant updates can be downloaded.

  • Page 51: Mdr-Player

    • Change location Go to Control Panel-> Clock and Region-> Region-> Administrative ->Change system locale-> Change to the country/location which speaks the language. ➢ Speed Unit ➢ Temperature Unit ➢ Automatically switches to the main stream – Unused ➢ Loop Playback Video – this will play the entire selected video on repeat. This feature can be used for HDD or directory playback ➢...

  • Page 52: Exported Mdr-Player

    • See MDR-Player 5.0 Icon Figure 207. Double click on the Brigade logo named MDR-Player 5.0 to start the program. MDR-Player 5.0 Icon Figure 207 10.3 Basic Operations MDR-Player 5.0 allows three ways of loading the data:...
  • Page 53 • Slow Forward (x1/2 or x1/4) • Fast Forward (x2 or x4) • Previous Frame • Next Frame • Sound • Snapshot – takes a screenshot of the selected channel which are stored in C:\Users\<username>\AppData\Roaming\MDR-Player 5.0\Temp • Frame Information Open File Rewind Stop Fast Forward...
  • Page 54 G-Force Graph Figure 216 Use the icon to access frame information. Information such as sensor trigger status, GPS location, Firmware/MCU and video recording parameters are displayed (Frame Information Figure 161). Firmware and MCU Versions GPS Location Trigger Status e.g. Br (Brake Trigger) Frame Information Figure 217 In the maps (below) tracking information refreshes continuously while playing and displays the vehicle registration.

  • Page 55: Advanced Ethernet Configurations

    11 Advanced Ethernet Configurations This section is dedicated to an advanced feature for individuals with networking knowledge which enables users to: • Live View of Cameras • Playback and download of recordings • View and download of logs • Configure MDR unit settings This feature is not recommended for field operations, diagnosis and configuration.

  • Page 56: Ethernet Operation

    11.2 Ethernet Operation • Once logged in, 5 tabs will be displayed as follows: PLAYBACK; LIVE VIEW; MAINTENANCE; LOG Web Application Manager Figure 227 and CONFIG. See Web Application Manager Figure 227. • PLAYBACK tab allows users to view and download recordings.

  • Page 57: Ethernet Maintenance

    Live Channel View Settings Figure 235 Live Stream Options Figure 236 11.3 Ethernet Maintenance • Basic information displays the current and historic state of camera channels. This can be due to several reasons such as damage, poor contact and installation. •...

  • Page 58: Ethernet Log

    11.4 Ethernet Log • Log is used to search, display and export logs from the MDR. • Logs can be alarm logs, operation logs or locked logs. • Alarm logs can be filtered further by type such as: IO, Panic, Speed, Video Loss, Blind detection, Motion detection, G- Force and Geo-Fence.

  • Page 59: On-Screen Display Map

    12 On-screen Display Map GREEN ARIAL BLACK ITALICS Note: represents default settings Lucida Handwriting Font represents mobile network and/or Wi-Fi menu options 12.1 Rec Search Rec Search Rec Search TITLE OPTION No 1 Source Sub-strm SD Drop down Main Strm SD option Month (XXX)

  • Page 60: System Info

    Export Back Start time XX.XX.XX PROPRIETAR Export ------→ Export Time Y DATA AVI data File Size Playback Show/Hide Volume Remaining/ (During Total menu Playback right-click removes OSD from view) Choose time using number pad Volume Increase Volume Decrease Mute Volume Next Channel Previous Channel Rewind x2 x4 x8...

  • Page 61: Modules

    Modules 12.2.2.1 Mob Net Mob Net TITLE OPTION No 1 Connection Type GPRS/EDGE CDMA EVDO WCDMA TDSCDMA Module Status (Physical State) Detected Not Detected SIM Status (Physical State) SIM Detected SIM Not Detected SIM Available SIM Not Available SIM Busy Dial Status Dialled Up Failed Dial Up...

  • Page 62: Server Status

    Server Status Centre Server # TITLE OPTION No 1 (up to 8 using buttons) Server Status UNCONNECTED Connected Network Type Mob Net Wi-Fi Ethernet Auto-adapt Server Protocol Type MDR5 Maintenance Server IP Address XXX.XXX.XXX.XXX Port XXXXX (usually 5 characters, depends on port specification) Environment Environment TITLE...

  • Page 63: Log Search

    12.3 LOG SEARCH Log Search TITLE OPTION No 1 Month Year Choose on calendar view (Orange) Date Start Time hh:mm:ss Using Number Pad. Next ------------------------→ End Time hh:mm:ss OPERATION Log Type ---→ Alarm Type---→ Alarm Log Locked Log Search-→ Panic Button Speed G-Force Video Loss...
  • Page 64 12.4.1.2.2 Time Sync Time Sync TITLE OPTION No 1 Date/Time Choose from calendar dd/mm/yyyy Use numpad to enter time hh:mm:ss ENABLED Disabled time.nist.gov NTP sync Enabled -----------------→ DISABLED time.windows.com time.nw.nist.gov time-a.nist.gov time-b.nist.gov User-Defined-------→ Alpha-numeric keypad 32 Character limit 12.4.1.2.3 TITLE OPTION No 1 MAR.
  • Page 65 12.4.1.4 User Setup USER SETUP TITLE OPTION No 1 Menu Idle Time (Automatically Logout Period) 30 Seconds 1 Minute 3 MINUTES 5 Minutes 10 Minutes Never Enabled --→ Edit ---------→ Username XXXXXXXXXX Username admin (10 characters) user User Group Admin ADMIN Normal User User Group...
  • Page 66 12.4.1.5.4 Mob Net Mob Net TITLE OPTION No 1 Enable Server Type No Service GPRS/EDGE CDMA EVDO WCDMA TDSCDMA Network Type XXXX…XXXX ( 32 characters) Username XXXX…XXXX ( 32 characters) Password XXXX…XXXX ( 32 characters) Access Number *99# Certification NONE SIM Phone Num XXXX…XXXX (16 characters)

  • Page 67: Surveillance

    Surveillance 12.4.2.1 Live View 12.4.2.1.1 Preview Preview TITLE OPTION No 1 Live Audio Enabled DISABLED (Brightness) Image Setup Setup --------------→ (Contrast) (Colour) (Saturation) Channel Choose from 1 to 6 (4 channel) Choose from 1 to 12 (8 channel) Mirror/Normal (Mirrors Live and Recorded Data) Flip Vertical (Flips Live and...
  • Page 68 12.4.2.1.3 Live OSD Live OSD TITLE OPTION No 1 ENABLED Date/Time Disabled Vehicle Reg Enabled DISABLED Alarm Enabled DISABLED Vehicle Num Enabled DISABLED ENABLED Recording State Disabled ENABLED Speed Disabled Enabled DISABLED ENABLED Channel name Enabled G-Force Enabled DISABLED Drag OSD items to desired positions on Position Setup...
  • Page 69 12.4.2.2.2 TITLE OPTION No 1 Choose from 1 to 6 (4 channel) Choose from 1 to 16 (8 Channel channel) CH1-6 Channel Name (4 channel) CH1-16 (8 channel) ENABLED Enable Recording Disabled Resolution (options auto- adjust based on available camera inputs) WCIF WHD1 720p...
  • Page 70 12.4.2.2.3 TITLE OPTION No 1 INTERNAL SD Record Storage FPB SD Record Mode NONE Setup-------→ Channel Choose from 1 to 6 (4 channel) SUB-STREAM -----→ Choose from 1 to 12 (8 channel) Enable Disabled ENABLED Audio Disabled ENABLED Resolution (options QCIF auto-adjust based on available camera...

  • Page 71: Events

    12.4.2.3 IPC Setup IPC Setup TITLE OPTION No 1 Enabled --→ Search -→ MAC Address Enabled ---→ IP Address Enable Disabled MDR5 Protocol type Port 9006 ----→ ONVIF ----→ Port 9007 Network Channel # Setup -→ MDR5 Protocol Type ONVIF IP Address xxx.xxx.xxx.xxx 9006...
  • Page 72 12.4.3.1.3 Speed SPEED TITLE OPTION No 1 Unit KM/H Source Speed Pulse ------→ Calibration Mode Input Manually Start xx:xx:xx Finish ------------→ Calculate Auto Correct ---→ Correct Pulse Ratio Per Mile / Per KM 12.4.3.1.4 Mileage Mileage TITLE OPTION No 1 Total Mileage X.XXXX Mile/KM Actual Mileage...
  • Page 73 12.4.3.2.2 IO Snap IO Snap TITLE OPTION No 1 Channel Choose from 1 to 6 (4 channel) Choose from 1 to Alarm Snap Snap Link Setup--------→ 12 (8 channel) Snap Enable ------→ Enabled ---------→ Resolution DISABLED WCIF Copy to Choose from 1 to WHD1 720p 1080p...

  • Page 74: Alarms

    Alarms 12.4.4.1 General 12.4.4.1.1 Speed Alarm Speed Alarm TITLE OPTION No 1 ALARM Alarm Type Overspd Enabled---→ DISABLED Event Trigger Early Difference Speed KM/H Duration Time (0~255) seconds Alarm Off-Delay (0~10) seconds Tick 4 channels Alarm Link --------------------------→ Channel for MDR-504xx Setup Tick 8 channels for MDR-508xx...
  • Page 75 12.4.4.1.2 Panic Alarm Panic Alarm TITLE OPTION No 1 ENABLED ALARM → Alarm Type Panic Bttn Disabled Event Trigger Activation Period (1~255) seconds Alarm Off-Delay (0~10) seconds Tick 4 channels Alarm Link ----------------------------→ Channel for MDR-504xx Setup Tick 8 channels for MDR-508xx Post Record 1 Min...
  • Page 76 12.4.4.1.3 IO Alarm IO Alarm TITLE OPTION No 1 Alarm Alarm ENABLED → IO # Type EVENT Disabled Trigger IO Set HIGH Alarm Off-Delay (0~10) seconds No channel Alarm Link ----------------------------→ Channel ticked for MDR- Setup 504xx No channel ticked for MDR- 508xx Post Record 1 Min...
  • Page 77 12.4.4.2 Video 12.4.4.2.1 Video Loss Video Loss TITLE OPTION No 1 ENABLED ALARM → Video Loss Alarm Type Disabled Event Tick 4 Trigger Video Loss Setup Channel channels for Setup MDR-504xx Tick 8 channels for MDR-508xx Alarm Off-Delay (0~10) seconds Tick 4 Alarm Link ----------------------------→...
  • Page 78 12.4.4.2.2 Motion Det Motion Det TITLE OPTION No 1 ALARM Alarm Type Enabled---→ DISABLED Event M.D Setup Channel Enable (1 Enabled -------→ Sensitivity 1 (Most) to 12) Area Setup SHUTDOWN Activated DELAY Ignition On DISABLED Alarm Off-Delay (0~10) seconds Tick 4 channels Alarm Link --------------------→...
  • Page 79 12.4.4.2.3 Blind Det Blind Det TITLE OPTION No 1 ALARM Alarm Type Enabled---→ DISABLED Event High B.D Setup Channel (1 to 12) Enabled -------→ Sensitivity Enable Middle Duration Time (0~255) seconds Delay Time (0~255) seconds Alarm Off-Delay (0~10) seconds Disabled Tick 4 channels Alarm Link ---------------------------→...
  • Page 80 12.4.4.3 Advanced 12.4.4.3.1 G-Force G-Force TITLE OPTION No 1 ALARM Alarm Type G-Force Enabled-----→ Event DISABLED 5.5 G X = 0 G-Force Threshold Value Calibrate Trigger 5.5 G Y = 0 5.5 G Z = 0 Alarm Off-Delay (0~10) seconds Tick 4 channels Alarm Link ---------------------------→...
  • Page 81 12.4.4.3.2 Geo-Fencing Geo-Fence TITLE OPTION No 1 Enable No channel Alarm Link Setup ----------------------→ Channel ticked for MDR- 504xx No channel ticked for MDR- 508xx Post Record 1 Min 3 Min 5 Min 10 MIN 15 Min 30 Min Lock Enabled DISABLED Alarm O/P Link...

  • Page 82: Maintenance

    12.4.4.3.3 HDD Error HDD Error TITLE OPTION No 1 ENABLED ALARM → Alarm Type HDD Error Disabled Event HDD Error Alarm Off-Delay (0~10) Setup seconds Tick 4 channels Alarm Link --------------------------→ Channel for MDR-504xx Setup Tick 8 channels for MDR-508xx Post Record 1 Min 3 Min...
  • Page 83 12.4.5.2 Metadata 12.4.5.2.1 Data Export Data Export TITLE OPTION No 1 ENABLED SNAPSHOTS File Type Export ---------→ GPS Data G-Force Info Mob Net Dial Log Alarm Log Operation Log Disabled Export Time Enabled -------------→ Start time Date yyyy-mm-dd Time hh:mm:ss End time Date yyyy-mm-dd...

  • Page 84: Logout

    12.4.5.6 Hardware Hardware TITLE OPTION No 1 Hardware Config Import Import Hardware Config Export Export General Check General System Check Check Results Please Enter the Super System Super System Check Login Password Password Login Super Check Edit Current Password Results Password Cancel New Password...

  • Page 85: Help Button

    13 Help Button Main Menu Sub Menu Page Tab Menu Title Open Text Close SYSTEM Version Info Serial Num For Mobile Network / Wi-Fi MDR INFO models: Serial Numbers is shown under MDR SETUP Basic Setup Time Setup Time Sync NTP sync Only for Mobile network or Wi-Fi MDR units.

  • Page 86: Mounting Dimensions

    4 (lowest on bracket) 6 mm 15 Appendices 15.1 Video Quality Table Using Brigade’s Resource calculator, the below tables have been compiled. Please note the following: ➢ The values below are for reference only ➢ Streaming bandwidth can vary considerably according to the level of variations in the image. Static images are more efficiently compressed than dynamic ones ➢...

  • Page 87: Normal / Alarm Recording Parameters

    For typical recording sizes for for a one-hour duration and HDD recording times in hours versus storage capacity, please use the link below: https://brigade-electronics.com/mdr-storage-calculator/ A screenshot for 4 channels of the Mobile Digital Recorder Storage Calculator is shown below (using default settings): 15.3 Sub-Stream Recording Parameters...

  • Page 88: User Log Description

    15.4 User Log Description Reason Example Description MDR Ignition 08:48:16 Power on MDR powers on 10:06:53 Ignition off 10:06:57 The host power down MDR shuts down 10:10:19 Low Voltage Protect reboot down 15:28:51 Restart Auto Restart 22:30:55 Upgrade 22:33:43 Host upgrade reboot Reboot after upgrade MDR Info 08:48:23...

  • Page 89: Software Compatibility Matrix

    Compatibility Comments Version MDR-504_V231_T180312.01_E0526 MDR-Dashboard 5.0 MDR Server MDR-508_V231_T171018.02_E0526 (2.2.2.0.12).exe MDR-504_V231_T181108.02_M0526(NA) Brigade MDR 5.0 (1.1.7) for iOS (2.2.2.0.18).exe MDR-508_V231_T181108.01_M0526(NA) Brigade MDR 5.0 (1.3.1 2017.10.11). for Android Brigade MDR 5.0 (1.2.0) for iOS Brigade MDR 5.0 (1.3.2 2019.05.29) for Android MDR-504_V231_T180312.01_E0526 MDR-Dashboard 5.0...

  • Page 90: Mdr-Dashboard 5.0 Silent Installation

    15.6 MDR-Dashboard 5.0 Silent Installation MDD-Dashboard 5.0 supports silent installation using PowerShell switches. Follow the steps below to complete a silent installation: Copy the installer to a directory, such as: C:\install\MDR-Dashboard_5.0_2.2.2.0.22.exe Enter the PowerShell window Run the command: C:\install\MDR-Dashboard_5.0_2.2.2.0.22.exe /VERYSILENT /SP- You can also put the command in the batch file intall.bat and double-click install.bat to run it.

  • Page 91: Testing And Maintenance

    HDD recordings to start after a file-system check. 6) This test can only be performed when the MDR video output is displayed on a Brigade monitor. Ensure that both the SD card and HDD are recording. Recording is shown with an SD card symbol and HDD symbol.

  • Page 92: Troubleshooting

    18 Troubleshooting 18.1 MDR Unit Scenario Detection Resolution 1. SD card is used to recover data – see the Loss of recording data 1. Error light will be visible on the MDR unit LED panel manual for recording options 2. Error light will be shown on the Remote 2.

  • Page 93: Specifications

    19 Specifications Features Video System PAL/NTSC/AHD Video Input 4x Channels - Select Connector 2x Channels for IP cameras via Ethernet Connector, requires PON switch / 8x Channels - Select Connector 4x Channels for IP cameras via Ethernet Connector, requires PON switch Video Output 1x Channel - Select Connector Video Compression...
  • Page 94 Network Interface Mobile Standards 2G/3G/4G [MDR-504GW-500 and MDR-504G-500 only] Mobile Operating Bands 4G (FDD LTE): B1,B2,B3,B4,B5,B7,B8,B20, all bands with diversity 3G (WCDMA/HSDPA/HSUPA/HSPA+): B1,B2,B5,B8, all bands with diversity 2G (GPRS/GSM/EDGE): 850/900/1800/1900 MHz [MDR-504GW-500 and MDR-504G-500 only] Mobile Data Services GPRS: UL 85.6 kbit/s; DL 85.6 kbit/s EDGE: UL 236.8 kbit/s;...
  • Page 95 10% to 90% Approvals UNECE Regulation No. 10 Revision 5 (“E-marking”) Brigade Electronics MDR-504xx-500/ MDR-508xx-1000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 96: Eu Declaration Of Conformity

    Manufacturer: Brigade House, The Mills, Station Road, South Darenth, DA4 9BD, UK This declaration of conformity is issued under the sole responsibility of Brigade Electronics. Objects of the declaration: Mobile Digital Recorder System with GPS, Wi-Fi and 4G connectivity, including accessories and cables.

  • Page 97: Glossary

    21 Glossary 3G – Third Generation ID – Identification 4G – Fourth Generation IO – Input/output AC – Adaptor Cable iOS – i Operating System ADPCM – Adaptive Differential Pulse-code Modulation IP – Internet Protocol Alarms – An “EVENT” that has been configured (in the IR –...

  • Page 98: Disclaimer

    Mobile digital recorder systems are an invaluable driver aid but do not exempt the driver from taking every normal precaution when conducting a manoeuvre. No liability arising out of the use or failure of the product can in any way be attached to Brigade or to the distributor. Dénégation Verwerping Les enregistreurs numériques portables sont une aide pré...
