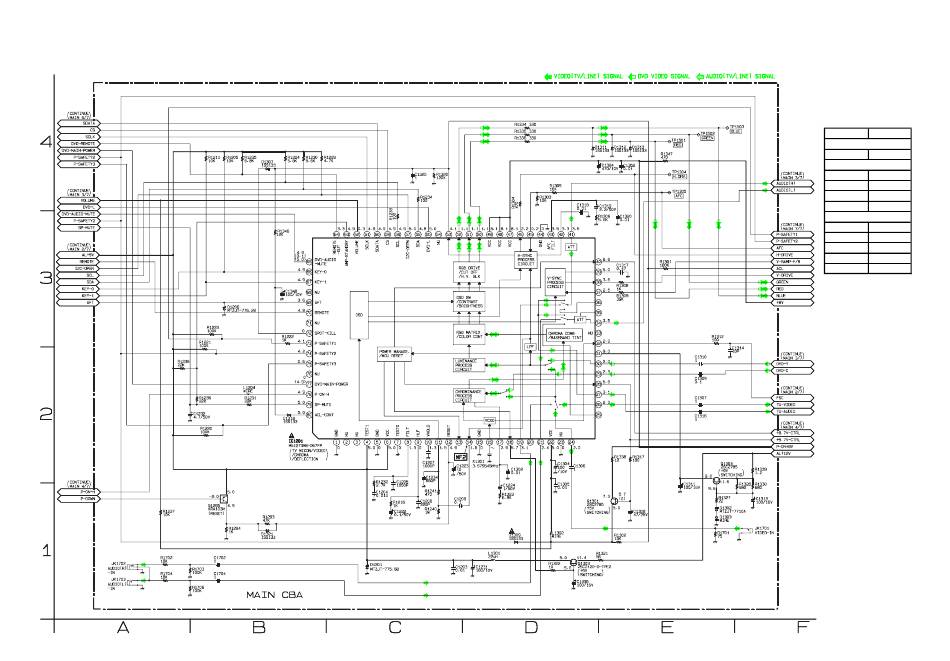

Main 1/7 Schematic Diagram < TV Section >
1-10-3
MAIN 1/7
Ref No.
Position
IC
B-2
IC1201
TRANSISTORS
Q1285
B-1
E-1
Q1301
Q1303
D-1
Q1304
E-2
TEST POINTS
TP1304
E-4
E-4
TP1305
TP1501
E-4
TP1502
E-4
TP1503
F-4
T8100SCM1
