Summary of Contents for Vogel FALKE
- Page 1 FALKE User Manual User manual for the FALKE device from VOGEL, the latest device for detecting and distinguishing between different metals. Metal and Water Finder www.vogeldetectors.com...
-
Page 2: Table Of Contents
Index Page Important Notes Page Technical Speci cations Page Introduction Page Why Falke Page Contents Page Assembly Page Main Unit Page Getting Started Page Main Unit Setup and Start Working Page Searching setup Page Calibration/Automatic Calibration Page Manual Calibration Page... -
Page 3: Important Notes
IMPORTANT NOTES In the case of tampering with the device, the device will lose its security. The device must be connected to the searching coil during operation Do not store the device in a place with high temperatures and humidity. The user strips himself of metal, such as rings watch, or a metal belt The user should practice on how to use the device before setting off for detection and search operations. -
Page 4: Technical Speci Cations
TECHNICAL SPECIFICATIONS search for: Searching for metals, gold and blanks. searching system: Very low frequency VLF system Operator mikrocontroller A system for measuring and processing levels of the electromagnetic eld formed around the target and the receiver through the reception coil in the Operating system search coil, analyzing these results and showing them through sound alerts and color graphic indicators on the screen. - Page 5 Operating temperature: From -15 °C to 60 °C storage temperature: From -15 °C to 40 °C It can be stored and operated at an average air humidity of Humidity : 5% to 75%. 8 Kg weight: 17 x 21 x 5 cm Dimensions: 66x51x26 cm Bag dimensions:...
-
Page 6: Introduction
INTRODUCTION FALKE is the best device of what was produced by the German company VÖGEL and the latest in metal detector technology. This device is characterized by di erent systems and multiple search options in order to reach the most accurate results in the search for targets. -
Page 7: Why Falke
Dear customer, we appreciate your trust in us and your acceptance of a new and unique experience in the world of metal detectors by owning one of our products. The Falke device has a number of features and characteristics, including: 16 | - The special design of the (DoubleD) search coil to avoid magnetic anomalies caused by metallic minerals. -
Page 8: Contents
CONTENTS search coil 33 cm Designed according to standard Main Unit standards to sense pieces of small sizes search coil 45 cm Designed according to standard parameters to give a wide sensitivity range Handel Device Bag warranty card User Manual Charger Hedphone Page 7... -
Page 9: Assembly
ASSEMBLY HANDEL SETUP We open the handle locks to calibrate the length of the handle. Lengthening or shortening both arms of the carrying handle in proportion to the user. When determining the appropriate length for each of the forearms, we close the locks to give them movement. -
Page 10: Main Unit
MAIN UNIT EQUINOX Series Calibration button Power button ON/OFF Pinpoint button Move buttons TFT display OK button searching coil socket Back button Hedphone socket Hold button speaker Charger socket Page 9... -
Page 11: Getting Started
COR REC T USE GETTING STARTED COR REC T USE Shaft height is wrong Shaft height is correct Shaft height is wrong Shaft height is correct In order for the search to be complete and without leaving unchecked areas, it is not possible to move 5cm (~2'') above the ground. -
Page 12: Main Unit Setup And Start Working
MAIN UNIT SETUP AND START WORKING Turn on the device by pressing the Power Button The boot screen will appear and then the interface of the connection mode with the search coil By VÖGEL Metalldetektor with MWF Detector association © MWF DETECTORS TECHNOLOGY . ALL RIGHTS RESERVED. Page 11... - Page 13 This status appears if the search coil is connected This condition appears if the search coil is not connected The main interface contains two icons. Search to enter the search and settings menu to adjust the device settings and an indicator of the battery charge level is present in all interfaces. Moving between icons is done by pressing the Move buttons.
- Page 14 When choosing the settings icon and pressing the enter button, we will see a settings interface that enables us to reset the device. It contains options for adjusting the brightness, sound, and .language of the device, in addition to the possibility of restoring the device to factory settings volume setting: when selecting the volume icon, the volume is changed by pressing the Enter button.
- Page 15 Language setting: When selecting the language icon to change the language, we press the enter button to go to the languages interface. The device has six languages: English, German, French, Arabic, Spanish and Russian. The transition between these languages is done through the navigation buttons, and to confirm one of the languages, we press the OK button SETTING Deutsch...
-
Page 16: Searching Setup
SEARCHING SETUP When selecting the search icon and pressing the OK button, the search menu appears, which contains the search Mode and search settings SEARCH MENU SEARCH SETTING SEARCH MODE Search settings: To adjust the search settings, there are three options The option to cancel or activate the sensitivity to iron - The option to decrease or increase the sensitivity level within ten levels of sensitivity - Manual or automatic calibration option... -
Page 17: Calibration/Automatic Calibration
CALIBRATION Note: When operating the device, a soil calibration must be performed before starting work by pressing the Calibration button and following the instructions mentioned about calibration on page 16. AUTOMATIC CALIBRATION CALIBRATION SETTING When you press the automatic calibration option, the user will see an instruction interface asking him to raise the dial a distance of 35 cm from the surface of the earth and... -
Page 18: Manual Calibration
Then we press the Enter button to complete the calibration process, and the user is shown a message of completion of the calibration, in which the average calibration value appears, and the user is asked to press the OK button to start the search process. CALIBRATION SETTING GROUND CALIBRATION IS DONE PRESS ENTER... -
Page 19: Searching Modes
SEARCHING MODE When entering the search interface, we press the move button (move) to detect the search mode icon then press the OK button to enter the search mode interface, which contains four di erent search modes. SEARCH MODE Graph Treasures Coins Depth... -
Page 20: Graph Mode
GRAPH MODE Entering the Chart Pattern is done by pressing the OK button to show the Graph mode interface. The interface of the graph mode contains two graphs, the rst showing the results of the showing of minerals in the search area, and the second showing the results of Minerals and caves. -
Page 21: Treasure Mode
TREASURES MODE When selecting the treasure search mode, we press the OK button to show the treasures mode interface, which contains a chart for the graphic analysis of the search process in addition to the list of targets that the device can detect. The device, through the treasure search pattern, directly analyzes the soil under the search coil to distinguish the type of target, if it is present, through a graph to show the intensity of the signal, thus the depth of the target. - Page 22 TREASURES MODE TREASURES MODE Caves Caves Gold/zinc Valuable & Valuable & Gold/zinc Worthless Worthless Depth Depth Depth Depth Metals Metals Signals in case non-precious metals. Signal form in case of gold/zinc. TREASURES MODE TREASURES MODE Caves Caves Valuable & Gold/zinc Gold/zinc Worthless Valuable...
-
Page 23: Coins Mode

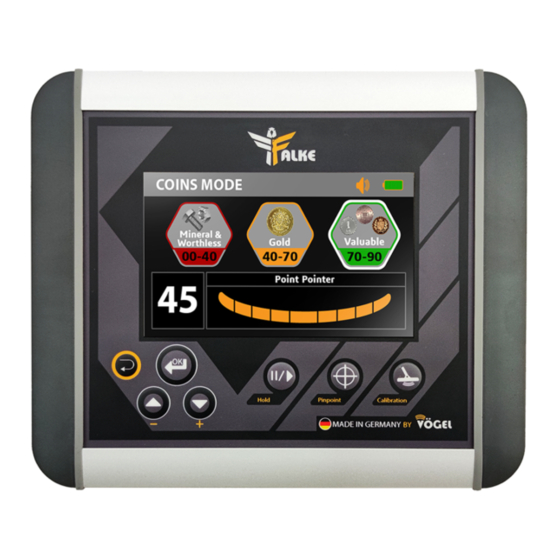

COINS MODE When selecting the coin search pattern, we press the OK button to display the coins pattern interface, which contains a list of targets that the device can detect. When there is a target, the area around the icon of the detected target is illuminated, indicating the intensity of the signal, and thus the depth of the target from the search coil. -
Page 24: Accurate Identi Cation
ACCURATE IDENTIFICATION In this type of search, the user can activate the pointer option, which expresses the position of the target in relation to the disk, by pressing the Pinpoint button. When enabled, the discrimination pattern is temporarily disabled so that the device detects all targets. If the target is below the middle of the disc, the signal is maximum in the search area and decreases towards the edge of the disc. - Page 25 Pinpoint mode also turns o motion detection, so that an alert if a target is detected can be heard even if the coil is stationary. Pinpoint mode covers the target's response by reducing sensitivity with each scanning movement, so the target's response remains from a very narrow area.
- Page 26 Shaft height is correct The target is under the search coil on the tip. COINS MODE Target position 5cm (~2'') above the ground. hierarchy Depth Depth Worthless Valuable Gold/zinc 00-40 00-40 40-70 70-90 40-70 70-90 Point Pointer ng search coil angle Correct search coil angle Shaft height is wrong CORREC T WAY OF SW...
- Page 27 In this mode, the user can desensitize any of the targets in the list by pressing the transition Shaft height is wrong buttons to show an X in green on the icon of the desired target. Objectives. To remove the cancellation, press the OK button again.
-
Page 28: Depth Mode
DEPTH MODE This mode depends on the latest analysis and processing algorithms for the data generated during the search process to determine the depth of the target discovered through the search using one of the previous search modes. When a target is detected, we have to measure the dimensions of the target by de ning the starting point and the endpoint. - Page 29 Change the value of the target Page 5 distance length DEPTH MODE ENTER THE MEASUREMENT Depth OF TARGET TARGET EPTH DEPTH DEPTH MODE ENTER THE MEASUREMENT OF TARGET Depth TARGET EPTH DEPTH Show the expected value of target's depth. CHARGING It is preferable to turn o the device during the charging process.
-
Page 30: Notes
accurate results. NOTES 1- The user must connect the search coil to the device before turning it on. 2- When an unused button is pressed in one of the search modes, a di erent beep sounds. 3- The device must be turned o during the charging process. 4- Use the charger that came with the device. - Page 31 Metal and Water Finder info@vogeldetectors.com www.vogeldetectors.com...
