- Page 1 INSTALLATION MANUAL MODEL #40065 WHEEL KIT REGISTER YOUR PRODUCT ONLINE at championpowerequipment.com or visit championpowerequipment.com REV 20210309 Champion Power Equipment, Inc., Santa Fe Springs, CA USA...
- Page 2 INTRODUCTION SAFETY DEFINITIONS INTRODUCTION Congratulations on your purchase of a Champion Power Equipment The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, (CPE) product. CPE designs, builds, and supports all of our products to strict specifications and guidelines.

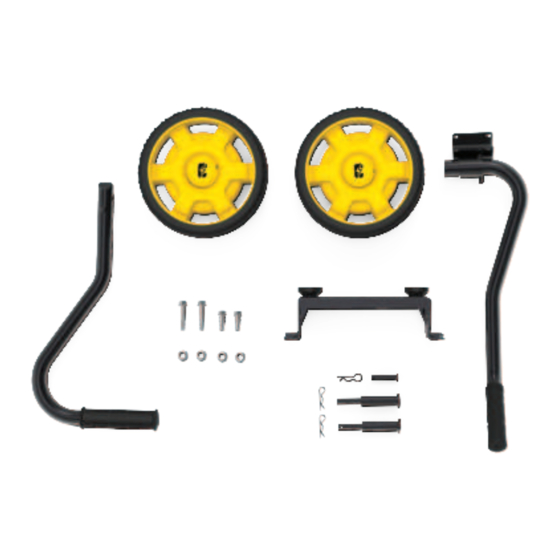

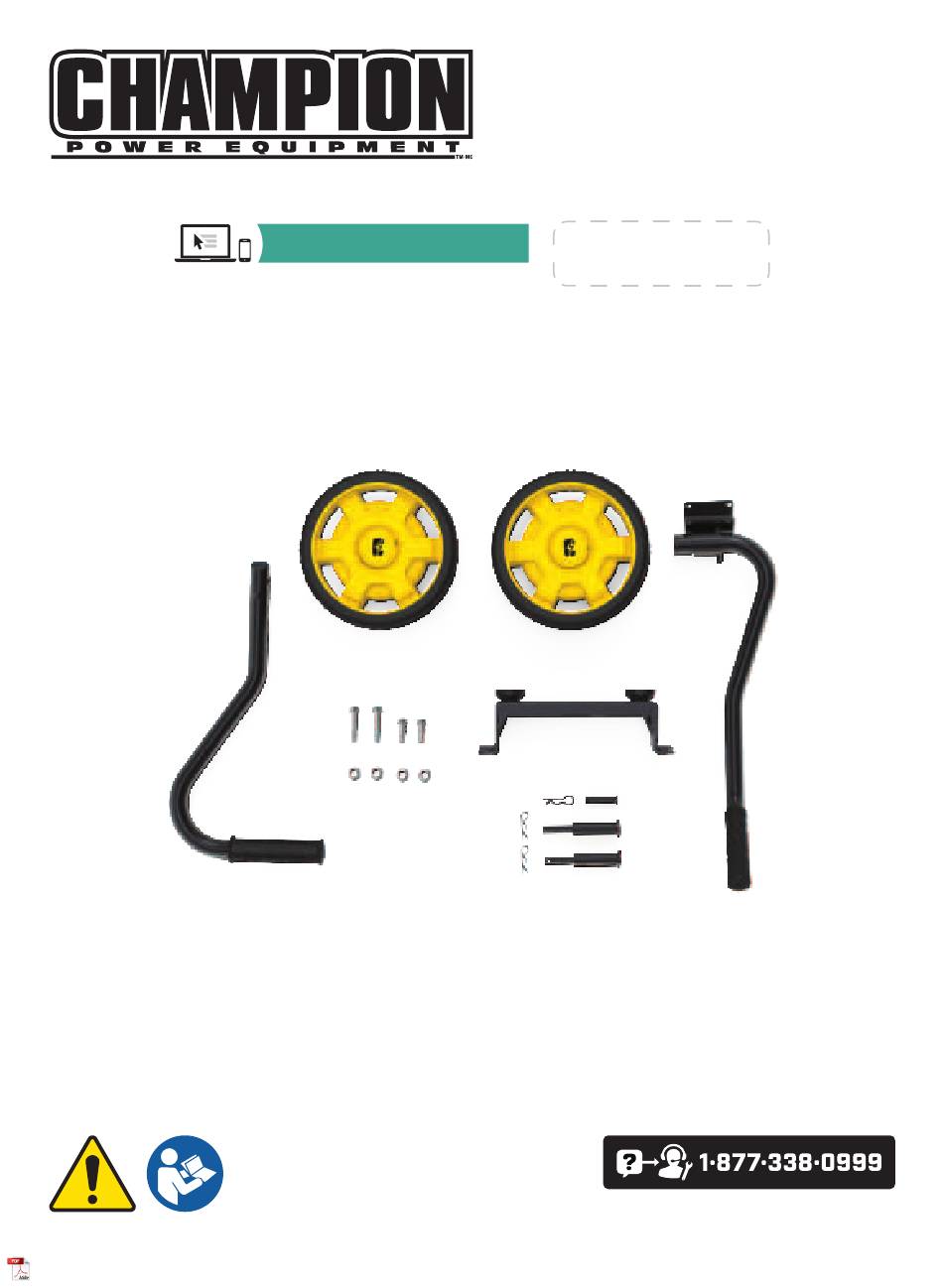

- Page 3 40065 - WHEEL KIT IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CAUTION The wheel kit is not intended for over-the-road use. CONTROLS AND FEATURES Parts Included Wheels Handle 1 Handle 2 Support Leg Part Part Qty. Hardware Hardware Qty. Tool(s) Needed B.
- Page 4 40065 - WHEEL KIT ASSEMBLY ASSEMBLY Install the Support Leg Your wheel kit requires assembly. For questions regarding the NOTICE assembly of your wheel kit, call our help line at 1-877-338-0999. Please have your model number available. Some generator models will require removing rubber pads prior to installing the support leg.
- Page 5 40065 - WHEEL KIT ASSEMBLY Install the Handle Install the Handle 1 Please check your generator’s handle bracket to determine which 1. Place the handle over the mounting channel on the frame. handle type you need. Use the enclosed hardware for assembly.
- Page 6 40065 - WHEEL KIT PARTS DIAGRAM PARTS DIAGRAM Part Number Description Qty. 2.16.001 Pin Ø2 x 33, "R" Shape 100714023-0001 Wheel, Yellow 100712243-0001 Wheel, Cover,Yellow 122.201501.23 Roll Pin, Wheel, Ø16 x Ø10 x 97 1.5789.0845 Flange Bolt M8 x 45 122.200700.01...
