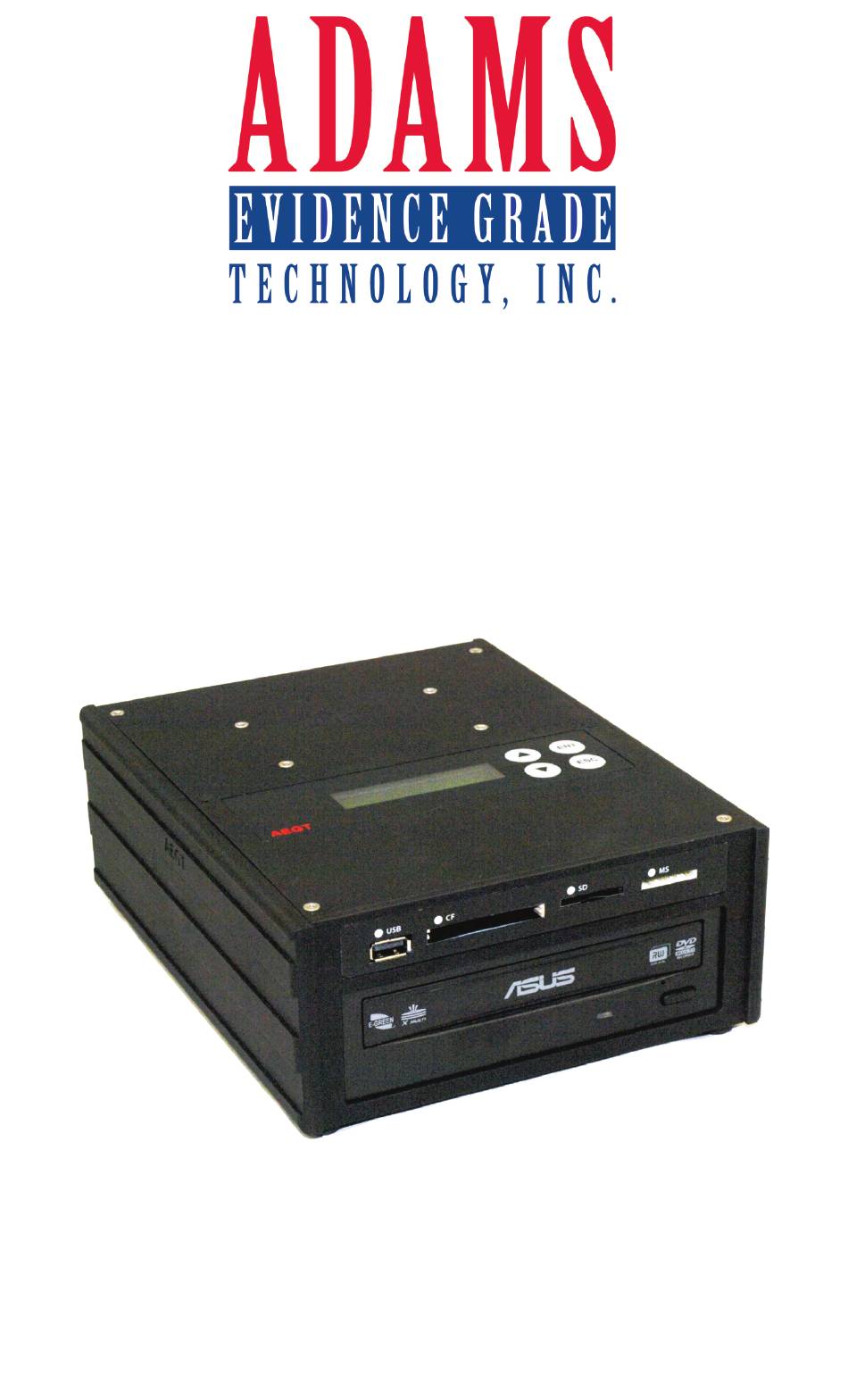

- Page 1 DP-150 Series Flash to DVD/CD/BDXL Copier Toll Free 877-643-4900 PO Box 1217 Utopia, Texas 78884 www.aegtinc.com...
- Page 2 WARNING Use of the AEGT DP-150 Series, is for the legal backup/copy of licensed materials and personal data. Any copy of licensed materials is the property of the author or copyright holder. Any unauthorized copying, or resale of copyrighted material is prohibited by US and International laws.
- Page 3 The DP-Series is a smart device, especially designed to provide a fast copy function to copy the information from a variety of flash memory cards/USB devices to DVD/CD/BDs. DP-150-DVD proprietary use is for DVDs. DP-150-BD-XL proprietary use is for Blu-rays. The DP-Series is designed as a completely stand alone device with no edit function, and cannot be connected to a Network, Server, Computer or any other device.
-
Page 4: Table Of Contents
USB/Flash Memory Copier 1. Introduction ....................1 2. Features ....................... 1 LCD Front Control Panel ................2 Flash Media Interface ..................2 ....................3 Specifications 6. Operating Instructions .................4 1. Flash to Disc ................... 4 Copy All Data........ - Page 5 Language...................8 Set Time Zone .................8 Clear Setup..................8 3.9 Advanced Setup..................9 3.9.1 Boot Password................9 3.9.2 Set up Password................9 BASIC TROUBLESHOOTING ..............
-
Page 6: Introduction
1. INTRODUCTION The AEGT DP-150 Series USB/Flash Memory Copier controller is a smart device especially designed to provide a fast copy function to copy the information from a variety of flash memory cards/USB devices to DVD±R/±RW/±R Dual Layer, CD- R/RWs, BD-R/RE or BD-R/RE XLs. It is designed as a completely stand alone device, with no edit function, and cannot be connected to a Network, Server, Computer or any other device. -
Page 7: Lcd Front Control Panel
3. CONTROL PANEL Enter Escape Down (2X16 characters) Control Buttons : Up/backward; Used to navigate backward in the menu : Down/forward; Used to navigate forward in the menu : OK/Enter/Select; Execute the function : Back/Escape; Used to go back to previous function LCD Display The LCD display is a 2x16 Mono LCD screen. -
Page 8: Specifications
5. SPECIFICATIONS MODEL DP-150 Series Internal SATA INTERFACE MS SLOT: MS, MS-DUO, MSPro, MSPro-DUO CF SLOT: CF Type I & II SD SLOT: SD, SDPro, SD HS, Super HS SD, SDXC, SDHC, MiniSD*, MiniSDPro*, MircoSD* (*Adapter Required) MMC, MMCPro, MMCII, RS-MMC... -
Page 9: Operating Instructions
6. OPERATING INSTRUCTIONS 1. Flash to Disc 1.1 Copy All Data This function will copy from USB or flash memory card to DVD/CD/BD disc(s). A high capacity USB or memory card with large data content can be copied to several small capacity discs using Disc Spanning technology. Plug in a Flash device (ex: USB, SD, MMS…) into the proper slot as the source and place a blank disc into one DVD/CD/BD writer as target for copying. -
Page 10: Copy+Compare
1.3 Copy+Compare Performs a Copy function followed by a Compare function. Copied discs files are compared to the flash media bit for bit. 1. Flash to Disc &COMP 1/1 119MB [Flash to Disc] Write 1/1 119MB 3. Copy+Compare TTL 119MB 89MB TTL 119MB 89MB Result Pass 1 Fail 0... -
Page 11: Drive Information
2.2 Drive Information This function shows the drive info that is connected to each internal port of the controller. Information includes the port number that each drive is assigned to, brand name and model of each drive and drive firmware version. [# 1 ] P : 1 1.00 [Utility]... -
Page 12: Setup
3. Setup 3.1 Set Burn Speed Allows user to set the burn speed for copying needs. Note: Due to difference of media, a median burn speed is recommended. Selectable burn speeds: CD: 1, 2, 4, 8, 10, 12, 16, 20, 24, 32, 36, 40, 44, 48, 50, 52(default), 56, MAX. Audio CD: 1, 2, 4, 8, 10, 12, 16, 20, 24, 32 (default), 36, 40, 44, 48, 50, 52, 56, MAX. -
Page 13: Set Span Mode
3.4 Set Span Mode Allows user to set how Disc Spanning is performed. Preload Loading: (default) to be used if one optical drive is connected. Multi Target: to be used if more than one optical drive is connected. [Setup] 3. Setup [Auto Start] 4. -
Page 14: Advanced Setup
3.9 Advanced Setup 3.9.1 Boot Password Allows user to set up password for the copier to prevent unauthorized use. Password can be up to 6 characters. [Setup] [Advanced Setup] 3. Setup 9 . Advanced Setup 2. Boot Password Press ENT to confirm [Boot Password] [Boot Password] [Boot Password]... -
Page 15: Basic Troubleshooting
Holding down the ESC key to abort the copy process may cause the machine to become hung up. If this happens turn OFF and then ON the DP-150 Series. b. Change the Master Source. It may have errors on it, or be of too poor quality causing the machine to become hung up.
