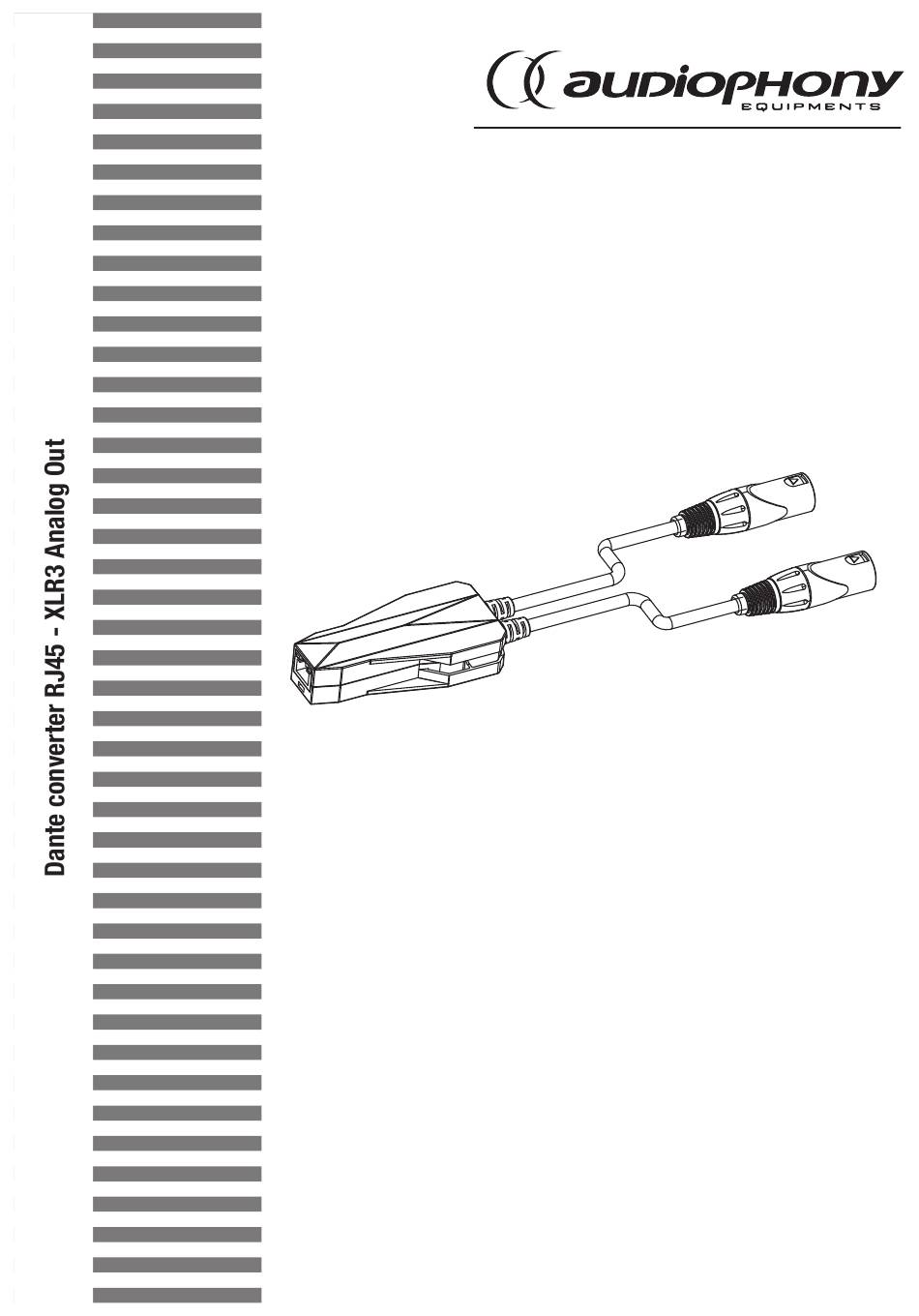

- Page 1 ConvD2out USER GUIDE H11049 - Version 1 / 02-2020...
-
Page 2: Safety Information
ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins-... -
Page 3: Technical Data
ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out 2 - Technical data Maximum output level +4 dBu @ 0 dBFS (balanced) 150 Ohms (balanced) or 75 Ohms Output Impedance (unbalanced) Frequency response 20 Hz à 20 KHz (± 5 dB) -
Page 4: Product Overview
ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out 3 - RJ45 LED indicator for network link status LED status LED sketch Comment Both off No power 10Mbps link detected Solid YELLOW (left) (Note: 10Mbps Ethernet not GREEN off (right) - Page 5 ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out 5 - Software part Required Software for Dante Adapter When using Dante adapter for the fi rst time, Dante Virtual Soundcard and Dante Controller software can be installed from and installed on the computer, and make sure to keep the latest version of the software.
-
Page 6: Connection To The System
ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out 6 - Connection to the system 1. Connect Dante adapter to the POE switch already connected to the network. POE switch Dante adapter 2. If there is not a PoE switch available, please connect Dante adapter to the POE injector, then connect PoE injector to a common switch already connected to your Dante network. - Page 7 ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out 3. Ensure LED is solid on the RJ45 port of Dante adapter (Blinking yellow, solid Green) Yellow (left) Green (right) 4. Connect Dante adapter to audio device and computer ► Connect the XLR MALE of Dante adapter to analog input connector of audio device.
- Page 8 ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out 7 - Audio Signal Routing Open Dante Controller, view the Primary Address via Device Info , the IP Address of Dante adapter is in the same subnet as the computer.
- Page 9 ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out 7 - FAQS Can Dante devices be daisy chained? In most cases the answer is “no”. Dante devices are connected via a network switch, which most often means a “star” topology.
- Page 10 ® Because AUDIOPHONY takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
