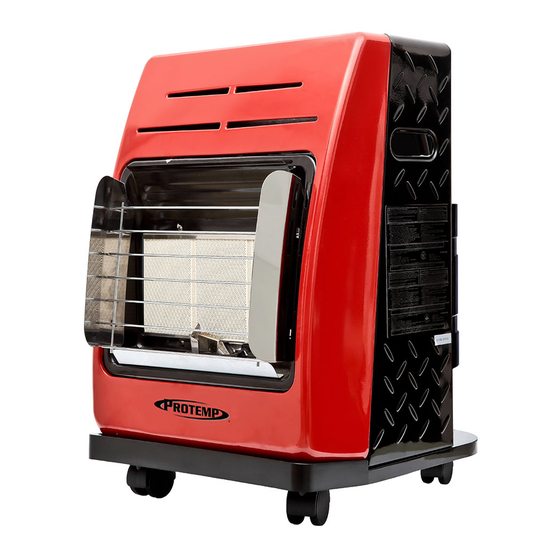

Cabinet heater

Advertisement

Quick Links

CONSUMER: READ AND SAVE THESE INSTRUCTIONS
DANGER
RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE
FROM HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON MONOXIDE
POISONING AND / OR ELECTRIC SHOCK. ONLY PERSONS WHO CAN UNDERSTAND
AND FOLLOW THE INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER. IF YOU
NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS
MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.
WARNING
RECOMMENDED BY THESE INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH
DO OR MAY CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS
GASOLINE, SOLVENTS, PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
WARNING
DANGER
as a tent, a camper, any vehicle or recreational vehicle (RV), enclosed shelter, or any other
enclosed areas.
DANGER
Factory ID: 522
®
Model Numbers
PT-18-PCH-A
Safety Information
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND
INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN
FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR
CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
Carbon Monoxide Hazard This heater produces carbon
monoxide, which has no odor. Burning the heater in an enclosed
space can kill you. Never use the heater in enclosed spaces such
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or
loss of life.
CABINET HEATER
User's Manual &
Operating Instructions
1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free (800) 779-3267
Fax: 320-251-2922 • Web: www.protemp.us • Email: info@pinnacleclimate.com
© 2017 Pinnacle Climate Technologies, Inc.
PTCA-401
