Prism PLG 8000 RGB Dial Quick Start Manual

PLG 8000 RGB
Dial Controller

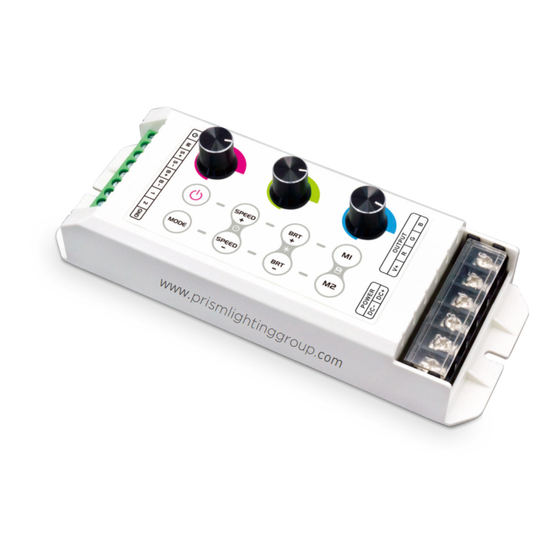

Prism Lighting Group introduces the PLG-8000 multi-functional RGB dial controller. It has 8
touch function keys, built-in 25 color changing modes, brightness and speed are also adjustable.
With the three specially designed RGB knobs, color mixing becomes very simple and convenient.
You can now manually adjust each of the 3 primary colors to achieve the pantone you are
looking for, this controller is far superior to other RGB manual adjust controllers.

1. Product Parameter:

PLG-8000-RGB-Dial
Input Voltage: 5~24V DC
Max Current Load: 8A × 3CH Max 24A
Max Power Load: 120W/288W/576W
(5V/12V/24V)
Function Mode: 25 Modes
Working Temp.: - 3 0 ℃ ~55 ℃
Dimensions: L170×W64×H44(mm)
Package Size: L173×W67×H47(mm)
Weight (G.W.):
220g

2. Product Size:

3. Detailed Key Functions:

RGB 3CH Knobs
8 Keys' External
Connection Port
On/Off Mode

3.1 Knob's Other Function:

In knob controlling mode, "BRT +/ -" is also available to adjust the overall brightness.
3.2 Keys' Other Functions:
A. Long press On/Off, the buzzer can be on or off.
B. Long press MODE to auto loop play the 25 modes.
C. Long press SPEED+ the speed of all modes will restore to default status;
,
Long press SPEED- speed of the current mode will restore to default status.
, the
LED Lamps
Connection Socket
Power Input
Socket
Brightness+
Scene- mode Keys
Brightness-
(Short press to play,
long press 2s to save)
Speed+/Speed-
