MSTRONIC PSE-SW3B44DB User Manual

3 port poe switch & extender
Hide thumbs

Advertisement

Quick Links

Download this manual
PSE-SW3B44DB
3 Port PoE Switch & Extender
(Repeat Ethernet and PoE)
USER'S MANUAL
MSTRONIC CO., LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSE-SW3B44DB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MSTRONIC PSE-SW3B44DB

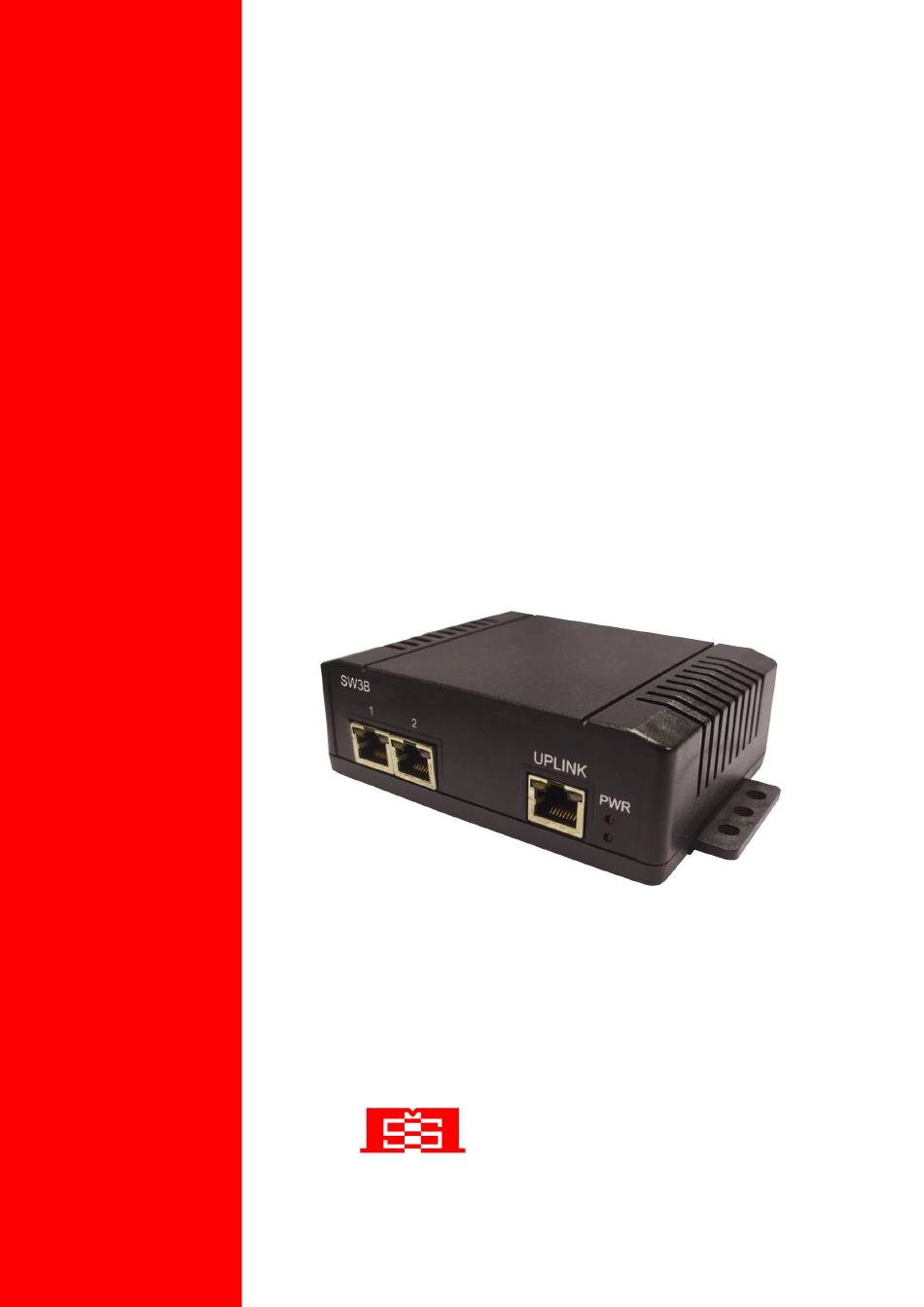

  • Page 1 PSE-SW3B44DB 3 Port PoE Switch & Extender (Repeat Ethernet and PoE) USER’S MANUAL MSTRONIC CO., LTD.

  • Page 2: Table Of Contents

    User’s Manual PSE-SW3B44DB 1. General Information.............. 2. Hardware Description............LED Indicators..................Power Wiring ..................Ethernet Port Wiring................PD Port Wiring..................Network Application……………………………………......3. Technical Specification............MSTRONIC CO., LTD.

  • Page 3: General Information

    2. Hardware Description *LED Indicator There are 8 LEDs on the PoE switch to indicate the status of power and signal. The following section describes the functions of each LED indicator. Front panel detail MSTRONIC CO., LTD.
  • Page 4 1000Mbps. Yellow A network device is detected (10Mbps or 100Mbps), but no communication activity is detected. Yellow This port is transmitting to, or receiving Blinking package from another device at 10Mbps or 100Mbps. No device is detected. MSTRONIC CO., LTD.

  • Page 5: Power Wiring

    * Data pair A plus V- on line 1 and 2 * Data pair B plus V+ on line 3 and 6 * Data pair C plus V+ on line 4 and 5 * Data pair D plus V- on line 7 and 8 MSTRONIC CO., LTD.
  • Page 6 * Data pair B plus V-/V+ on line 3 and 6 * Data pair C plus V+/V- on line 4 and 5 * Data pair D plus V-/V+ on line 7 and 8 The terminal block on rear panel should be wiring as: MSTRONIC CO., LTD.

  • Page 7: Ethernet Port Wiring

    Straight-through Cabling Pin 1 Pin 1 Pin 2 Pin 2 Pin 3 Pin 3 Pin 6 Pin 6 Pin 4 Pin 4 Pin 5 Pin 5 Pin 7 Pin 7 Pin 8 Pin 8 MSTRONIC CO., LTD.
  • Page 8 If a port LED is off, go back and check for connectivity problems between that port and the network device connected. The maximum cable length for 10/100/1000BaseT with Cat 5 twisted pair cables is typically 100m (328 ft.). MSTRONIC CO., LTD.

  • Page 9: Pd Port Wiring

    PoE LED will light up when the cable is correctly connected. Refer to the LED Indicator section for descriptions of each LED indicator. If a port LED is off, go back and check for connectivity problems between that port and the network device connected. MSTRONIC CO., LTD.

  • Page 10: Network Application

    IEEE 802.3af/at standard in the network. The PoE Switch can be installed in a more appropriate position for better performance to extend Ethernet to 200 meters. The following figure is an example of a network application for PoE Switch. MSTRONIC CO., LTD.

  • Page 11: Technical Specification

    C plusV+(4,5), & data pair D plus V-(7,8) Port UPLINK, 4 pairs PD Maximum PoE output Port 1-2: IEEE802.3af – 16.8W IEEE802.3at – 35W IEEE802.3bt class 8 – 90W Maximum PoE input Port UPLINK: 71W (802.3bt class 8) MSTRONIC CO., LTD.
  • Page 12 Port UP LINK from network switch or midspan, or option DC power supply Power consumption less than 5W when without PD loading Operating temperature -20℃~+70℃ Operation humidity 90% relative humidity, non-condensing Storage temperature -40℃~+85℃ Dimension 40mm(H)x116mm(W)x90mm(D) available for DIN RAIL Mounted MSTRONIC CO., LTD.
