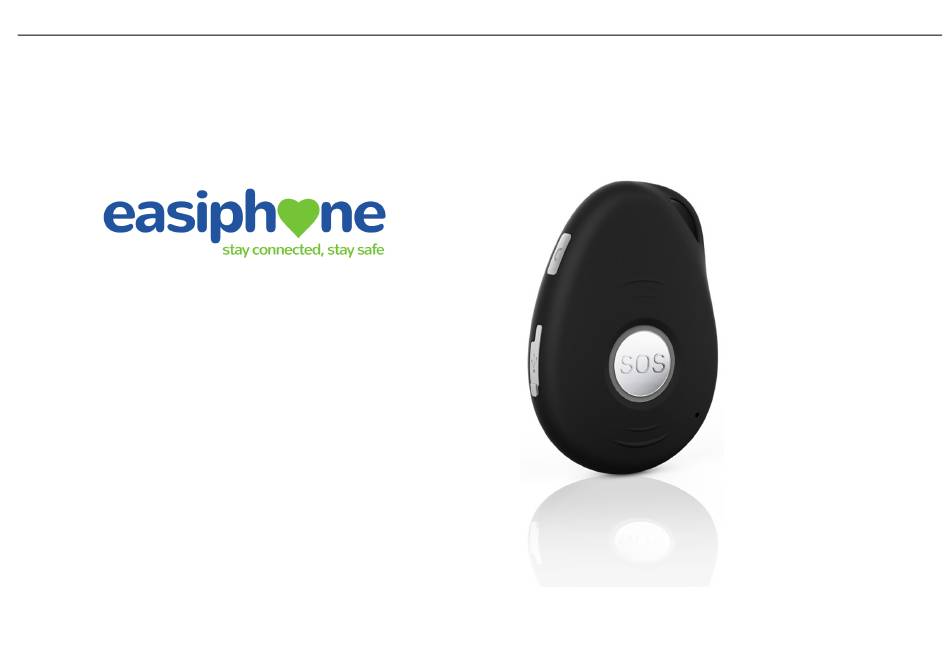

GPS tracking system
ET017 USER GUIDE
GPS TRACKING SYSTEM
Product Overview
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET017 and is the answer not in the manual?

Questions and answers

Related Manuals for Easiphone ET017

Summary of Contents for Easiphone ET017

  • Page 1 GPS tracking system ET017 USER GUIDE GPS TRACKING SYSTEM Product Overview - 1 -...
  • Page 2 GPS tracking system Thank you for purchasing ET07S. This device is a waterproof IPX66, innovative miniature size personal remote positioning device with built-in U-blox GPS and GSM/GPRS technology. It’s for monitoring and protecting people and property. It can be used in all walks of life from traveling lone workers and mobile nursing staff to children and the elderly, Dementia etc.
  • Page 3 GPS tracking system SIM card Installation The SIM card is not included in the package. A Micro SIM card is available from the user's local operator. Unscrew the back cover and remove the cover. Insert SIM card and make sure it’s activated with credits - 3 -...

  • Page 4: Device Charging

    GPS tracking system Put the cover back and tighten the screws. Note: Before installing the SIM card, check if the SIM card has PIN code or not, if yes, please use a cell-phone to unlock the card's PIN code. Device Charging For the first time use, please fully charge the battery for around 2~3 hours Using the USB charger or using docking station to charge Place the device on the docking station.

  • Page 5: Configuration And Operation By Sms

    GPS tracking system GSM LED--GREEN Light shows a single flash rapidly every 3 Light shows a double flash rapidly Light shows a slow flash every 3 Light Solid (not flashing) seconds every 3 seconds seconds State The device is connected to the GSM The device is registered to the The device is connecting to the No SIM Card is detected...
  • Page 6 GPS tracking system Command: A1 or A1,phone number Note: With no spaces in the text, case-insensitive. Example: A1 or a1,123456789 Using your mobile phone, send A1 to the phone number of the device, it will reply: ·Set mobile number 1 OK! ※...
  • Page 7 GPS tracking system maps.google.com/maps?q=loc:22.647379,114.030998 ※Put coordinates to Google earth or Google maps. Click on search button, then you will find the position fixed. ※Click on the link then the location can be shown directly on Google Map on your mobile phone. 4.2 Reply with Address Command: Notes: This function needs GPRS function support.
  • Page 8 GPS tracking system Y=1 means to turn on the function Z=1 means to set alarm when the tracker enters the preset area Z=0 means to set alarm when the tracker breaches the district is the preset distance to the tracker’s original place, must be 3 digitals. M means meters, KM means kilometers The device will send the message to the authorized numbers as “Geo fence alarm!+GPS info”...
  • Page 9 GPS tracking system A1, B1, C1 can make a silence call to the tracker, the track answers the call automatically and allows the caller to hear what is happening around the tracker. There is no voice indication that the call is in progress. To turn off this function, please send to the device.
  • Page 10 GPS tracking system Device 5 working modes 1. Live Tracking Mode (1) Command: In this mode, Both GSM and GPS are on all the time, Battery can last 18~24 hours. 2. Smart Power Saving Mode (2) (default working mode) Command: In this mode, the gsm chip is working and receives calls, SMS and transmits location.

  • Page 11: Gprs Setting

    GPS tracking system predefined e-mail address. How to connect device to the platform for real time tracking via GPRS 1. Get IMEI number Command: version The device will reply” IMEI: 123456789123456; GSM CSQ:xxxx; Soft:V07.20.10.1345” 2. Go to the website www.smart-tracking.com and login with your account.
  • Page 12 GPS tracking system Disable GPRS Command: The device will reply “GPRS OFF”. Reconnect GPRS Reconnect the website via GPRS for real time tracking, please send Check APN & IP, Port Command: The device will reply “APN: internet; Name: xxx; Password: xxxx; Port: 5050; IP:www.smart-tracking.com” Change IP and Port Command: IP1,IP/domain name,port...

  • Page 13: Hardware Specification

    GPS tracking system Cautions: Please comply with the instructions to extend the unit life: 1. Don’t use & store the unit in dusty places. 2. Don’t put the unit in overheated or over cooled places. 3. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent. 4.
