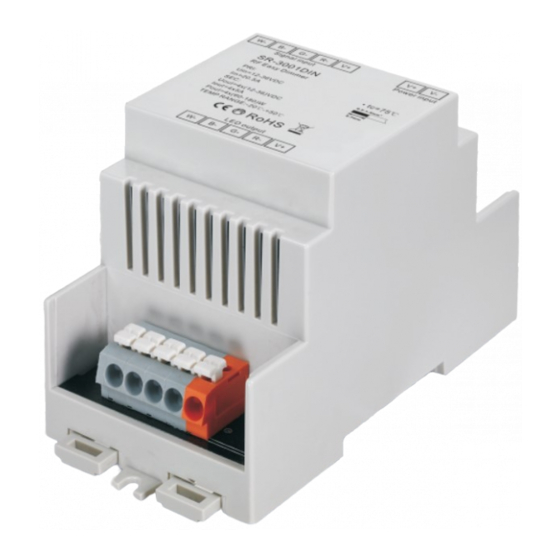

Synergy 21 SR-3001DIN Quick Manual

Power Repeater / Amplier

Feature

Repeater dimming signal
One channel/three channel/four channel optional
Constant voltage
To receive PWM signal control
Power repeater in series to expand output unlimitedly

Parameter

Part No. INPUT
12-36VDC
SR-3001DIN

Product Size

53.0
SR-3001DIN
5
ISO9001：2008
DIMENSIONS
CURRENT OUTPUT
3/4x5A 3/4x(60-180)W
105.5x53x65
65.0

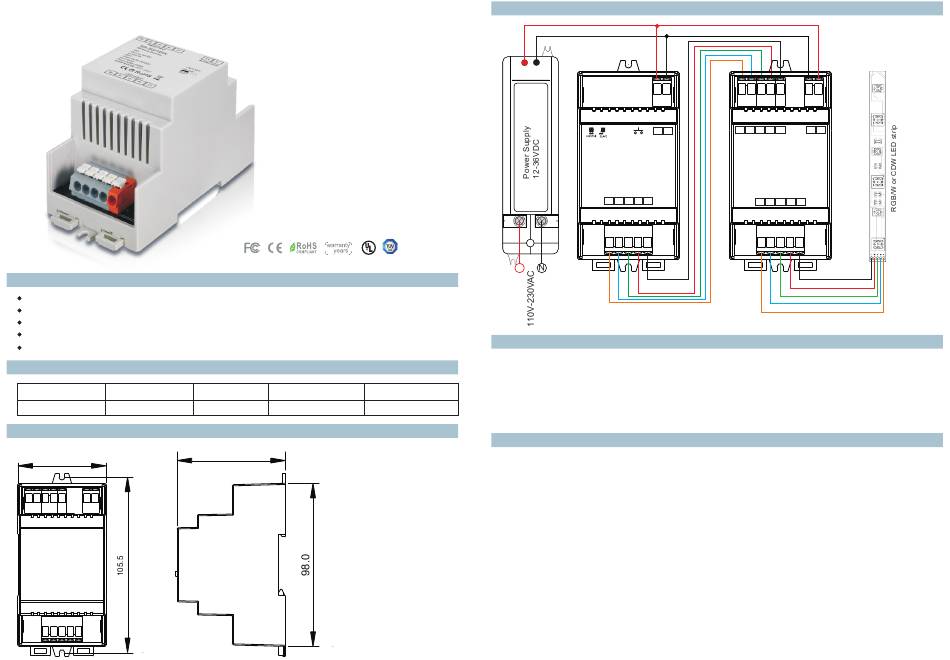

Wiring diagram

L

Operation Manual

LED power repeater is suitable for all of our single color & RGB controllers to expand power output, it supports
PWM control and can connect one to three times more LEDs by adding one more power repeater, and unlimited
power repeaters can be connected together theoretically.
ø/h (mm)
The constant voltage power repeater and constant current power repeaters can be connected together, which
is convenient for controlling LEDs with different voltage and power.
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6) Please ensure that the cable is secured tightly in the connector
7) For update information please consult your supplier.
W- B- G- R- V+
V+ V-
Signal input
Learning key Power input
RF Receiver
SR-3001
LED output
W-/4 B-/3 G-/2 R-/1 +
W- B- G-
V+ V-
Power input
R- V+
