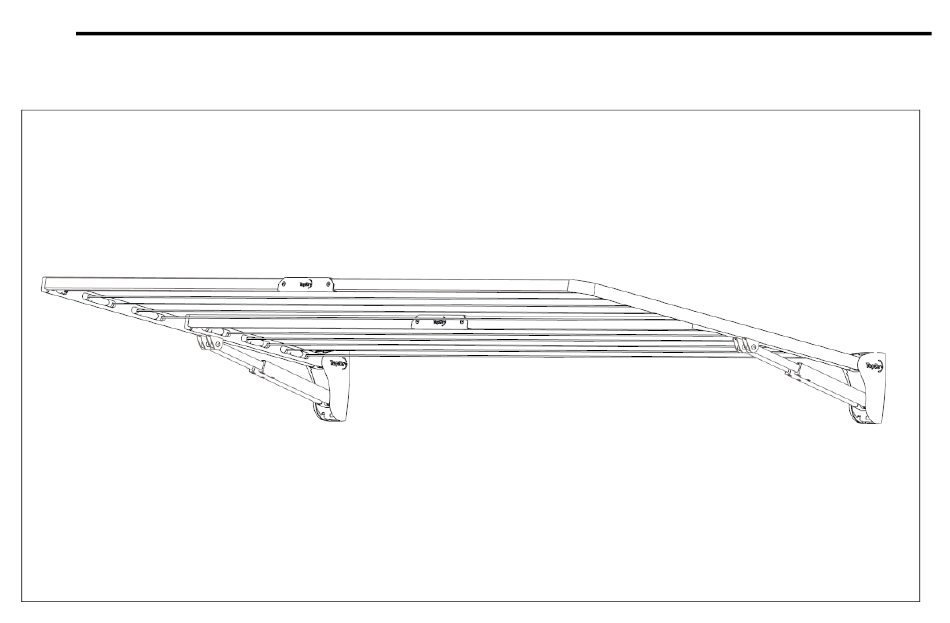

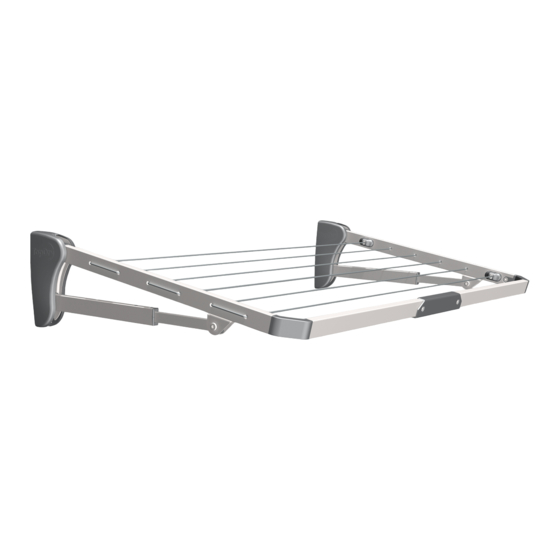

- Page 1 TopDry Product Manual Contempo Folding Clothesline Range (Mini, Slim, Long, Double, Single) IMPORTANT – READ THESE INSTRUCTIONS BEFORE USING YOUR CLOTHESLINE...
- Page 3 Safety Tips Only use your clothesline to hang and dry washing. Remember the clothesline is not a children’s toy Don’t use your clothesline if it is damaged Note the following for future reference Product Name Date of purchase: Place of purchase: Introduction...
- Page 4 Package Contents of the Top Dry Contempo Double Folding 11 line...
- Page 5 Package Contents of the Top Dry Contempo Double Folding 11 line Item Description Item Description Front Bar Outer Left Hand Corner Inner Cover Front Bar Outer Right Hand Line Hook Cover - Long Front Bar Inner Left Hand Line Hook Cover - Short Front Bar Inner Right Hand Tensioner Cover Arm Outer Left Hand...
- Page 6 Package Contents of the Top Dry Contempo Single Folding 10 line...
- Page 7 Package Contents of the Top Dry Contempo Single Folding 10 line Item Description Item Description Front Bar Left Hand Arm End Cap Front Bar Right Hand Strut End Cap Arm Left Hand Front Bar Joiner Arm Right Hand Front Bar Handle Wall Bracket Chicago Bolt - Male Wall Bracket Cover Left Hand...
- Page 8 Package Contents of the Top Dry Contempo Long Folding 6 line...
- Page 9 Package Contents of the Top Dry Contempo Long Folding 6 line Item Description Item Description Front Bar End Left Hand Arm End Cap Front Bar End Right Hand Strut End Cap Front Bar Centre Front Bar Joiner Arm Left Hand Front Bar Handle Arm Right Hand Chicago Bolt - Male...
- Page 10 Package Contents of the Top Dry Contempo Slim Folding 6 line...
- Page 11 Package Contents of the Top Dry Contempo Slim Folding 6 line Item Description Item Description Front Bar Left Hand Strut End Cap Front Bar Right Hand Front Bar Joiner Arm Left Hand Front Bar Handle Arm Right Hand Chicago Bolt - Male Wall Bracket Chicago Bolt - Female Wall Bracket Cover Left Hand...
- Page 12 Package Contents of the Top Dry Contempo Mini Folding 6 line...
- Page 13 Package Contents of the Top Dry Contempo Mini Folding 6 line Item Description Item Description Front Bar Strut End Cap Arm Left Hand Front Bar Handle Arm Right Hand Chicago Bolt - Male Wall Bracket Chicago Bolt - Female Wall Bracket Cover Left Hand...
- Page 14 1. Choose the Installation Location Attach the Wall Brackets to the wall positioned so that the top of the bracket is 50mm below the user’s height. Leave clearance around the clothesline. We recommend 300mm on either side and 500mm above. For Double and Single Clotheslines ensure that the top of the wall brackets are at least 1.3m above the ground so that there is space for the arms to fold down for storage.
- Page 15 2. Mount the Wall Brackets To securely attach the wall brackets to a brick wall ensure that you only drill into brick. Do not drill into the gaps-between bricks. Make sure the wall is of a solid construction. Measure out the dimensions and use the wall brackets as a guide to check that your hole positions are correct before drilling. Use fasteners suitable for the wall.
- Page 16 8. Clip on the final outer cover. 9. Repeat for the other side Note: The instructions and images are for the TOPDRY Double folding frame. The TOPDRY Single, Slim, Mini and Long Folding Frames do not have the inner arms, round spacers or cover inserts.
- Page 17 Left hand side...
- Page 18 Right hand side...
- Page 19 The TOPDRY Long Folding frame has Front Bar made with two End Bars and one Centre Bar assembled with joiners and handles as shown. The TOPDRY Double Folding frame has two Front Bars, an inner and an outer. The Inner Bar is made from two shorter pieces and one Joiner, the Outer Bar from two longer pieces and one Joiner.
- Page 20 4. Insert the second screw and tighten. Note: TOPDRY Long Folding Frame - repeat this process for the second joiner. TOPDRY Mini Folding Frame - a joiner is not needed. Use the screws supplied to assemble the Handle to the Front Bar. Step 1 Step 2...
- Page 21 Step 3 Step 4...
- Page 22 5. Assemble the Corners to the Front Bar Push two nuts into each corner Insert the Corner into the Front Bar. Align the recess in the Bar with the recess in the Corner Secure the Corner and Inner Cover to the Bar with the screw. Repeat for the other end Step 1 Step 2...
- Page 23 6. Assemble the Front Bar to the Arms 1. Push the Corner into the end of the Arm. Make sure the Inner Corner Cover is on the outside of the Arm. 2. Secure the corner and inner cover with the screw. 3.
- Page 24 TOPDRY Double uses small Line Hook Covers on the inner frame and large Line Hook Covers on the outer frame. Line Hooks are not used for TOPDRY Slim, Long and Mini. Instead, thread the line through the frame to the outside of the arm and then back through the frame at the next hole to the inside of the frame.
- Page 25 Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 Step 8...
-
Page 26: Operation
Product Features Multi Position Struts The strut locking mechanism allows the Folding Frame clothesline to be positioned in one of three ways. 1. Locked open at maximum height. Great for drying large sheets and towels 2. Locked open at low height. Perfect for hanging out small items 3. - Page 27 Low Height Closed Position Maximum Height...
- Page 28 Product Features Coat Hanger Racks TOPDRY Double and Single Folding Frame clotheslines have Coat Hanger Racks located on the inside of the Front Bars. These racks provide a secure place to hang coat hangers for drying shirts and trousers. Operation To use the Coat hanger rack, pivot it downwards to unlock it from its stored position.
- Page 29 To prevent marks on white clothing, towels and sheets ensure the lines are regularly wiped clean of dust Regularly check your clothesline for damage or wear and tear and that all screws are tight. If parts need to be replaced do so before further use and always use genuine TOPDRY spare parts.
-
Page 30: Warranty Terms And Conditions
Warranty - Terms and Conditions Any claim under this warranty must be made within ten years of the date of purchase of the product. Please note that the PVC line is only covered for 12 months from date of purchase. To make a claim under the warranty, take the product (with proof of purchase) to any Bunnings store (see www.bunnings.com.au for store locations). - Page 32 BQ00823b...
