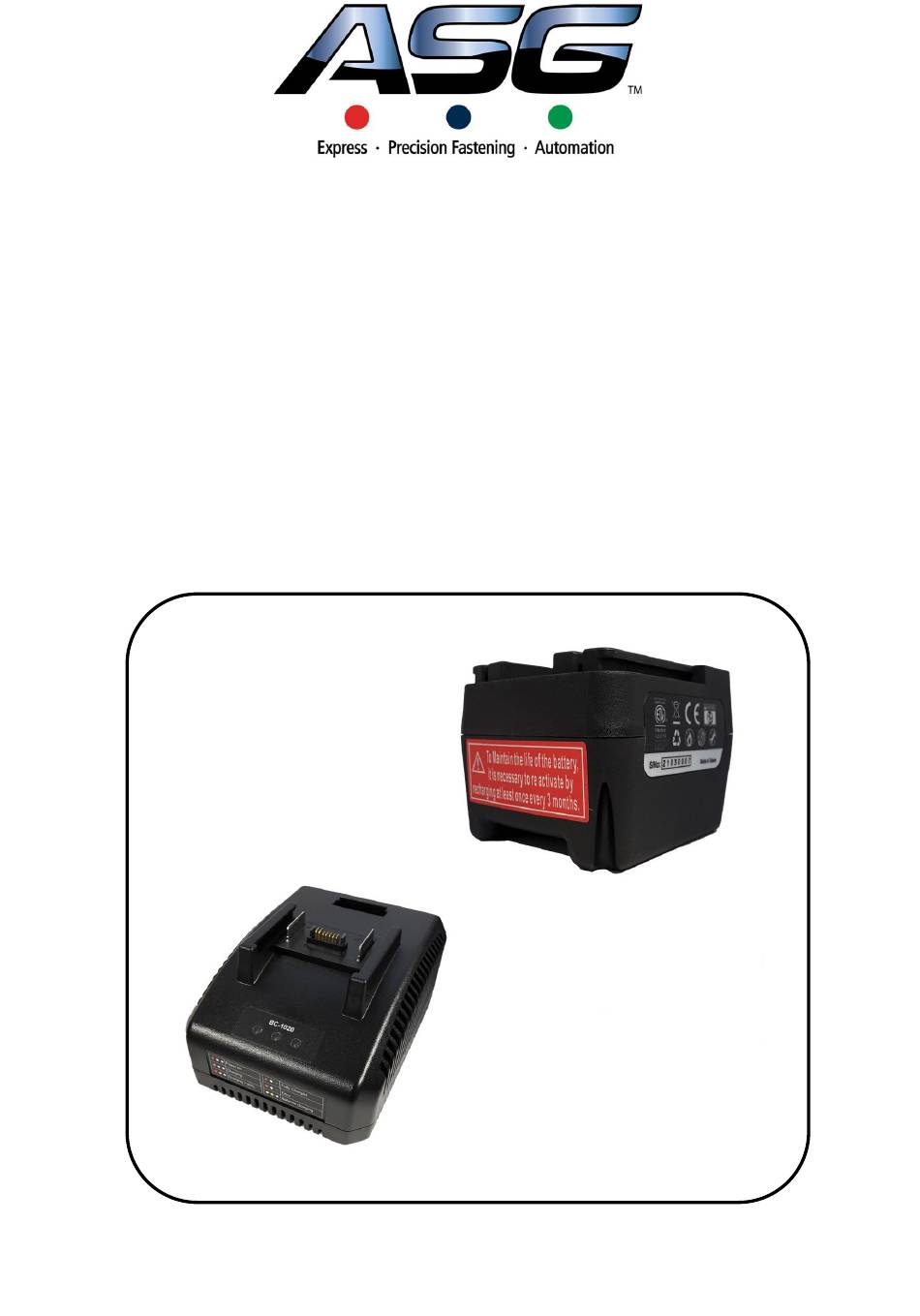

- Page 1 OPERATION AND MAINTENANCE MANUAL BB-2020, BB-2030 & BB-2040 ITEM NOs.: 18V Li-ion BATTERY BC-1020 & BC-1040 ITEM NOs.: 21V Li-ion BATTERY CHARGER...
- Page 2 8. Please read all instructions carefully before operating the charger. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. 9. It is forbidden to use a different brand of battery other then ASG on the charger or to disassemble and/or modify the charger.
- Page 3 4. Please do not plug in the charger in damp or wet conditions. 5. Disassembly or modification of the charger or battery may cause danger or malfunction. 6. This charger only applies to the rechargeable ASG battery. Please do not apply the charger to other different brand of battery.
- Page 4 2. Current protection 3. Shortage protection (fuse implement) 4. Battery reverse current protection 5. BC-1020/BC-1040 Built-in ID recognition feature protection 6. Temperature protection Temperature protection detail explanation (1) When the battery temperature is between 0-10℃, the charger will use low current to pre-charge the battery until the battery temperature is higher than 10℃.

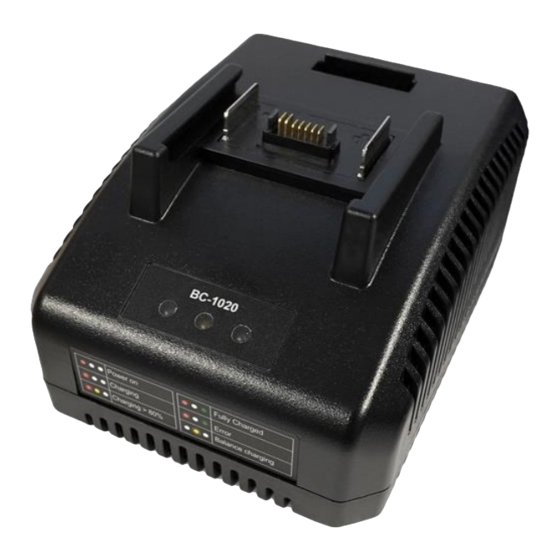

- Page 5 BC-1020 Display Description Yellow Description Beeps Green light Red light light Charging under 80% ---- Flash Charging over 80% ---- Flash Light Display Charging Three seconds Warning Complete100% long beep Beep Continuous short Charging Error Flash Flash beeps ID matched...
- Page 6 Specification Charger Station Model BC-1040 BC-1020 Battery Identification Input Voltage 100V – 240VAC / 0.5A~1.2A Output Voltage 21VDC Output Current 3.2A W ＊ L ＊ H 145mm＊115mm＊80mm Dimension Weight 550g 530g Battery Type Li-ion Battery Applicable Battery Models Charging Time...
