Summary of Contents for Sitepower SP950

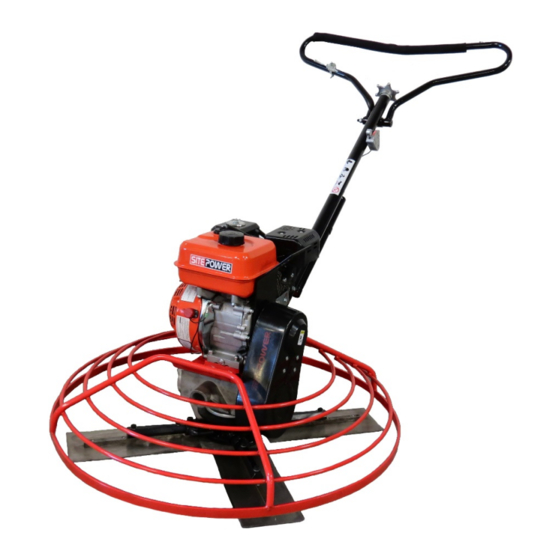

- Page 1 Before using the SitePower™ SP950 Walk-Behind Concrete Power Trowel, please read this manual carefully. OPERATION INSTRUCTION Trowel Walk-Behind Concrete Power SP950...
-
Page 2: Table Of Contents
Table of Contents 1. Foreword………………………………………………………………………………… 2. Safety Information……………………………………………………………………… 2.1. Laws Pertaining to Spark Arresters……………………….………………… 4 2.2. Operating Safely……………………………………….……………………… 4 2.3. Operator Safely while using Internal Combustion Engine……..………… 2.4. Service Safety………………….……………………………………………… 6 3. Technical Data…………………………………………………………………………… 7 3.1. Engine Data………………………………………………….………………… 7 3.2. Machine Data…....…………………………………………………. -
Page 3: Foreword
Keep this manual or a copy of it with the machine. If you lose this manual or need an additional copy, please contact SitePower. This machine is built with user safety in mind; however, it can present hazards if improperly operated and serviced. Follow operating instructions carefully! If you have questions about operating or servicing this equipment, please contact SitePower. -
Page 4: Laws Pertaining To Spark Arresters
These areas get hot and may cause burns. 2.2.3 NEVER use accessories or attachments that are not recommended by SitePower. Damage to equipment and injury to the user may result. 2.2.4 NEVER operate the machine with the beltguard missing. Exposed drive belt and pulleys create potentially dangerous hazards that can cause serious injuries. -
Page 5: Operator Safely While Using Internal Combustion Engine
2.2.7 ALWAYS wear protective clothing appropriate to the job site when operating equipment. 2.2.8 ALWAYS wear hearing protection when operating equipment. 2.2.9 ALWAYS close fuel valve on engines equipped with one when machine is not being operated. 2.2.10 ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children. -
Page 6: Service Safety
A hot muffler could ignite them, starting a fire. 2.4.6 ALWAYS replace worn or damaged components with spare parts designed and recommended by SitePower. 2.4.7 ALWAYS disconnect spark plug on machines equipped with gasoline engines, before servicing, to avoid accidental start-up. -
Page 7: Technical Data
3. Technical Data 3.1 Engine Data Engine Engine Make BRIGGS&STRATTON Engine Model BS1062 Rated Power kW (Hp) 4.1 (5.5) Engine Speed - full 3600 ± 100 Engine Speed - idle 1600 ± 100 Clutch Engagement 2100 Spark Plug type NGK BPR 6ES Electrode Gap mm (in) 0.7-0.8 (0.028-0.031) Air Cleaner... -
Page 8: Operation
4. Operation 4.1 Application This trowel is a modern, high production machine intended for floating and finishing freshly poured concrete slabs. The machine's good balance, adjustable handle, and easily reached controls add to operator comfort and productivity. An automatic Run/Stop Switch, or a combination of an automatic Run/Stop Switch and an Operator Present Lever, provide added operator safety. -
Page 9: Installing And Adjusting Handles
4.4.1 New machines are supplied with finish blades as standard equipment. Finish blades are flat on both edges and can be installed in either direction. When installing combination blades, orient blades as shown (a). This positions the raised edges of the blade correctly for the clockwise rotation of the machine. 4.4.2 Secure blades to trowel arms with 1½"... - Page 10 lever prior to using the trowel by starting the trowel and then disengaging the lever— the trowel should stop promptly. See To Start. 4.5.4 Position the handle by loosening the knob (m) and adjusting the handle up or down to suit the operator. Tighten the knob to secure the handle in position. 7.5 cm (3 in.) wc_gr001100 10 cm (4 in.)
-
Page 11: Controls
4.6 Controls Ref. Description Ref. Description Throttle lever Handle adjustment Run/Stop switch Operator present lever Twist pitch control Pro-Shift® pitch control 4.7 Run/Stop Switch The Run/Stop Switch (b) is located on the pipe handle. When the switch is placed in the “I”... -
Page 12: To Stop
4.9.5 Move the throttle lever to the idle position (a1). Note: The operator present lever must be fully engaged to start and run trowel. If the lever is not engaged, engine will not run. 4.9.6 Engage the operator present lever (e), if so equipped, stand to the side of the machine and pull the starter rope (j). -
Page 13: Maintenance
Personnel other than the trowel operator should not be allowed in the work area, as severe injury can occur from contact with operating trowel blades. It is recommended that each set of work passes be at 90° to the previous set of work passes. -
Page 14: Cleaning Plate
5.2 Cleaning Plate Clean plate after use to remove dirt, stones, and mud caught under the engine console. If plate is being used in a dusty area, check engine cylinder cooling fins for heavy dirt accumulation. Keep engine cylinder fins clean to prevent engine from overheating. 5.3 Drive Belt (Fig. -
Page 15: Spark Plug
5.4.6 Assemble console assembly to baseplate and install belt, belt guard, and hose to water tank. 5.5 SparkPlug (Figure 5) Clean or replace spark plug as needed to ensure proper operation. Refer to the engine owner's manual. The muffler becomes very hot during operation and remains hot for a while after stopping the engine. -
Page 16: Engine Oil
5.6 Engine Oil (Figure 6) 5.6.1 Drain oil while the engine is still warm. 5.6.2 Remove the oil fill plug (a) and drain plug (b) to drain oil. Note: In the interests of environmental protection, place a plastic sheet and a container under the machine to collect any liquid which drains off. -
Page 17: Air Cleaner
5.6 Air Cleaner (Figure 7) CAUTION: NEVER use gasoline or other types of low flash point solvents for cleaning the air cleaner. A fire or explosion could result. CAUTION: NEVER run engine without air cleaner. Severe engine The engine is equipped with a dual element air cleaner. -
Page 18: Cleaning Sediment Cup
5.8 Cleaning Sediment Cup (Figure 8) 5.8.1 Turn fuel valve off. 5.8.2 Remove sediment cup (a) and O-ring (b). 5.8.3 Wash both thoroughly in a nonflammable solvent. Dry and reinstall them. 5.8.4 Turn fuel valve on and check for leaks. 5.8 Carburetor Adjustment (Figure 9) 5.9.1 Start the engine and allow it to warm up to operating temperature. -
Page 19: Storage
5.10 Storage If plate is being stored for more than 30 days: 5.10.1 Remove loose stones and dirt from plate. 5.10.2 Clean engine cylinder cooling fins. 5.10.3 Clean or replace air filter. 5.10.4 Change exciter oil. 5.11 Lifting the Machine See Technical Data for the weight of the machine. -
Page 20: Transporting Machine
5.12 Transporting the Machine To avoid burns or fire hazards, let engine cool before transporting machine or storing indoors. 5.12.1 Turn fuel valve to the off position and keep the engine level to prevent fuel from spilling. 5.12.2 Tie down machine on vehicle to prevent machine from sliding or tipping over.
