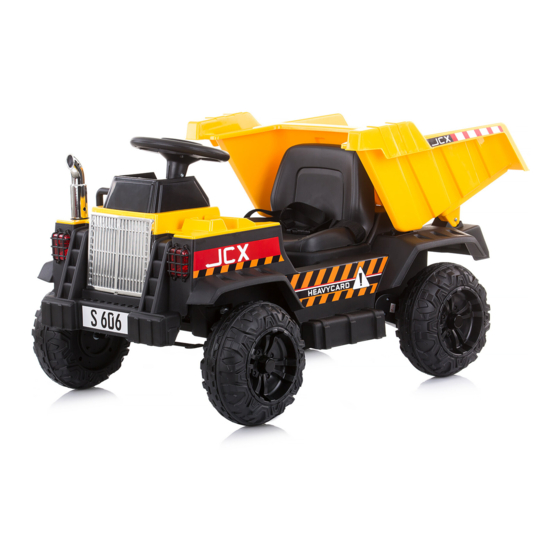

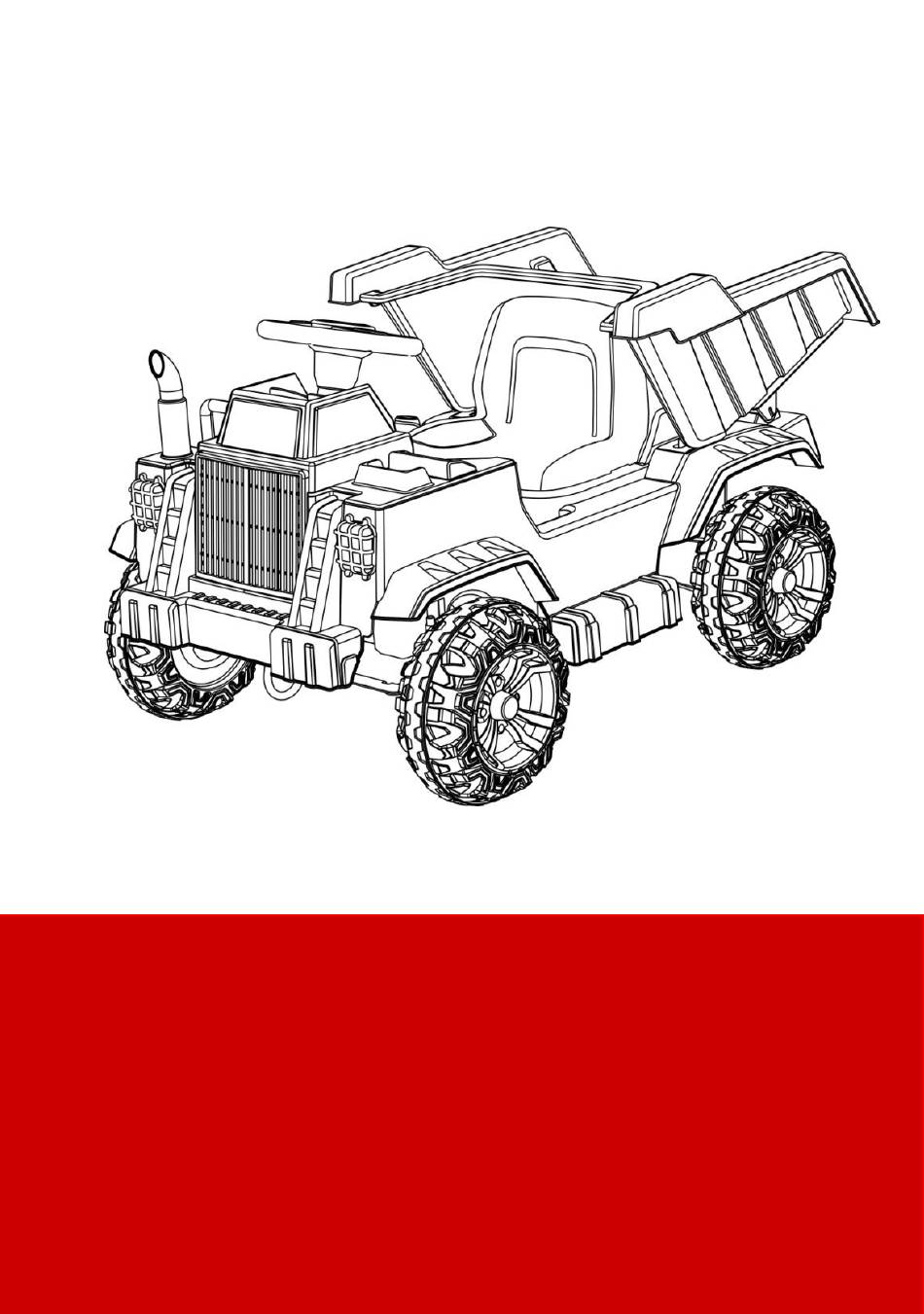

Styles and colors may vary
◎Suitable age for 3+ Years
◎Maximum user weight: 30kg
◎Adult assembly required
OWNER'S MANUAL
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 4-6 hours.
PLEASE READ THE
INSTRUCTIONS
with Assembly Instructions
NO:2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JUMBO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chipolino JUMBO

Summary of Contents for Chipolino JUMBO

  • Page 1 PLEASE READ THE INSTRUCTIONS Styles and colors may vary ◎Suitable age for 3+ Years ◎Maximum user weight: 30kg ◎Adult assembly required OWNER’S MANUAL with Assembly Instructions Read and understand this entire manual before using! Please keep this manual for future reference as it contains important information. Before first time use, charge the battery for at least 4-6 hours.

  • Page 2: Specification

    Specification On the purchase of your new Ride-On 37-96 months Suitable age Under 30KG Load Capacity km/hr Speed 8-12 hours Charge time Size of car 108×64×59cm 300 recharges Battery life Charging type Power way...

  • Page 3: Parts List

    2. Parts List Quantity Number Name Remark Two motors Car bucket Seat（plastic）/（leather） choose Steering wheel Steering wheel trim Chimney Front wheels Rear wheels Wheel cap Steering iron Steering rod Rear axle Driving motor Left / Right Install on the front Ø10 nuts and rear axles Ø10 gasket...

  • Page 4: Parts Diagram

    Parts Diagram...
  • Page 5 Safety PREVENT INJURIES AND DEATHS: ●NEVER LEAVE CHILD UNATTENDED.ADULT DIRECT Always keep child in view when SUNPERVISION IS REQUIRED. child is in vehicle. ●This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties. ●Protective equipment should be worn.

  • Page 6: Operation

    Operation Cotter pin Turn the car back up 1.Insert Ø10 gasket into the steering rod ； 2.Insert the hole of steering iron into the steering rod (either one can be inserted first ); 3.InstallØ10 gasket into the steering rod ； 4.Fixed the Cotter pin;...
  • Page 7 Operation Instruction...
  • Page 8 Operation Instruction Turn the car back up 1.Put an ø10 gasket into the front axle 2.Install the front wheel； 3.Put another ø10 gasket； 4.Fixed with Ф10 nuts； 5.Install the wheel cap； 6.Put the rear axle in as shown； 7.Install the driving motor into the rear axle, connect the motor wire plug to the plug at the motor bayonet, snap the motor into the slot, and plug the wire into the receiver;；...
  • Page 9 Operation Instruction 1. Insert the chimney into the slot of the car body, as shown in the picture; 2. Insert the steering wheel into the steering rod; 3, Put an Ф gasket; 4, Fixed with Ф8 nuts; 5. Insert the Steering wheel trim into the steering wheel;...
  • Page 10 Operation Instruction 1. Find the main power wires and insert the plug-in of the wires into the slot of the receiver. 1. Insert the seat into the car body; 2. Fixed with M4*12 screws;...
  • Page 11 Operation Instruction 1. Power button: turn on or off the power; 2. Forward/backward switch: control the moving direction, forward or backward;Stop switch in the middle; 3. Foot switch: step on the switch, the car moves, release and the car will brake slowly; 4.

  • Page 12: Function Instruction

    Function Instruction Central control panel： 1.Power display: Clearly see the battery power, in order to charge； the smaller the number, the lower the voltage. Please charge in time; 2.Last song/Volume decrease： Change songs, and long press will decrease volume； 3.Play or stop switch; 4.Next song//Volume increase: Change songs, and long press will increase volume；...

  • Page 13: Use The Remote Control

    Use the Remote Control WARNING! Only allow adult to use remote control,can not let the children touch Operation Manual : For the first time to use (Or Replace the battery)Need to frequency bind 、 Take out the remote control,lift the battery compartment door on the ...
  • Page 14 13. Charge 1.Insert the charger jack into the charging hole of the car. 2.Plug the charger plug into the stable matching AC power supply as shown in the picture. ATTENTION: Only an adult can charge and recharge the battery!
  • Page 15 14. Charging ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING!  PREVENT FIRE AND ELECTRIC SHOCK: Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or charger with another brand. Using another battery or charger may cause a fire or explosion.
  • Page 16 rotector Protector This product is equipped with self-reset protector, when overloaded or improper use, self-reset protector will automatically cut off the power supply for 15-20 seconds, and then restart. The self reset protector of the car is installed under the seat. TO avoid losing power,follow these guidelines: ...

  • Page 17: Troubleshooting Guide

    16. Troubleshooting Guide Checkpoint Elimination method Yes， cut off the power for 15-20 seconds and then 1.Is the protector of the vehicle disconnected? restart No，next 2.Does the foot switch connect well? NO，fix the foot switch；Yes，next 3.Is the welding line on the motor terminal NO，Weld the terminal wire well；Yes，next good? No，Plug in plug-ins；Yes，next...
  • Page 18 1.Does the brake Yes ， Press the brake key to relieve the brake function start? function; No，normal 2.Is remote control Remote control Yes，try again;No，Check whether the battery is out electrified? vehicles do not of power and whether the installation is in place. respond Yes，remove the row,reinstall;No，normal 3.Is...
