MAC Panel Dual SCOUT Procedure Sheet

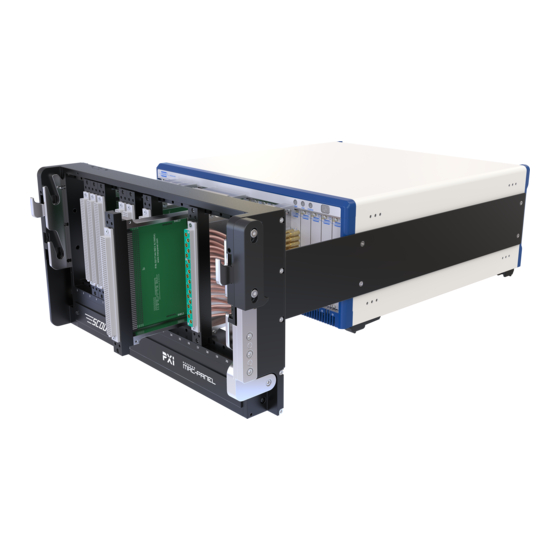

Procedure for assembling and mounting a MAC Panel Dual SCOUT Receiver

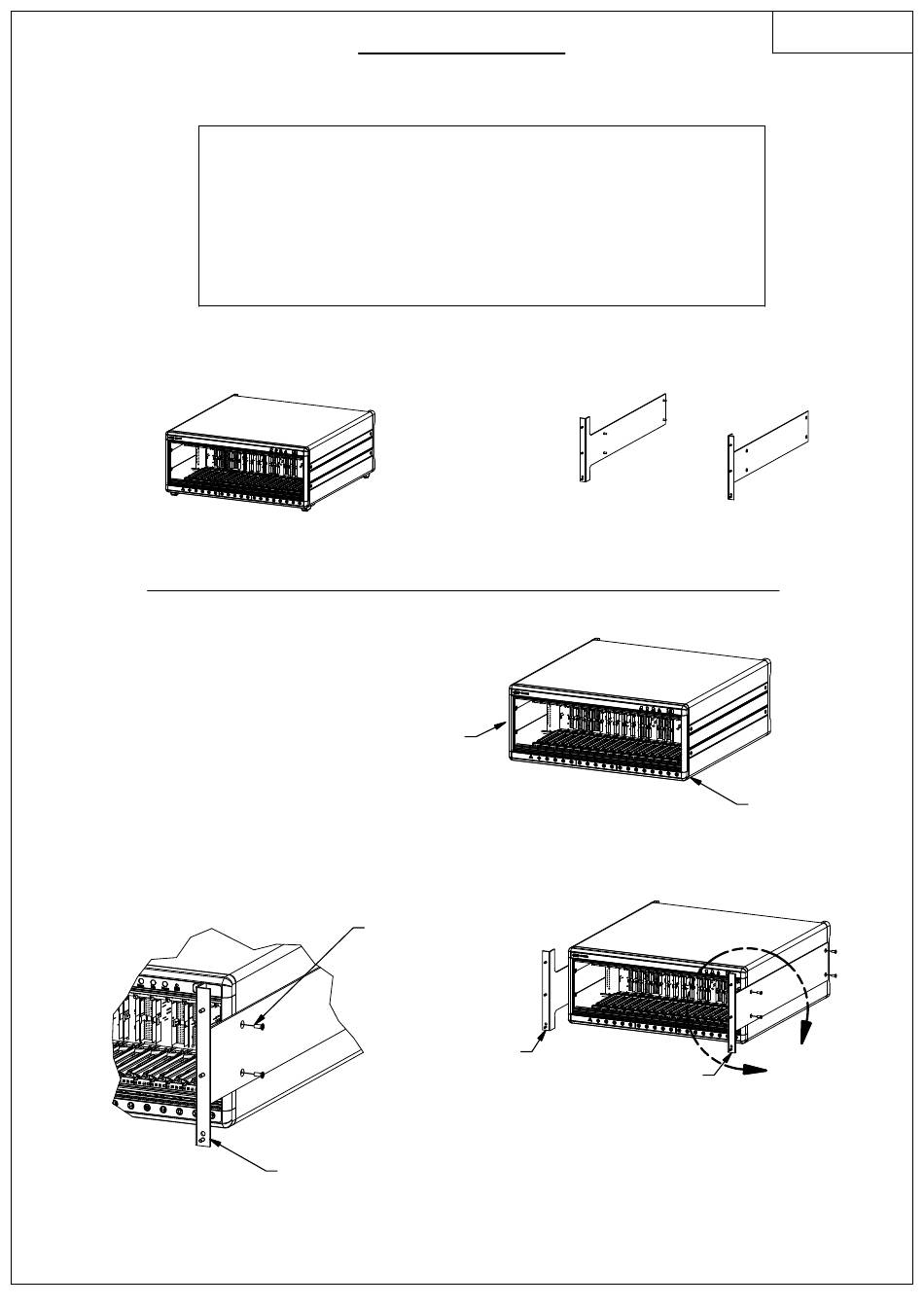

Step 1) Secure flange kits to both chassis.
(Pickering 40-923-001)
Step 1a) Remove feet and handles from both sides
and bottom of the chassis.
Step 1b) Using the screws provided with the flange kit,
Secure both left and right flange plates to the side of the chassis.
* Note the two holes close together go to the bottom *
DETAIL A
Creation Date :1/11/2012
Procedure sheet.
to two Pickering 40-923-001 PXI Chassis' in a 19" Rack.
You will need :
MAC Panel Tier Dual SCOUT Receiver
MAC Panel Flange Kit x 2
MAC Panel Lower slide shelf
MAC Panel Upper slide shelf
Pickering 40-923-001 PXI Chassis x 2
#1 & #2 Philips Screwdrivers
Slide shelf assembly instruction (IN91316 available on website)
19" Rack with 12U of clear space
PXI Chassis x 2
Handle removed.
4 Screws per side
Two holes close together go at bottom
Flange kits are now properly secured to the PXI Chassis'.
Retain supplied screws for later use.
(not visible)
Left flange
plate
(# 561605)
(# 561635)
(# 561637)
(# 561638)
Flange kit x 2
(#561635)
Bottom feet
removed.
Right flange
plate
Sheet No.
IN
91326
A
1 4
of
