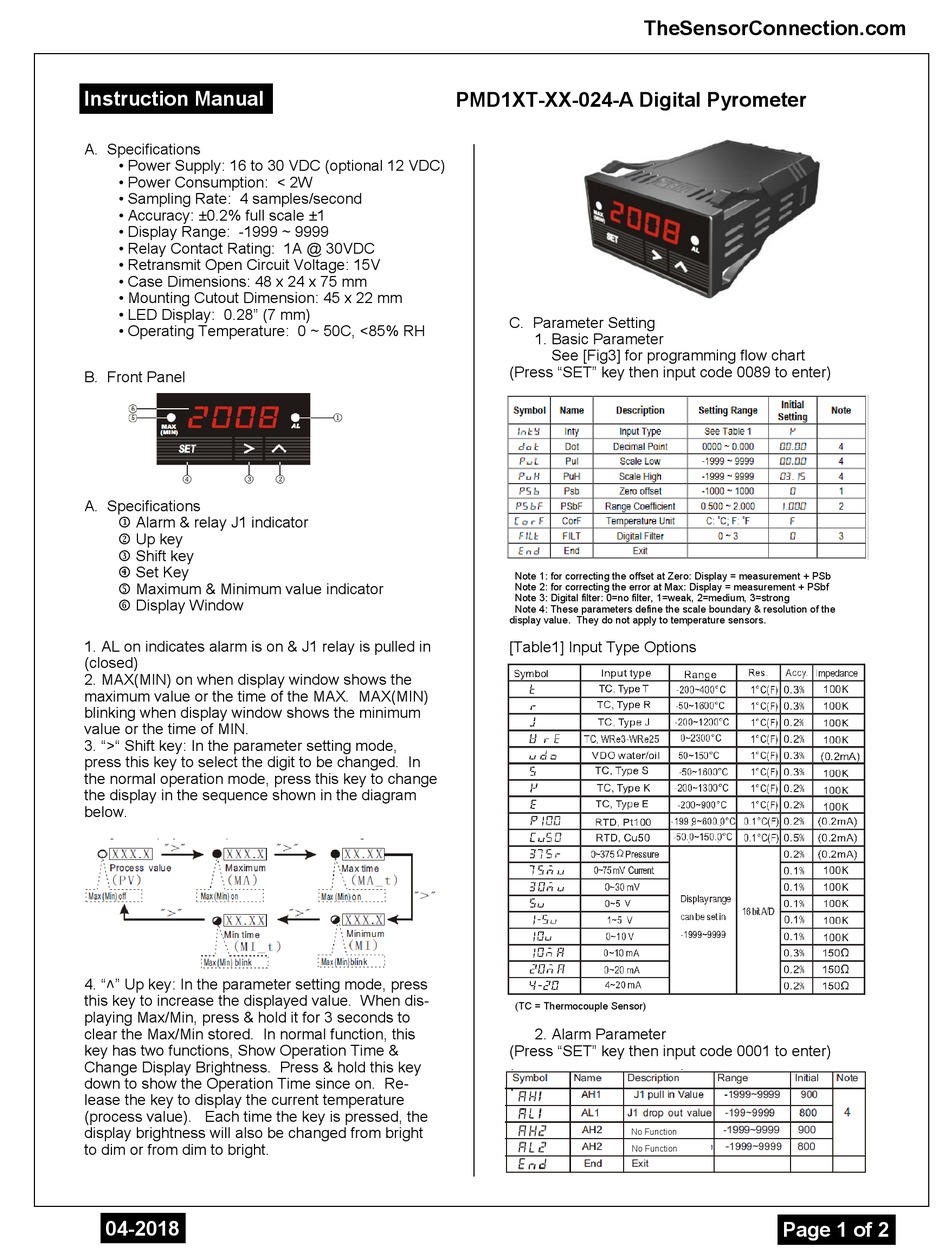

The Sensor Connection PMD1XT-XX-024-A Instruction Manual

Instruction Manual
A. Specifications
• Power Supply: 16 to 30 VDC (optional 12 VDC)
• Power Consumption: < 2W
• Sampling Rate: 4 samples/second
• Accuracy: ±0.2% full scale ±1
• Display Range: -1999 ~ 9999
• Relay Contact Rating: 1A @ 30VDC
• Retransmit Open Circuit Voltage: 15V
• Case Dimensions: 48 x 24 x 75 mm
• Mounting Cutout Dimension: 45 x 22 mm
• LED Display: 0.28" (7 mm)
• Operating Temperature: 0 ~ 50C, <85% RH

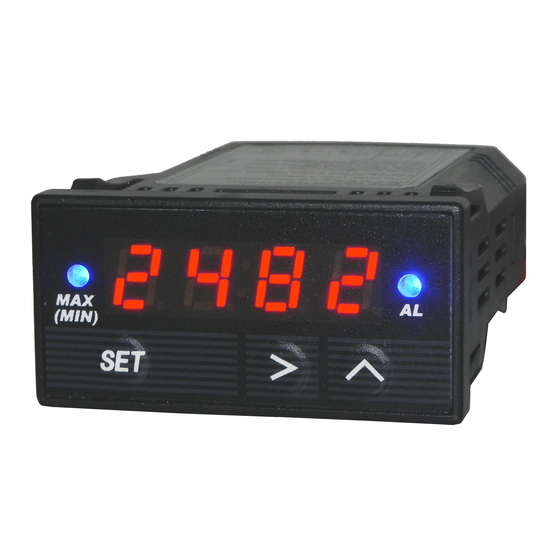

B. Front Panel
A. Specifications
 Alarm & relay J1 indicator
 Up key
 Shift key
 Set Key
 Maximum & Minimum value indicator
 Display Window
1. AL on indicates alarm is on & J1 relay is pulled in
(closed)
2. MAX(MIN) on when display window shows the
maximum value or the time of the MAX. MAX(MIN)
blinking when display window shows the minimum
value or the time of MIN.
3. ">" Shift key: In the parameter setting mode,
press this key to select the digit to be changed. In
the normal operation mode, press this key to change
the display in the sequence shown in the diagram
below.
4. "˄" Up key: In the parameter setting mode, press
this key to increase the displayed value. When dis-
playing Max/Min, press & hold it for 3 seconds to
clear the Max/Min stored. In normal function, this
key has two functions, Show Operation Time &
Change Display Brightness. Press & hold this key
down to show the Operation Time since on. Re-
lease the key to display the current temperature
(process value). Each time the key is pressed, the
display brightness will also be changed from bright
to dim or from dim to bright.
04-2018
PMD1XT-XX-024-A Digital Pyrometer
C. Parameter Setting
1. Basic Parameter
See [Fig3] for programming flow chart
(Press "SET" key then input code 0089 to enter)
Note 1: for correcting the offset at Zero: Display = measurement + PSb
Note 2: for correcting the error at Max: Display = measurement + PSbf
Note 3: Digital filter: 0=no filter, 1=weak, 2=medium, 3=strong
Note 4: These parameters define the scale boundary & resolution of the
display value. They do not apply to temperature sensors.
[Table1] Input Type Options
(TC = Thermocouple Sensor)
2. Alarm Parameter
(Press "SET" key then input code 0001 to enter)
No Function
No Function
TheSensorConnection.com
Page 1 of 2
