Summary of Contents for NCE NCE24SMTDVDBT9.0
- Page 2 Customer will be charged a service call-out fee. d. NCE / or its agent reserves the right to reject claim of service for any item is not packed in original box or equivalent. Customer will be charged a deliver fee based on no original box or equivalent packaging.
- Page 3 NCE and/or its Agents will decide if there are any defects in the material and/or workmanship. This warranty is only applicable for repairs on declared equipment carried out within Mainland Australia. 6. What is NOT covered by this warranty.
- Page 4 12. NCE accepts no liability for items that are lost, damaged, or stolen as a result of freight, transport or storage. If you are required to transport the appliance to an authorized service centre, you must ensure that it is securely packed and insured.
-
Page 5: Table Of Contents
NCE Smart DTV warranty terms conditions Power Supply Installation Use and Maintenance Important Safety Instructions Names of each part/Accessories Names of each part/Back View Remote control First Time lnstallation Select input source TV MENU Picture Sound Channel Function Time Lock... -
Page 6: Power Supply
Power Supply... -
Page 7: Installation
Installation... -
Page 8: Use And Maintenance
Use and Maintenance... -
Page 9: Important Safety Instructions
Important Safety Instructions... - Page 10 Important Safety Instructions gently...
-
Page 11: Names Of Each Part/Accessories
Names of each part Front View 1. INPUT - This button switches between all the different sources of the TV. When the OSD is active, this button acts as the enter button and confirms the menu selection. 2. MENU - This button activates the OSD menu. If a sub-menu is active, pressing this button will return selection to the previous menu level. -
Page 12: Names Of Each Part/Back View
Names of each part Back View RJ45 HDMI1(ARC) HDMI2 CVBS OUT LINE OUT -R RF IN DC IN... -
Page 13: Remote Control
Remote Control Functions of remote control buttons The remote control uses Infra- Red (IR) technology. For best performance, point it directly at the front of the TV. The remote control may not work correctly if it is operated out of range or from an acute angle . 1, POWER: Press for turning the TV On/Off 2, MUTE: Press this button to mute or restore sound POWER... - Page 14 Remote Control POWER MUTE NICAM/A2 AUDIO HOME: Return to the home page MOUSE: turning on/off the mouse in your browser and applications T.SHIFT ANGLE LANG D.SETUP D.MENU HOME MOUSE A-B:Repeats various sections of a playback S.MENU: turning on/off the menu in your browser and applications RECODER S.MENU REPEAT...
-
Page 15: First Time Lnstallation
First Time Installation The Startup Wizard menu contains language settings and network settings. Language settings: you can set the TV operating language. Network settings: you can set according to the connection, wireless network settings WIFI connection, wired connection is to set the local area network. -
Page 16: Select Input Source
Select Input Source Press the “Source” button to display the input source menu, press the left or right button to select the corresponding input source, and press the Enter button to enter the relevant source. TV MENU Press the “menu” button to display the menu, press the up and down keys to select the appropriate settings, press the right button to enter the relevant settings. -
Page 17: Picture
Picture Picture Mode: Use the menu button to call up the menu, then right click to select the "Image Mode" option, press the left and right button to switch the image mode to Standard / Movie / Vivid / User. Aspect Ratio: You can select ZOOM1, ZOOM2, 16:9 or 4:3 with left and right keys when the option of Aspect Ratio is picked.The aspect ration will automatically change in auto mode. -
Page 18: Sound
Sound Sound mode: Use the up and down keys to select the sound menu, then press the right button to select the “Sound Mode” option, press the left and right button to switch the sound mode to Standard/Sports/Music/Movie/User. Equalizer: Through the up and down keys selected "equalizer" option, and then press the OK key system will appear different bandwidth frequency level. -
Page 19: Channel
Channel Auto Search Select option of Auto Tuning under the up and down keys . Then press OK button and the auto tuning will begin. DTV Manual Search To simulate manual search, select the Channel you need to store, and also select the color and sound system. Press the up and down keys to select the “Search”... -
Page 20: Function
Function OSD Time: Press the "menu display time" option, through the left and right direction keys can be changed to 5 seconds, 10 seconds, 15 seconds,30 seconds, always optional. CEC: Press the up and down keys to select the option, and then press the OK key to open the CEC function. When CEC is turned on, you can choose to turn on or off Auto Standby, Auto Power on, ARC, Auto Standby. -
Page 21: Time
Time Date/Current time: This is not adjustable, when there is a signal when the automatic calibration. Sleep time: The system provides OFF/10/20/30/60/90/120/180/240min sleep time to choose from. Auto Standby: The TV will shift to Standby mode in 3H/4H/5H/OFF as you can choose. Lock System Lock Choose with the up and down keys,then open the lock function with left and right keys. - Page 22 Hotel mode In this mode, you can manage the opening and closing of the relevant channels, set the language, screen ratio operatio. Key lock: Press the “key lock” option to turn the menu on or off through the left and right keys. Scan lock: Press the“...
-
Page 23: Media Operation
Media Operation Picture Through the up and down keys to select the "picture" icon, press the confirmation button to confirm, and then press right to the folder, press the confirmation button to open the appropriate folder. After selecting the picture, press the confirmation key to open the picture, can carry on some operation through the left and right keys. -
Page 24: Android Operation
Android Operation Home Press Home button to enter Smart TV interface. The main page is designed with Zeasn UI, divided into: latest news, Featured APP, applications, music, sports. *Different regions will receive different push content Settings Pick the image of setting and Press OK button to appear the interface of the android setting. The following is a brief description of the function of each menu:... -
Page 25: Apps
Set your device name Give your device a name to help identify it when casting or connecting to it from other devices. Network&Internet Enter the "Network" menu item "Wi-Fi", you can open or close the Wi-Fi connection function, there are 4 types of connection: select focus and enter the password in the list of connections, use without-password protected connection, manually add hot name to connect, and point-to-point direct connection. -
Page 26: Software Update
Device Preferences In the Device Preferences, you can see other settings under Android. About: You can view and set the relevant information for Software Update: You can set the software local the OTA update, you can also view the model, Android upgrade, automatically prompt to update the version, version,version number information. -
Page 27: Date&Time
Date&time:The date and time can be updated Language: System language can be selected here. automatically based on the network or time zone, or you can turn off automatic updates and update to manual settings. You can view the currently located time zone and set the time system. -
Page 28: Reset

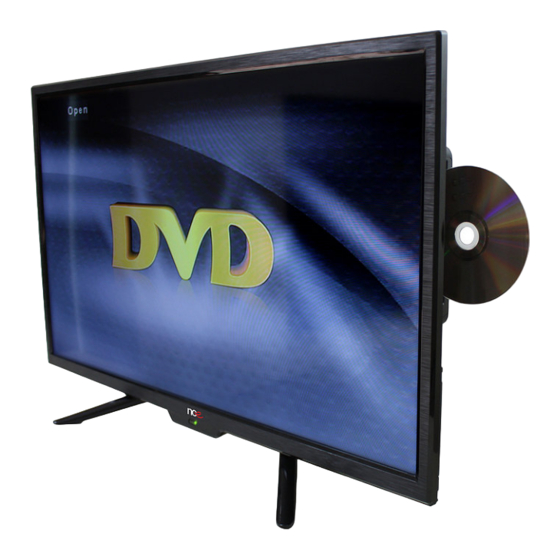

Reset: Here you can reset the unit. After reset, the data of Android system will be cleared. Bluetooth Enter the bluetooth setting menu for bluetooth search and pairing operation. - Page 32 NCE24SMTDVDBT9.0 Model Number Description 24”FHD Smart TV DVD Combo TV System Mode DVB-T/PAL Feature 23.6”/ 60cm Diagonal 16:9 Screen Ratio 1920*1080(Full High Definition) Resolution Brightness(app) 3,000:1 Real Contrast ratio Response Time(MS) Singal Capability 1080P/1080i/720P/576P/480P Wide Viewing Angle(Horizontal/ Vertical 178/178 degree)
- Page 33 FOR CUSTOMER SUPPORT PLEASE CONTACT YOUR DEALER EMAIL NCEWARRANTY@NCE.COM.AU Monday to Friday - AEST 8:00AM - 5:00PM P/N:4.16.0001...
