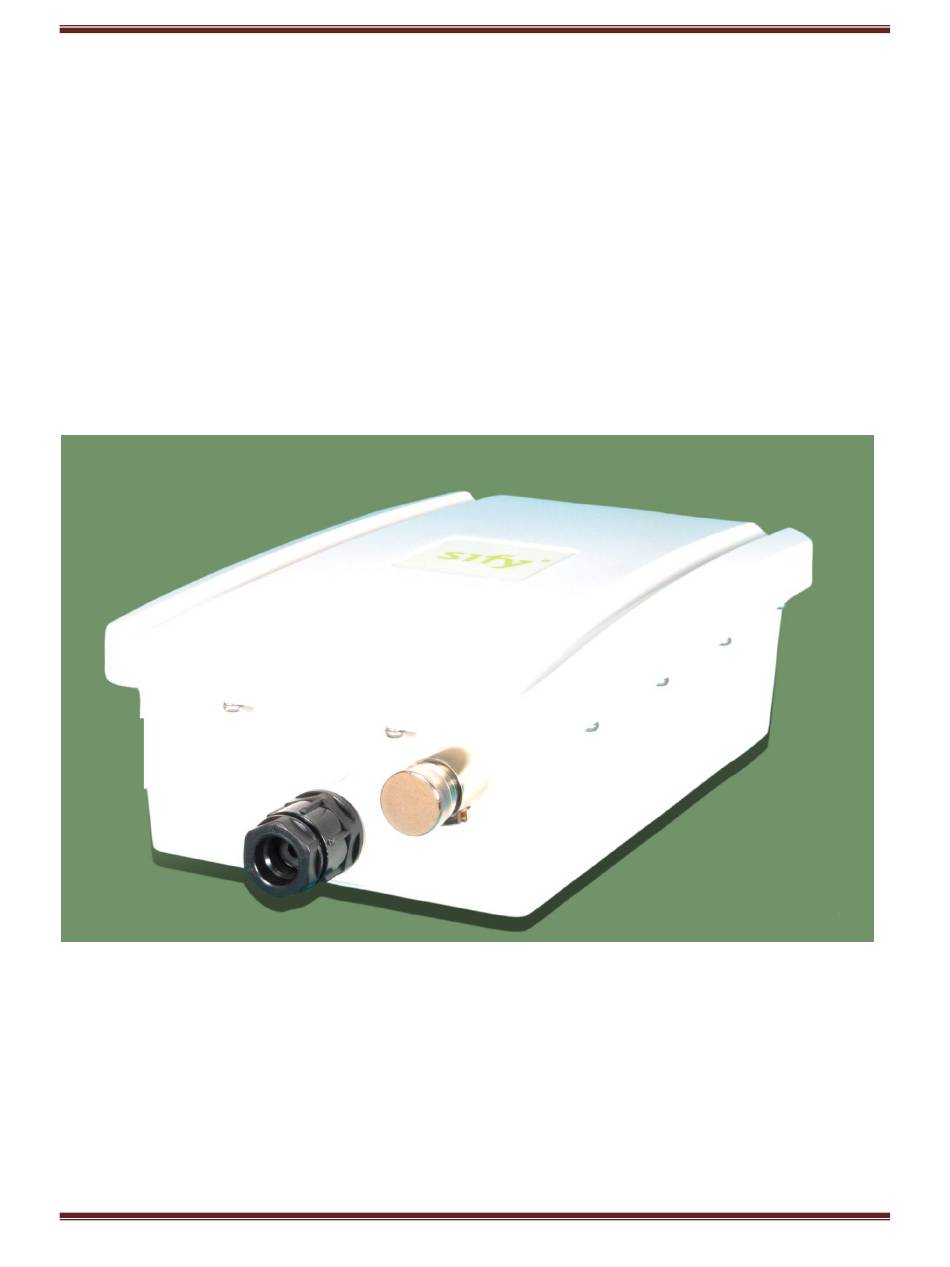

- Page 1 SMAC User Manual SIFY TECHNOLOGIES LTD. SMAC User Manual Author: ANE Date: 03-Oct-2012 Revision: 4.0 Sify Technologies Limited, 2011 © Copyright Protected Page 1...
- Page 2 SMAC User Manual Revision History Revision Date Author Change description 19-Jul-2011 Initial revision. 22-Dec-2011 1. Separated operation mode specific settings. 10-Jul-2012 1. Enterprise features added 03-Oct – 2012 2. Monitoring tab added. Sify Technologies Limited, 2011 © Copyright Protected Page 2...
-
Page 3: Table Of Contents
5.1.2 Outdoor Subscriber ........................21 5.2 Wireless Security Settings ......................22 5.3 Wireless MAC Filter ........................23 5.4 Wireless Advanced Settings ......................24 6.0.0 Enterprise Features ........................26 6.0.1 Access VLAN mode ........................26 Sify Technologies Limited, 2011 © Copyright Protected Page 3... - Page 4 10.7 Log ..............................44 10.8 Diagnostics ............................ 45 11. Failsafe Mode ............................46 12. LED Indication ............................. 46 12. Monitoring ............................47 12.1 System ............................47 12.2 Ethernet ............................47 12.3 Wireless ............................48 Sify Technologies Limited, 2011 © Copyright Protected Page 4...
- Page 5 12.5 Learn Table ............................ 49 About This Document This document is written by SIFY. SIFY has rights to change any of this document without notice and all rights reserved. This document can only be used for guiding the configuration setup of SIFY products.
-
Page 6: Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Sify Technologies Limited, 2011 © Copyright Protected Page 6... - Page 7 The equipments listed above are only for setup the SMAC5800, you will need more equipment to connect the internet and it is depend on your internet network structure. You may refer to the chapter 2 for more information. Sify Technologies Limited, 2011 © Copyright Protected Page 7...
-
Page 8: Product Overview
Frequently changed environments Show rooms, meeting rooms, retail stores, and manufacturing sites where frequently rearrange the workplace. e) Wireless extensions to Ethernet networks Network managers in dynamic environments can minimize the overhead Sify Technologies Limited, 2011 © Copyright Protected Page 8... - Page 9 Ensures secure network connection AP mode SNMP Remote Help administrators to remotely configure or manage the Access Configuration Point easily. Management VLAN Specify a VLAN number for each SSID to separate the services Sify Technologies Limited, 2011 © Copyright Protected Page 9...
-
Page 10: Package Contents
A computer with an Ethernet interface and operating under Windows XP, Vista, 7 or Linux. Internet Browser that supports HTTP and JavaScript. 1.4 Hardware Overview Physical Interface 1 x LAN Port with PoE support 1 x RF port Sify Technologies Limited, 2011 © Copyright Protected Page 10... -
Page 11: Computer Configuration Instruction
IP address and subnet mask. Ensure that the IP address and subnet mask are on the same subnet as the device. 4. Click on the OK button to close this window, and then close LAN properties window. Sify Technologies Limited, 2011 © Copyright Protected Page 11... -
Page 12: Logging Method
Caution: If you have changed the SMAC5800 LAN IP address, make sure you enter the correct IP Address. 3. After connected to the SMAC5800 successfully, browser will pop out a Windows Security window. Please enter the correct Username and Password. Sify Technologies Limited, 2011 © Copyright Protected Page 12... -
Page 13: Status
You can decide to cancel all the changes or to compile to the new setting. You cannot cancel the specific settings. You can only compile all the settings or revert to the previous settings. Sify Technologies Limited, 2011 © Copyright Protected Page 13... -
Page 14: Main
‘System’ section. LAN IP address, subnet mask, and MAC address are displayed in the ‘LAN’ section. In the ‘Wireless section, the frequency, channel is displayed. The details of each SSID and its security settings are displayed. Sify Technologies Limited, 2011 © Copyright Protected Page 14... -
Page 15: Statistics
The MAC addresses and signal strength for each client is displayed. Click on the Refresh button to refresh the client list. Default refresh time will be 10 seconds. This will be shown in Outdoor Base mode only. Sify Technologies Limited, 2011 © Copyright Protected Page 15... - Page 16 (records) events of possible interest in its internal memory. If there is not enough internal memory for all events, logs of older events are deleted, but logs of the latest events are retained. Sify Technologies Limited, 2011 © Copyright Protected Page 16...
-
Page 17: Connection Status
SSID, BSSID, connection status, wireless mode, current channel, security, data rate, noise level and signal strength. This will be shown in Outdoor Subscriber mode only. Sify Technologies Limited, 2011 © Copyright Protected Page 17... -
Page 18: System
Operation Mode: Select an operation mode via Radio Button. Click Accept to confirm the changes. Accept does not compile the changes, you must go to Status -> Save/Load to apply the new settings. Sify Technologies Limited, 2011 © Copyright Protected Page 18... -
Page 19: Ip Settings
Accept / Cancel Press Accept to confirm the changes or Cancel to return previous settings. Accept does not compile the changes, you must go to Status -> Save/Load to apply the new settings. Sify Technologies Limited, 2011 © Copyright Protected Page 19... -
Page 20: Ethernet Settings
10 in case you need more detail information. 5.1.1 Outdoor Base Mode Under Wireless Click wireless Network Wireless Mode The wireless mode supports 802.11a/n mixed modes. It is compatible with the most common known wireless band. Sify Technologies Limited, 2011 © Copyright Protected Page 20... -
Page 21: Outdoor Subscriber
Accept does not compile the changes, you must go to Status -> Save/Load to apply the new settings. 5.1.2 Outdoor Subscriber Under Wireless Click wireless Network Wireless Mode The wireless mode supports 802.11a/n mixed modes. It is compatible with the most common known wireless band. Sify Technologies Limited, 2011 © Copyright Protected Page 21... -
Page 22: Wireless Security Settings
We strongly recommend that WPA2-PSK as your security settings. For Outdoor Base: Under Wireless Click wireless Network Security Mode Select Enabled from the drop down list to begin the configuration. Sify Technologies Limited, 2011 © Copyright Protected Page 22... -
Page 23: Wireless Mac Filter
Wireless MAC Filters is used to Allow or Deny wireless clients, by their MAC addresses, accessing the Network. You can manually add a MAC address to restrict the permission to access SMAC5800. The default setting is Disable Wireless MAC Filters. Sify Technologies Limited, 2011 © Copyright Protected Page 23... -
Page 24: Wireless Advanced Settings
Select Data Rate from the drop down list. Data rate will affect the efficiency of the throughput. If the data rate is set to a small number, the lower through will get but it can transmit to longer distance. Sify Technologies Limited, 2011 © Copyright Protected Page 24... - Page 25 1. Changing Wireless Advanced Settings may cause insufficient wireless connection quality. 2. Accept does not compile the changes; you must go to Status -> Save/Load to apply the new settings. Sify Technologies Limited, 2011 © Copyright Protected Page 25...
-
Page 26: Enterprise Features
Under the VLAN settings, select the VLAN mode as Access. Enable/Disable Select Enable or Disable function from the drop down list. VLAN Mode Select as Access for configuring in Access VLAN mode. Sify Technologies Limited, 2011 © Copyright Protected Page 26... -
Page 27: Trunk Mode
Select ‘List’ option for allow the VLANs mentioned in the boxes Allowed trunk vlans Specify the trunk VLAN IDs. (maximum 16 VLANs allowed) (trunk mode) Note All the VLAN related changes will take effect immediately after clicking on ‘accept’ tab. Sify Technologies Limited, 2011 © Copyright Protected Page 27... -
Page 28: Qinq Mode
Select ‘List’ option for allow the VLANs mentioned in the boxes Allowed client Specify the client VLAN IDs. (maximum 16 VLANs allowed) VLANs(Q-in-Q mode) Note All the VLAN related changes will take effect immediately after clicking on ‘accept’ tab. Sify Technologies Limited, 2011 © Copyright Protected Page 28... -
Page 29: Radius
Specify the primary server IP (Data Type: IP address). Primary server port Specify the primary server ort (Data Type: Integer, range 1 – 65535) Primary shared server Specify the primary secret (Data Type: String) secret Sify Technologies Limited, 2011 © Copyright Protected Page 29... -
Page 30: Secondary Server
Specify the number of times Radius Client should try to connect to the Radius Server before giving up. Data Type: Integer (default 3 times) Request count period Specify the time gap between two requests retries. Data Type: Integer (default 3 seconds) Sify Technologies Limited, 2011 © Copyright Protected Page 30... -
Page 31: Filtering
Click on the filtering option under the Network features menu. This page displays IP, MAC, multicast, broadcast, etc based filtering options. Filtering option is available in Outdoor base (AP) and Subscriber mode (SU). 8.0.1 Global filtering Sify Technologies Limited, 2011 © Copyright Protected Page 31... -
Page 32: Ip Filtering
Specify the Source IP address. SOURCE MASK Specify the Source sub mask. DESTINATION IP Specify the Destination IP address DESTINATION MASK Specify the Destination sub mask Protocol Specify the protocol name Sify Technologies Limited, 2011 © Copyright Protected Page 32... -
Page 33: Mac Filtering
Click on the Routing option under the Network features menu and uncheck the disabled dialogue box. This page displays Static, RIP functions; Routing option will be available in Outdoor Subscriber (SU mode only) Sify Technologies Limited, 2011 © Copyright Protected Page 33... - Page 34 Specify the IP address. IP Subnet Mask Specify the Subnet Mask. Gateway IP Address Specify Gateway IP address. Primary DNS Specify Primary DNS server IP address Secondary DNS Specify Secondary DNS server IP address Sify Technologies Limited, 2011 © Copyright Protected Page 34...
-
Page 35: Static Routing
‘accept’ tab. Maximum it can support 100 routes in static routing mode. 9.0.1 Static Routing Check the dialogue box of static option for enabling the static routing function. RIP dialogue box has to be unchecked. Sify Technologies Limited, 2011 © Copyright Protected Page 35... -
Page 36: Rip (Routing Information Protocol)
‘accept’ tab. Maximum it can support 100 routes in static routing mode. 9.0.2 RIP (Routing Information Protocol) Check the dialogue box of RIP option for enabling the static routing function. Static dialogue box has to be unchecked. Sify Technologies Limited, 2011 © Copyright Protected Page 36... -
Page 37: Routing Mode Access Vlan
Routing mode access VLAN option will get enabled after configuring the Outdoor Subscriber (SU) in Routing mode only. Click on the VLAN settings under the Network features menu for access VLAN settings option. Sify Technologies Limited, 2011 © Copyright Protected Page 37... -
Page 38: Management Settings
By default, this device is configured with a user name and password admin. For security reasons it is highly recommended that you create a new user name and password. Sify Technologies Limited, 2011 © Copyright Protected Page 38... - Page 39 Save/Apply / Cancel Press Save/Apply to apply the changes or Cancel to return previous settings. Press Save/Apply will change the setting immediately. It will not be able to undo the action. Sify Technologies Limited, 2011 © Copyright Protected Page 39...
-
Page 40: Management Vlan
Verify DHCP server can support the reconfigured VLAN ID, and then re-connect to the new IP address. 2. Accept does not compile the changes; you must go to Status -> Save/Load to apply the new settings. Please refer to the chapter 4.1 for more detail. Sify Technologies Limited, 2011 © Copyright Protected Page 40... -
Page 41: Snmp Settings
Save/Apply / Cancel Press Save/Apply to apply the changes or Cancel to return previous settings. Press Save/Apply will change the setting immediately. It will not be able to undo the action. Sify Technologies Limited, 2011 © Copyright Protected Page 41... -
Page 42: Backup/Restore Settings
Upgrade process may take few minutes (approximate 3 minutes); please do not power off the device and it may cause the device crashed or unusable. SMAC5800 will restart automatically once the upgrade is completed. Sify Technologies Limited, 2011 © Copyright Protected Page 42... -
Page 43: Time Settings
Save/Apply / Cancel Press Save/Apply to apply the changes or Cancel to return previous settings. Press Save/Apply will change the setting immediately. It will not be able to undo the action. Sify Technologies Limited, 2011 © Copyright Protected Page 43... -
Page 44: Log
Save/Apply / Cancel Press Save/Apply to apply the changes or Cancel to return previous settings. Press Save/Apply will change the setting immediately. It will not be able to undo the action. Sify Technologies Limited, 2011 © Copyright Protected Page 44... -
Page 45: Diagnostics
SMAC User Manual 10.8 Diagnostics Click on the Diagnostics link under the Management menu. This function allows you to detect connection quality and trace the routing table to the target. Sify Technologies Limited, 2011 © Copyright Protected Page 45... -
Page 46: Failsafe Mode
GREEN blinking fast Excellent (less than -63) GREEN blinking slow Good (-64 to -74 dBm) Alternate GREEN and AMBER Average (-75 to -80 dBm) AMBER blinking Poor (above -81 dBm) Wireless Link DOWN Sify Technologies Limited, 2011 © Copyright Protected Page 46... -
Page 47: Monitoring
AP/SU side. We can able to check the Ethernet status (UP/Down) in the ethernet tab. Graphical representation of current utilization and PPS of IN and OUT can be monitored in the Ethernet interface. Sify Technologies Limited, 2011 © Copyright Protected Page 47... -
Page 48: Wireless
AP/SU side. We can able to check the wireless status (UP/Down) in the wireless tab. Graphical representation of current utilization and PPS of IN and OUT can be monitored in the wireless interface. Sify Technologies Limited, 2011 © Copyright Protected Page 48... - Page 49 Click on the ARP link under the Monitoring menu for ARP entries learned in AP/SU. 12.5 Learn Table Click on the Learn link under the Monitoring menu for learn entries in AP/SU. Sify Technologies Limited, 2011 © Copyright Protected Page 49...
