- Page 1 EXTREME ENVIRONMENTS. EXTREMELY RELIABLE. RAOS Remote Automated Observation System Operator’s Manual 1.800.548.4264 | www.ftsinc.com 700-RAOS -Man Rev 5 24 Feb 2020...
- Page 2 Contact Information Canadian Headquarters: 1065 Henry Eng Place Victoria, BC | V9B 6B2 | Canada www.ftsinc.com Toll-free: 1.800.548.4264 Local: 250.478.5561 Technical support portal: http://support.ftsinc.com Email: service@ftsinc.com...
-
Page 3: Table Of Contents
1.5.2 DOWNLOADING THE FTS360 CONFIG APP ....................6 1.5.3 USING THE FTS360 CONFIG APP IN THE FIELD .................... 6 RAOS STATION COMPONENTS ............................6 PORTABLE POWER STATION ............................8 ON-BOARD COMPUTER ..............................8 CAMERAS ....................................9 1.10 INFRARED CAMERA SAFETY ............................9 1.10.1... - Page 4 DEFAULT CONFIGURATION ..........................25 3.10.4 DISPLAY CAMERA DIRECTION ..........................25 SYSTEM ....................................26 SYSTEM COMPONENTS ..............................26 CAMERAS .....................................26 POWER ....................................27 B.1.1 SOLAR CHARGER LEDS...........................27 B.1.2 FUSES ..................................28 WHEN USING THE FTS360/ FTS 360 CONFIG APP ....................29 MODEM ERRORS ................................30 B.3.1 MODEM LED ERROR INDICATORS ......................30...
-

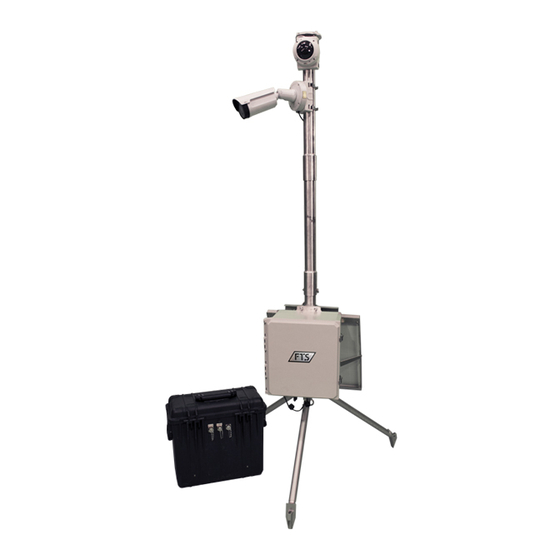

Page 5: Introduction
LinuxEXT4 format. Once connectivity is re-established FTS360 data will backfill up to 24 hours of images from the SD card. The RAOS is a portable system designed to withstand harsh conditions. All hardware is either stainless steel or anodized aluminum and the main enclosure, external parts, and connectors are corrosion resistant. -
Page 6: Satellite Terminal Safety
Never use the Satellite Terminal where blasting work is in progress or in the vicinity of explosive environments. Observe all restrictions and follow any regulations or rules. Areas with a potentially explosive environment are often, but not always, clearly marked. 700-RAOS-Man Rev 5 24 Feb 2020 Page 2/31... -
Page 7: Infrared Camera Safety
Refer to Figure 1-5. DANGER! RISK OF EYE INJURY! Do not look directly into the IR LED at close range. Figure 1-2: Distance vs Exposure infrared radiation eye safety 700-RAOS-Man Rev 5 24 Feb 2020 Page 3/31... -
Page 8: Electrostatic Disharge Safety
1.4.1 SECURE NETWORK The RAOS operates in a closed system when taking pictures and storing them locally within the station. RAOS data is encrypted by the camera system’s on-board computer before directly outputting it through the selected network, either satellite or cellular. -
Page 9: Fts360 And Fts360 Configuration Application (Fts360 Configapp)
In order for agency users to have access to FTS360, the Administrator must first initialize the account and assign an Agency name. Note that in some cases, FTS will have completed this step on behalf of the client. If that is the case, the Administrator will not have to Sign Up as outlined in the following paragraph. -
Page 10: Downloading The Fts360 Config App
The FTS360 Config App on a smart device uses wireless technology to provide direct, local access to a RAOS station, permitting configuration changes to it when in the field and internet connection is not possible. The FTS360 Config App is designed to have the same look and feel as FTS360 and will permit you to configure stations when close to the station. - Page 11 Figure 1-4: RAOS System Block Diagrams 700-RAOS-Man Rev 5 24 Feb 2020 Page 7/31...
-
Page 12: Portable Power Station
Profile S addresses common functionalities of IP video systems, such as video and audio streaming, PTZ controls, and relay activation. http://www.onvif.org/Home.aspx 700-RAOS-Man Rev 5 24 Feb 2020 Page 8/31... -
Page 13: Cameras
The Infrared camera can be shipped with one of two modes which must be factory configured prior to shipping. The default mode is Infrared only. Three different camera models are available for operation with the RAOS: Panorama Infrared... -
Page 14: Night Mode Vs Infrared Mode
The thermal camera operates in a single mode, continuously detecting small differences in temperature regardless of lighting conditions. They create images based on the heat radiating from any object, so it is less sensitive to light conditions such as shadows, backlight and darkness. 700-RAOS-Man Rev 5 24 Feb 2020 Page 10/31... -
Page 15: Inserting/Removing The Sim Card
MODEM OPERATION The RAOS is equipped with the CELL-SIERRA-NA for use in North America. The modem will be shipped configured and with the activated SIM card in place. 2.1 INSERTING/REMOVING THE SIM CARD Under normal circumstances, you should not have to remove/insert your SIM card. -
Page 16: Modem Leds
Network Operator Switching is enabled, but the gateway is unable Red/Amber to locate the required firmware. For more information, refer to the ALEOS Software Configuration User Guide (Admin chapter) from the Sierra Wireless website 700-RAOS-Man Rev 5 24 Feb 2020 Page 12/31... -
Page 17: Ethernet Leds
Using the Reset button on the modem can result in returning the modem to factory settings: the configuration may be lost. IMPORTANT! Only reboot the modem using the main circuit breaker. 700-RAOS-Man Rev 5 24 Feb 2020 Page 13/31... -
Page 18: Prior To Proceeding To The Field
For satellite units: satellite aiming information Refer to section 1.2 for details The SD card requires Linux EXT 4 formatting in order to be used in the RAOS. FTS supplies a formatted industrial SD card rated to operate in the camera’s specified temperature range. -
Page 19: Confirm Raos Operation
3.2 CONFIRM RAOS OPERATION Prior to proceeding to the field, the RAOS station should be set up and the system tested to confirm modem operation and carrier connectivity. Setting up the station in a controlled setting ensures any problems encountered can be easily addressed and minimizes installation time on site. When confirming operation of a satellite station, it must be set up outside with a clear line of site between the satellite assembly and the satellite. - Page 20 Rotate the cabinet so its rear is positioned to receive Locking Bolt maximum daily sun exposure. Tighten the locking bolt. 700-RAOS-Man Rev 5 24 Feb 2020 Page 16/31...
- Page 21 • be positioned so as to minimize or prevent • shadows on the solar panel Once the station is powered on the satellite can be correctly aimed (details in Section 3.9) 700-RAOS-Man Rev 5 24 Feb 2020 Page 17/31...
- Page 22 Ensure cables do not block the field of view of cameras. Step 8: SECURE Secure the RAOS to the ground anchor using the cinch strap. Press on the lever and pull the webbing through to extend the reach of the S hooks.
-
Page 23: Connecting Cameras And Satellite Terminal
The portable power station is shipped with the battery disconnected. Open the Power station and plug the mating connectors together. The connectors are fully connected when the locking tab clicks in place. 700-RAOS-Man Rev 5 24 Feb 2020 Page 19/31... -
Page 24: Powering The Station
TAY AT LEAST 1 M CLEAR OF THE FRONT OF THE ANTENNA WARNING! TO AVOID RF RADIATION. RISK OF DO NOT LOOK DIRECTLY INTO THE IR CAMERA LEDs AT CLOSE RANGE INJURY! 700-RAOS-Man Rev 5 24 Feb 2020 Page 20/31... -
Page 25: Connecting To Wi-Fi
1) After pressing the Connect button, go to Settings>Wi-Fi on your smart device. 2) Select the RAOS network for the serial number of your device (found on a sticker on the on- board computer – see Figure 3-2). -
Page 26: Configuring And Aiming The Satellite Assembly
3.8 CONFIGURING AND AIMING THE SATELLITE ASSEMBLY The first time the satellite assembly is used, it must be configured. Contact FTS at least 5 working days prior to the anticipated use to activate the satellite SIM card. Once the satellite SIM card has been activated, FTS will provide you with a User Name and Password. -
Page 27: Camera Discovery And Default Configuration
6) Confirm operation by viewing images in FTS360. If there is no cellular connectivity, confirmation can only be done remotely using FTS 360. NOTE: if you do not "Disconnect" directly, any scheduled pictures/video and interaction with... -
Page 28: Site Visit "Sessions
• Camera in an error state 3.10.1 SITE VISIT “SESSIONS” The FTS360 Config App uses “sessions” in managing RAOS stations. A session is initiated every time connection is made between the FTS360 Config App and a station. Each session assumes the camera placements and configurations saved in the preceding session are the same but “stale”,... -
Page 29: Default Configuration
If the camera was replaced with one of the same model and it is desired to use the same configuration as the previous camera you can: 1) Power cycle the RAOS (turn the power breaker off and then on); or 2) After discovery, use the FTS360 Config App to configure the camera to the previous settings and save. -
Page 30: System
-40 °C to 60 °C Range (-22°F to 122°F) (-40°F to 122°F) (-40 °F to 140 °F) Maximum 4 frames per second 4 frames per second 4 frames per second Frame Rate 700-RAOS-Man Rev 5 24 Feb 2020 Page 26/31... -
Page 31: Power
Long, then short blinks Charging (current limit): charging at current limit. The GV-5 is overloaded and limiting charging current. Solid Battery Charged: The battery is in the absorption or float charging stage. 700-RAOS-Man Rev 5 24 Feb 2020 Page 27/31... -
Page 32: Fuses
I I I I I I I I I I I I I I I I used with this controller. 2 long blinks followed by any number of short blinks. Internal Error: Contact FTS for assistance. B.1.2 FUSES The following fuses are located in the fuse holder on the interior of the power station’s lid:... -
Page 33: When Using The Fts360/ Fts 360 Config App
1) Sync smart device used in the field to set up the station with FTS360 edited but synchronization 2) Must go to field and use the FTS ConfigApp to discover did not happen cameras on respective ports and edit the configuration to Wrong 2) Configuration the desired new configuration. -
Page 34: Modem Errors
If possible, move the station to Signal amber bar) a location with a better signal. Flashing Move station to area of Signal Out of cell coverage reception Network Flashing No network available Contact service provider 700-RAOS-Man Rev 5 24 Feb 2020 Page 30/31... - Page 35 DOCUMENT REVISION HISTORY Revision Date Description Original. Combines RAOS Cel and RAOS Sat. Supersedes 09 Aug 2018 700-RAOS Cel-Man. Updated checklists in Section 3.1, added info on activating BGAN SIM card, configuring the satellite assembly, aiming 29 Aug 2019 the satellite antenna, and swapping cameras (RAOS-1161, RAOS-988).
