Tekmar tekmarNet4 User Switch 480 Data Brochure

Hide thumbs

Advertisement

Table of Contents

- Data Brochure
tekmarNet
®
4 User Switch 480
1
2
Information
Application
Brochure
Choose controls
Design your
to match
mechanical
application
applications
Introduction

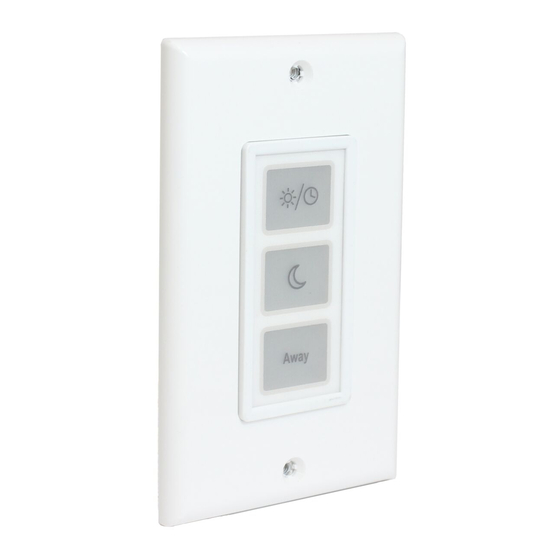

The User Switch 480 has 3 programmable buttons that allow users to easily change the operating scene or allow users to
enable / disable tN4 setpoint devices on a tN4 system.
Multiple User Switches are required if more than 3 scenes or setpoint enable / disables are desired.
The 480 has 3 demand inputs that allow for connection of a tN4 system to a third party automation system or telephone
switch. This allows users to remotely change the operating scene on a tN4 system.
Features
•
• tN4 Compatible
• • 3 User buttons
• • 3 Demand Inputs
- Input for Home or Building Automation
- Input for Telephone Switch
- Input for Security Systems
3
Rough In
Brochure
Wiring
Rough-in
wiring
instructions
4
Wiring
Brochure
Wiring and
installation of
specific control
Decora cover plate not included
1 of 8
6
5
Data
Brochure
Control settings
Record settings &
and sequence of
wiring details for
operation
future reference
User
Button
1
User
Button
2
User
Button
3
© 2006
D 480
06/06
Job
Record
D 480 - 06/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tekmarNet4 User Switch 480 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tekmar tekmarNet4 User Switch 480

Summary of Contents for Tekmar tekmarNet4 User Switch 480

  • Page 1 - Data Brochure D 480 tekmarNet ® 4 User Switch 480 06/06 Information Application Rough In Wiring Data Brochure Brochure Wiring Record Brochure Brochure Wiring and Control settings Choose controls Design your Rough-in Record settings & to match mechanical wiring installation of and sequence of wiring details for...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Demand Inputs ...............6 User Interface ..............2 Applications Using Multiple 480 & 481 Together ....7 Sequence of Operation ...........3 Error Messages ..............7 3 User Buttons ............3 Cleaning the User Switch ..........8 Programming the User Buttons ......4 Warranty .................8 User Interface The User Switch has a total of 5 buttons.

  • Page 3: Sequence Of Operation

    Sequence of Operation Three User Buttons The User Switch provides users with a simple interface to Application Examples: change the operating scene of the tN4 system or provide Allows residential users to change the scene to 2 (Away) an enable / disable to tN4 setpoint controls. The 480 has while going on vacation, or select an occupied scene 3 User Buttons and 3 demand inputs.

  • Page 4: Programming The User Buttons

    Programming the User Buttons STEP 1: Remove the plastic trim bezel. User Button User Button User Button STEP 2: Press button “A” once using a blunt object to begin programming mode. Each of the 3 User Buttons will begin to flash to indicate the current program setting: PRESS User •...
  • Page 5 STEP 4 (Continued) (Setpoint Device Enable, Green Flashes) Press the User Button the number of times equal to the desired setpoint device enable number. Press “User” Button Setpoint Enable Green Light Flash Sequence 1 Time 1 Green, Off, Repeat 2 Times 2 Green, Off, Repeat 3 Times 3 Green, Off, Repeat...

  • Page 6: Demand Inputs

    For product instructions see brochure Use at least 194°F (90°C) conductors For a list of suggested third party devices that can connect Made in Canada to the user switch, please contact your tekmar sales 1009-01 representative. Meets Class B: • Canadian ICES •...

  • Page 7: Error Messages

    Applications using Multiple 480 and 481 Together Applications with both input demands and output Multiple User Switches 480 and 481 can be used together relay contacts when: 1) Applications require more than 3 User Buttons. Applications that require input demands and output contacts 2) Applications require both input demands and output require a 480 and a 481.

  • Page 8: Cleaning The User Switch

    / or the local codes and ordinances; or if due to defective installation of period of twenty-four (24) months from the production date if the Product is the Product; or if the Product was not used in compliance with tekmar’s instruc- not installed during that period, or twelve (12) months from the documented tions.
