Summary of Contents for Aquatica Digital Multiplex Duo

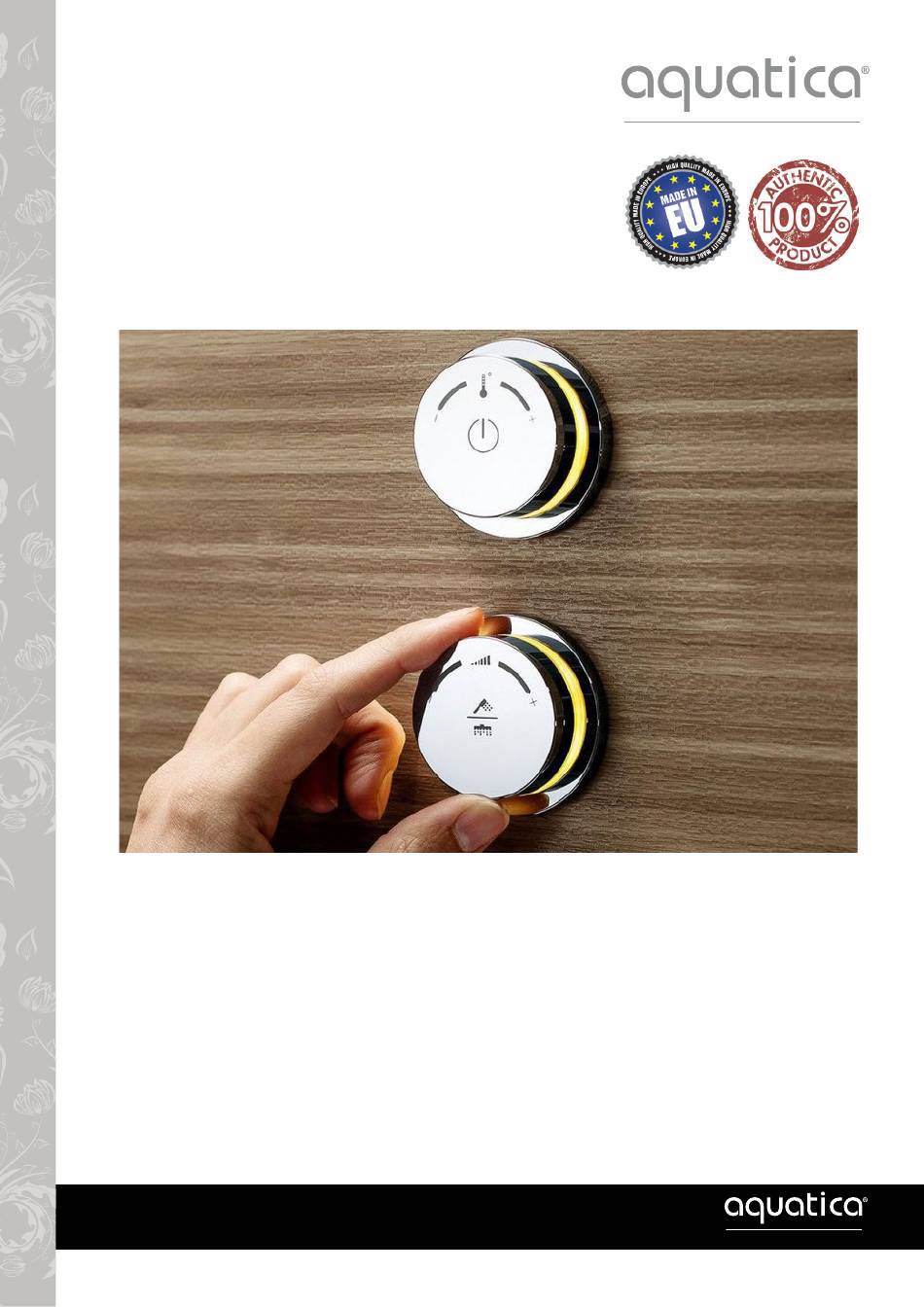

- Page 1 F un c ti o n : F o r m : Fa sh i o n Multiplex Duo Shower Control Installation & Care Manual INTERNATIONAL Aquaticausa.com Aquaticabath.ca E: info@aquaticabath.com F un c ti on : Fo rm : F as hion...
-
Page 2: Important And Safety Information
The Multiplex Duo is suitable for domestic or commercial All Aquatica valves are mixed flow products, which, for use. This product is supplied with a 5 year guarantee. -
Page 3: Package Contents
Multiplex Duo Shower ControlShower Control F unc ti on : F or m : F a s h ion PACKAGE CONTENTS Shower Control Option Bath Control Option DUO TEMPERATURE CONTROL CONTROL FIXING BRACKETS CONTROL FIXINGS DUO TEMPERATURE CONTROL DUO FLOW/OUTLET CONTROL BACK PLATES &... -
Page 4: Flow Performance
Multiplex Duo Shower ControlShower Control FLOW PERFORMANCE 35.0 30.0 25.0 20.0 15.0 10.0 Dynamic pressure ( bar) cold mixed cold mixed The Flow rate is depending on Dynamic water pressure of supply system to the processor. Water pressure - recommended minimum 0.5 bar... - Page 5 TYPICAL WALL MOUNTED INSTALLATION SCENARIO: IMPORTANT: The Processor must be accessible and should not be sealed in the wall. MULTIPLEX DUO WALL MOUNTED INSTALLATION SCENARIO - handshower and fixed overhead shower configuration Handset & fixed head outlets Cable length 6m max.
- Page 6 Shower ControlShower Control TYPICAL CEILING MOUNTED INSTALLATION SCENARIO: IMPORTANT: The Processor must be accessible. MULTIPLEX DUO CEILING MOUNTED INSTALLATION SCENARIO - handshower and fixed overhead shower configuration Handset & fixed head outlets Cable length 6m max. Note: The controller can be fitted anywhere in the showering area.
-
Page 7: Installation Sequence
Multiplex Duo Shower ControlShower Control F unc ti on : F or m : F a s h ion INSTALLATION SEQUENCE - Shower Control Option Cut down control Attaching control fixing brackets fixing brackets Prepare the wall to take the control fixing brackets. - Page 8 Multiplex Duo Shower Control INSTALLATION SEQUENCE - Shower Control Option continued Shower control option Shower control option Draw a line around the bracket collars, flush with the wall. Shower control option Shower control option Back plate/Adaptor ring - with foam gasket...
- Page 9 - Shower Control Option continued Shower control option Shower control option Foam seal Feed the control data cables through the brackets. Note: The Multiplex Duo Temperature control should be in the top position and the Duo Flow and Diverter control in the bottom position.
- Page 10 Multiplex Duo Shower Control INSTALLATION SEQUENCE - Bath Control Option Bath control option Bath control option ‘O’ ring Unscrew and remove the nut and washer from the Prepare the bath rim to take the control fixing control brackets and data cables. Carefully pull the brackets.
- Page 11 Multiplex Duo Shower Control F unc ti on : F or m : F a s h ion INSTALLATION SEQUENCE - Processor Connecting the processor Remove the processor cover. Inside Processor - Dual outlet Connector block Power supply Fixing Holes...
- Page 12 Multiplex Duo Shower Control INSTALLATION SEQUENCE - Processor continued Connecting the processor Connecting the processor Important: The location of the processor must be accessible and dry. If required, use the template (found on page 17) to mark the position of the processor fixing holes in the Fix the processor in position using the fixings supplied.
- Page 13 Multiplex Duo Shower Control F unc ti on : F or m : F a s h ion INSTALLATION SEQUENCE - Processor continued Connecting the processor Connecting the processor Cold Important: Flush through the pipework before connection. Re-insert the inlet connectors retaining bolt.
- Page 14 Multiplex Duo Shower Control INSTALLATION SEQUENCE - Processor continued Connecting the processor Connecting the processor Attach 15mm pipework to the outlet connectors. Note: Make a note of which pipe goes to what. Re-insert the outlet connectors retaining bolt. Note: Make sure that the pipework is perpendicular to the processor so that there is no strain on the fittings, use pipe clips as required.
- Page 15 Multiplex Duo Shower Control F unc ti on : F or m : F a s h ion INSTALLATION SEQUENCE - Processor continued Connect flow/outlet control data cable Connect the data cable from the flow / outlet control to the ‘ Dual Wheel’ connection in the processor.
-
Page 16: Cleaning & Maintenance
Aquatica cannot accept liability if the processor has been fitted in an inaccessible location. Please contact our customer service for information regarding the use of the Multiplex Duo in commercial applications, and the applicability of the warranty in such circumstances. - Page 17 Multiplex Trio Shower Control F unc ti on : F or m : F a s h ion Note: Diagram is to scale. Ensure when printing that image size is at 100%. F un c ti on : Fo rm : F as hion...
- Page 18 Multiplex Duo Shower ControlShower Control Aquaticausa.com Aquaticabath.ca E: info@aquaticabath.com...
- Page 19 F unc ti on : F or m : F a s h ion F un c ti on : Fo rm : F as hion...
- Page 20 Fu n ct i o n : F o rm : F a s h i o n Aquaticausa.com Aquaticabath.ca E: info@aquaticabath.com Fu n cti on : F orm : Fashio n...
