Iron Trapper™ Installation & Start-Up Procedures
Proper Well water treatment
Proper well water treatment is based on
what's in your water. Challenges include
water hardness, Iron, Hydrogen Sulfide
(rotten egg odors), sediment, tannins,
Arsenic, Nitrates, Acidic water (low pH),
bacteria and other harmful

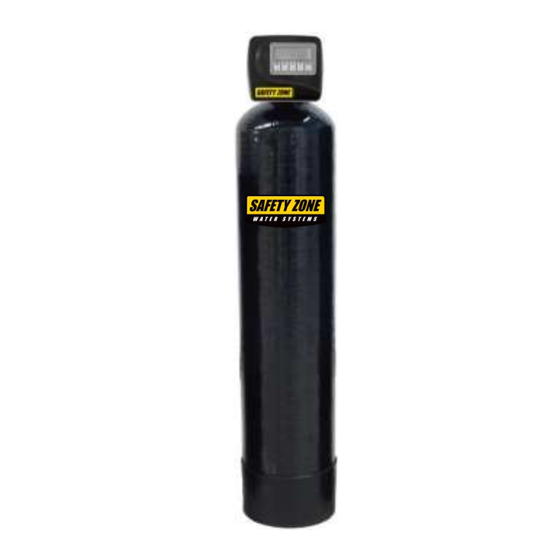

Iron Trapper™ for Iron &
Hydrogen Sulfide
This unique system removes Iron,
Hydrogen Sulfide and Manganese using
our AIR DRAW valve for greater oxidation.
Congratulations!
You've selected our best-selling
well water treatment system for
top performance and economy.
Iron Trapper™ systems reduce
Iron, Hydrogen Sulfide and
Manganese and are designed to
provide years of service with
proper care and maintenance.
Hopefully, this manual will be
beneficial and provide information
you need to install, start-up and
maintain your system.
®2020 Safety Zone Water Systems, LLC
microorganisms.
(Sulfur Odors)
Valve type
Valve sizes
Pipe fittings available
Filtration procedure
Riser tube size
Drain line fitting
Brine line (for air draw)
Supply voltage
Supply frequency
Output voltage
Filtration media
By-pass valve
To view our valve manuals visit
How it works!
The Iron Trapper™ utilizes oxygen,
contained in your water and fresh
ambient air injected inside the filter
tank to oxidize Iron, Hydrogen Sulfide
and Manganese, so they drop out of
solution to form particles. These
particles are trapped by the filter
media, and are periodically removed
from the filter during the backwash
cycle.
Iron Trapper™ systems do not need
chemicals for oxidation. However, if
your water contains bacteria, water
treatment chemicals may be required
for disinfection.
Specifications
Metered
1", 1.25", 1.5" and 2"
¾", 1", 1.25" and 1.5"
"Air Draw" for oxidation
1.05", 1.25", 1.5" and 2"
¾" male NPT
3/8" quick connect
120 V AC
60 Hz
12 V AC
For Iron, Hydrogen Sulfide & Mang.
Included
www.safetyzonewater.com
Advertisement
Table of Contents
Summary of Contents for Safety Zone Iron Trapper ISF-150-AD
- Page 1 12 V AC beneficial and provide information Filtration media For Iron, Hydrogen Sulfide & Mang. you need to install, start-up and By-pass valve Included maintain your system. To view our valve manuals visit www.safetyzonewater.com ®2020 Safety Zone Water Systems, LLC...
- Page 2 Valve Programming Safety Zone Water® Signature Series electronic control valve The Safety Zone Signature Series valve is highly versatile, and can be programmed for water softeners, Combo softener / Filter systems and “air draw” Iron and Sulfur filters. Valves are available in 1”, 1- 1/4”, 1-1/2”...
- Page 3 Air check valve Notice an air check valve is installed on the “air draw” valve. This will prevent air escaping from the tank. 3/4” rigid PVC drain is highly recommended. Drain line installation Proper installation of the drain line is critical to any Iron and Sulfur filter’s performance.
- Page 4 Do not fill swimming pools with water from an Iron / sulfur filter. This will exceed the capacity of the system. Warranty Signature Series Safety Zone Water Systems come with a limited warranty. Five years for valves, and ten years for tanks. Resin, activated carbon and filter media come with a quality guarantee only. See warranty card or go to www.safetyzonewater.com...
