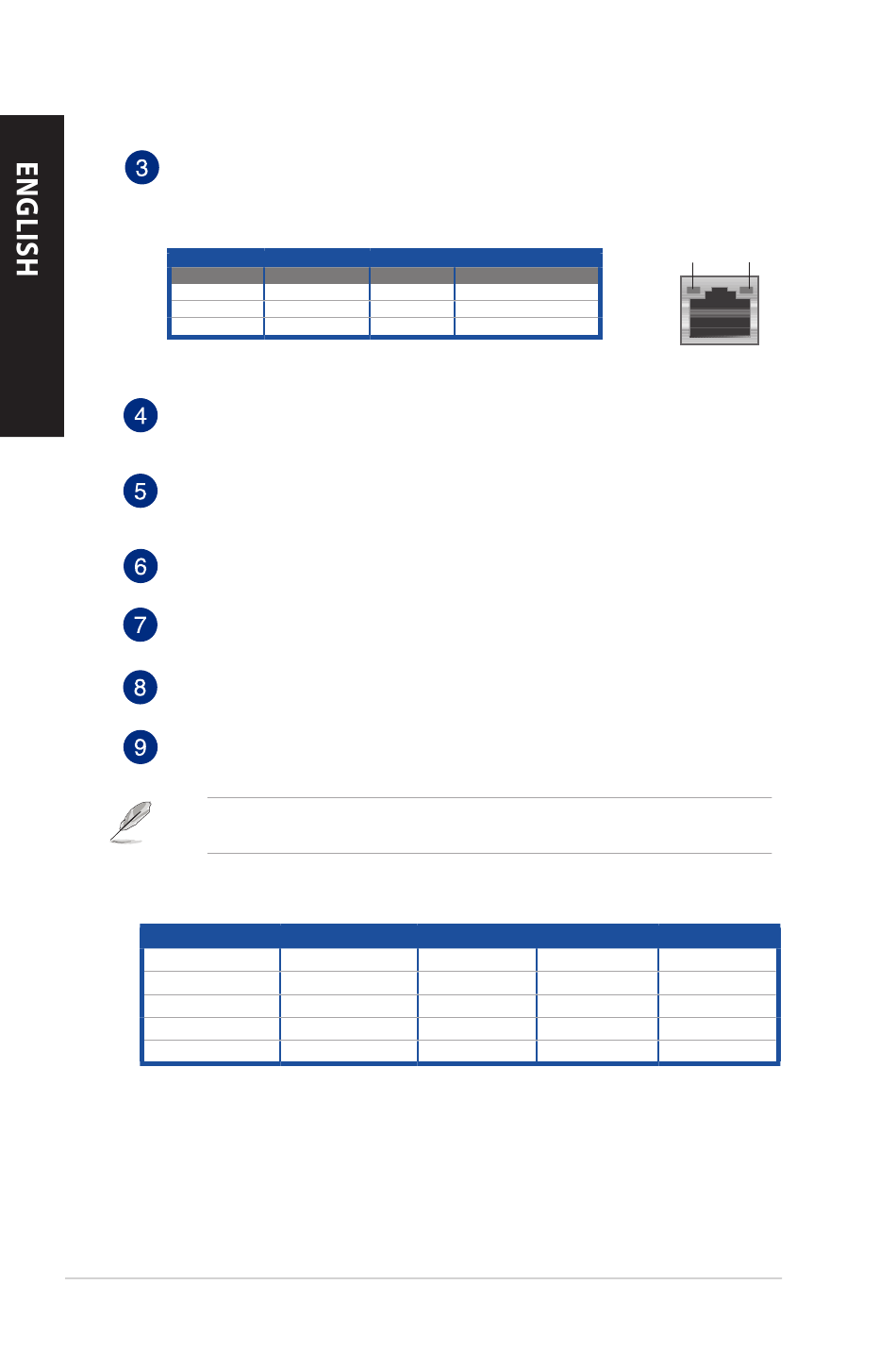

LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
Activity/Link LED
Status
OFF
ORANGE
BLINKING
Line In port (light blue). This port connects to a tape, CD, DVD player, or other audio
sources.
Line Out port (lime). This port connects to a headphone or speaker. In a 4.1, 5.1,
or 7.1-channel configuration, the function of this port becomes Front Speaker Out.
Supported by ASUS Audio Wizard.
Microphone port (pink). This port connects to a microphone.
Center/Subwoofer port (orange). This port connects to the center/subwoofer
speakers.
Rear Speaker Out port (black). This port connects to the rear speakers in a 4, 6, and
8-channel audio configuration.
Optical S/PDIF out port. This port allows you to connect your PC to amplified speakers,
headphones, or Sony/Phillips Digital Interconnect Format (S/PDIF) compliant devices.
Refer to the audio configuration table below for the function of the audio ports in a 2.1, 4.1,
5.1, or 7.1-channel configuration.
Audio 2.1, 4.1, 5.1, or 7.1-channel configuration
Port
Light Blue
Lime
Pink
Orange
Black
14
Speed LED
Description Status
No link OFF
Linked ORANGE
Data activity GREEN
Headset 2.1-channel 4.1-channel
Line In Line In
Line Out Front Speaker Out
Mic In Mic In
- -
- Rear Speaker Out
Description
10Mbps connection
100Mbps connection
1Gbps connection
5.1-channel
Line In
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Out
Chapter 1: Getting started
ACT/LINK SPEED
LED LED
LAN port
7.1-channel
Side Speaker Out
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Out
