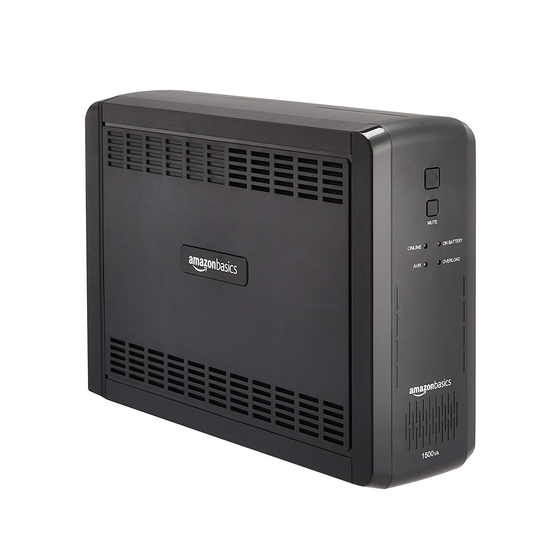

Line-interactive ups 1500va 900 watt, 10 outlets

Advertisement

Line-Interactive UPS 1500VA 900 Watt, 10 Outlets
UPS de Línea Interactiva, 1500 VA, 900 Watts, 10 Tomas
Onduleur Line-Interactive 1 500 VA 900 Watts, 10 Sorties
B07RWMLKFM
K01-1198010-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B07RWMLKFM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AmazonBasics B07RWMLKFM

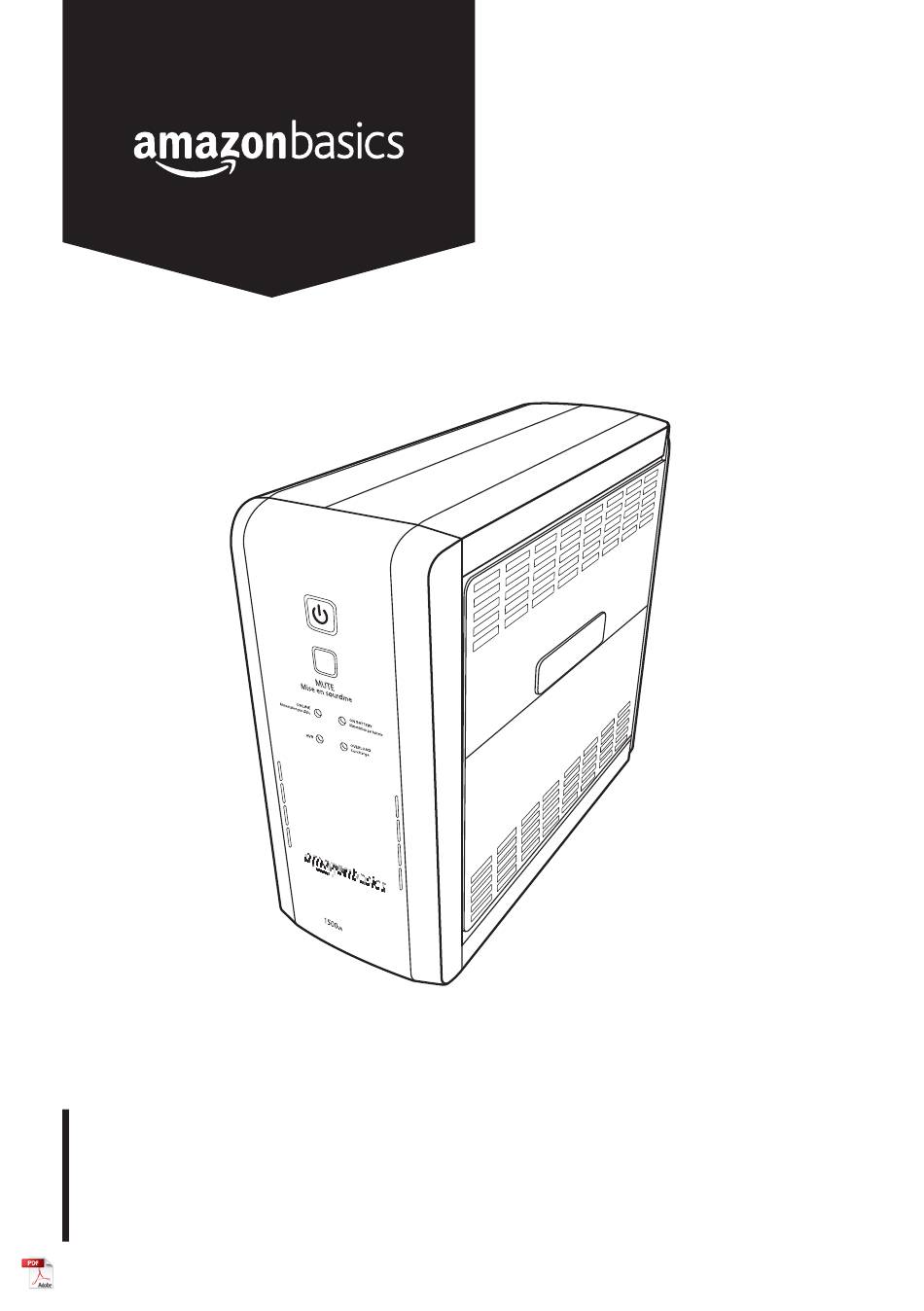

  • Page 1 Line-Interactive UPS 1500VA 900 Watt, 10 Outlets UPS de Línea Interactiva, 1500 VA, 900 Watts, 10 Tomas Onduleur Line-Interactive 1 500 VA 900 Watts, 10 Sorties B07RWMLKFM K01-1198010-01...
  • Page 2 English ............ 3 Español ..........17 Français ..........30...
  • Page 3 Welcome Guide • English Contents: Before getting started, ensure the package contains the following components: Power button USB type B socket MUTE button WIRING FAULT indicator ONLINE indicator Battery backup & surge protection outlets AVR indicator Power cord with plug ON BATTERY indicator Surge protection outlets OVERLOAD indicator...
  • Page 4 SAVE THESE INSTRUCTIONS Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following: Risk of Energy Hazard! 24 V, 9 Ampere-hour batteries.
  • Page 5: Before First Use

    Not for use in a computer room as defined in the Standard for the CAUTION protection of information Technology Equipment, ANSI/NFPA 75. Additional Battery Warnings • Keep batteries out of the reach of children. • If the battery leaks avoid contact with skin and eyes. Rinse affected areas immediately with plenty of clean water, then consult a doctor.
  • Page 6: Operation

    Operation Connecting an external equipment Risk of damage! Do not connect equipment with a combined CAUTION power consumption of more than 1500 VA/900 W. It is suggested not to exceed 80% of the product’s total capacity NOTICE when connecting to the battery backup & surge protection outlets (I).
  • Page 7 If an overload is detected the product stops operation and the NOTICE OVERLOAD indicator (F) lights up and the product beeps. Switch off the product and unplug at least one connected equipment so that the maximum capacity is not exceeded. Wait 10 seconds and press the RESET button (L).
  • Page 8: Automatic Voltage Regulation

    Indicators patterns Online (C) AVR (D) Overload (F) Status Alarm Battery (E) Flashes Beeps twice while every 30 beeping seconds Flashes while Beeps rapidly beeping Constant alarm Constant alarm Beeps every 2 seconds Automatic voltage regulation The product features AVR (Automatic Voltage Regulation) that allows to stabilize the inconsistent power input to the nominal level (110-120 V~) that is safe to the connected external equipment.
  • Page 9: Connecting To A Computer

    Use the type B to type A USB cable to connect the product to a computer. Download and installation • Visit www.amazon.com website. • Search the B07RWMLKFM product number. • Scroll down to “Technical Specification” section and download the PowerPanel Personal software. ®...
  • Page 10: Replacing The Battery

    1) Remove watches rings, or other metal objects. 2) Use tools with insulated handles. When replacing batteries, replace with the same number of the NOTICE following battery: amazonbasics/ABRB1290X2. • Switch off and unplug all the connected equipment. • Switch off the product and disconnect it from the power supply.
  • Page 11 • Disconnect the wires from the battery II terminals and then take it out of the battery compartment. Battery II Battery I • Disconnect the wires from the battery I terminals. • Slide the battery to the side and take it out of the battery compartment.
  • Page 12: Cleaning And Maintenance

    • Reverse the steps to install the new batteries into the battery compartment. Connect the wires as per table below. Wire Battery I Battery II positive (+) Yellow positive (+) negative (-) Black negative (-) • Close the battery compartment cover and secure it with the screws. Risk of explosion! Always connect the (+) red connector and (-) WARNING black connector to the correct terminals (+) and (-).
  • Page 13: System Functional Block Diagram

    Storage • Store the product covered in a cool, dry location, with the battery fully charged. Fully charge the battery every 3 months. Transport • Switch off and disconnect all the connected equipment. Disconnect the product from power supply and then disconnect all the internal batteries. •...
  • Page 14: Troubleshooting

    Troubleshooting Problem Possible cause Solution Switch off the product and unplug at least one connected equipment The circuit breaker has Power supply so that the maximum capacity is tripped. overload. not exceeded. Wait 10 seconds and press the RESET button (L). Switch on the product again.
  • Page 15: Fcc - Supplier's Declaration Of Conformity

    FCC – Supplier’s Declaration of Conformity B07RWMLKFM - ABMT1500 Unique Identifier Amazon.com Services, Inc Responsible Party 410 Terry Ave N. U.S. Contact Information Seattle, WA 98109, United States (206) 266-1000 Telephone Number FCC Compliance Statement 1. This device complies with Part 15 of the FCC rules. Operation is subject to the...
  • Page 16: Specifications

    3.9 x 9.8 x 13.7" (10 x 24.8 x 34.7 cm) Feedback and Help Love it? Hate it? Let us know with a customer review. AmazonBasics is committed to delivering customer-driven products that live up to your high standards. We encourage you to write a review sharing your experiences with the product.
  • Page 17 MADE IN CHINA HECHO EN CHINA FABRIQUÉ EN CHINE V8-01/20...
