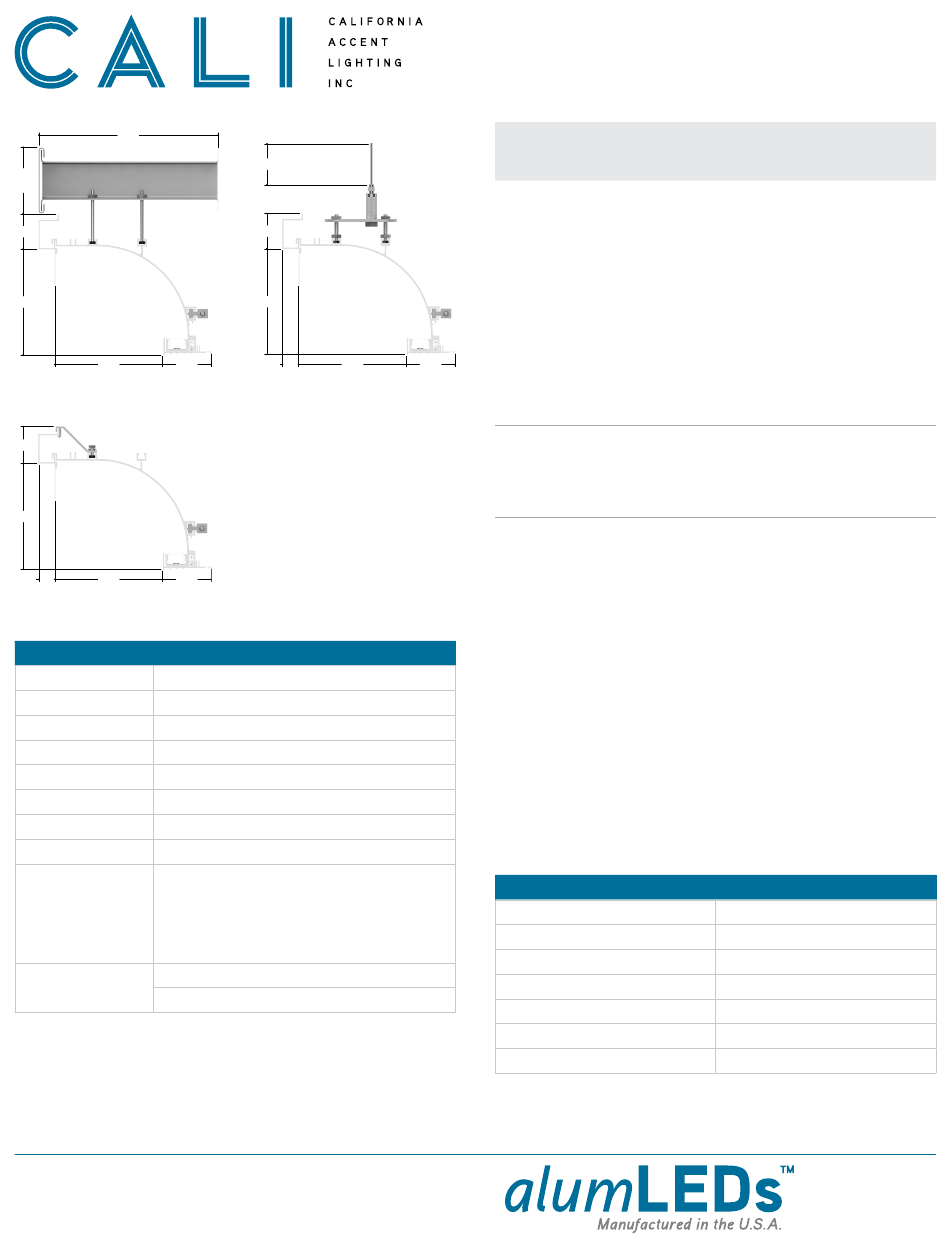

END VIEWS (With Mud-In Ceiling Trim)
7.0"
3.75"
Max.
1.37"
4.10"
4.21"
1.88"
Hanging Bracket Assembly
(ALS500T-SWM-HB)
1.45"
4.10"
.60"
4.21"
1.88"
Mounting Bracket Assembly
(ALS500T-SWM-MB)
FEATURES
APPLICATIONS
Indirect Lighting
LENS
Clear
LENGTH
Built to Order (± 0.25" Tolerance)
CONSTRUCTION
Aluminum Extrusion
FINISH
White Powder Coated
DRIVER
Remote
WEIGHT
4.15 lbs per foot
MOUNTING
Mounting Brackets or Aircraft Cable
Dry or Damp Location
UL1598, CSA C22.2#250.0
LISTING
UL8750, CSA250
UL2108, CSA C22.2 #9
Operating / Startup: -20° to 48°C (-4° to 120°F)
TEMPERATURE
RATINGS
Storage: -40° to 76°C (-40° to 170°F)
2820 E. Gretta Lane, Anaheim, CA 92806
ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com
© CALI. All rights reserved. CALI reserves the right to make changes or withdraw specifications without prior notice.
X (Specified Length)
1.37"
4.10"
.60"
4.21"
1.88"
Aircraft Cable Assembly
(ALS500T-SWM-AC)
ALS500T-SWM-MI
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
IMPORTANT NOTICE:
VERIFY CORRECT LUMINAIRE WAS RECEIVED WITH
CORRECT COLOR TEMPERATURE, VOLTAGE, AND WATTAGE BEFORE CUTTING OR
INSTALLING. CALI WILL NOT BE RESPONSIBLE IF INCORRECT LUMINAIRE IS INSTALLED.
ELECTRICAL
• ALS500T-SWM requires a remote driver. The driver may be mounted on
top of the luminaire or in a remote location.
• Drivers are 120V - 277V (UNV) Input Voltage and 24VDC Output Voltage
• To calculate driver size, determine Watts per Foot.
Example: 4W per Foot
• Determine Length in Feet.
Example: 20'
• To calculate Load, Multiply Watts per Foot x Length in Feet
Example: 4W x 20'= 80W. The Load of the driver is 80 Watts.
• Maximum load for a Class 2 low voltage luminaire is 96 Watts
INSTALLATION RECOMMENDATIONS
• ALS500T-SWM can be mounted to concrete, wood, or metal using proper
mounting hardware.
• Ensure surface material can support the weight of the luminaire.
INSTALLATION TOOL REQUIRED
• Electric Hammer Drills (optional)
• 14.4 to 28 Volt Cordless Drills
• Phillips Bits - Sufficient Quantity
• Utility Knife
• Electrical Cords
• Marker
• Wire Strippers
PRODUCT INFORMATION
• Indirect lighting
• 24 Volts DC for easy and safe installation
• Long life, energy efficient LEDs
• Available in 4 Watts up to 12 Watts Per Foot
• Can be ordered to specific lengths for when exact dimensions are known
Example: 10 x 10'6" (product is shipped in 8' max luminaires)
• Available for indoor (DRY) and (DAMP) rated installations
CONTENTS
HANGING BRACKET MOUNTING
TROUBLESHOOTING
CARE & MAINTENANCE
INSTALLATION INSTRUCTIONS
Overview
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tapes
• Chalk Line
Page 2
Page 3 - 5
Page 6 - 9
Page 10 - 12
Page 18
Page 19
Page 20
Page 1 of 20

Advertisement

loading

Summary of Contents for California Accent Lighting ALS500T-SWM-MI

  • Page 1: Table Of Contents

    TROUBLESHOOTING Page 19 CARE & MAINTENANCE Page 20 CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 1 of 20...
  • Page 2: California Accent Lighting, Inc

    To Power Source Circuit #2 Driver (White) CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 2 of 20...
  • Page 3 1.37” 4.0” .06” 4.81” 1.42” CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 3 of 20 © CALI. All rights reserved. CALI reserves the right to make changes or withdraw specifications without prior notice.
  • Page 4 Mount Wall Trim If applicable, install end caps to ends of runs. Ceiling Line CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 4 of 20 ©...
  • Page 5 Ceiling Line Note: Follow the steps on page 18 to install reflective film. CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 5 of 20 ©...
  • Page 6 6.50” 4.0” .06” 4.81” 1.42” CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 6 of 20 © CALI. All rights reserved. CALI reserves the right to make changes or withdraw specifications without prior notice.
  • Page 7: Aircraft Cable Mounting

    Note: Mount Wall Trim extrusion using at least 1 screw per 2’, rounded up. Ceiling Line Mount Wall Trim Ceiling Line CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 7 of 20 ©...
  • Page 8 Hard Ceiling Trim flush with projected location of ceiling drywall Ceiling Line CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 8 of 20 ©...
  • Page 9 Verify wiring diagram before connecting. Lead Wire CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 9 of 20 ©...
  • Page 10: Mounting Bracket Mounting

    5.45” 4.0” .06” 4.81” 1.42” CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 10 of 20 © CALI. All rights reserved. CALI reserves the right to make changes or withdraw specifications without prior notice.
  • Page 11 Wall Trim Slide Mounting Brackets onto Luminaire Ceiling Line CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 11 of 20 ©...
  • Page 12 (by others). Do not mount drivers between luminaires. Note: Driver size and location of mounting holes may differ from below example. CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph.
  • Page 13 • Install 1 Hanging Bracket in the center of each Rail Bracket. • Align each Rail Bracket with the center and ends of fixture. CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph.
  • Page 14 • Install 1 assembly centered and 2 assemblies about 4” from each end of luminaire. Note: Location may vary depending on accessibility mounting surfaces. Ensure each luminaire is balanced. CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph.
  • Page 15 • Install 1 bracket centered and 2 brackets about 4” from each end of luminaire. Note: Location may vary depending on accessibility mounting surfaces. Ensure each luminaire is balanced. CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph.
  • Page 16 Connect disconnects between luminaires, if applicable. Ensure connected runs do not exceed load of power supply. Note: Refer to Electrical section on first page for details on calculating load. CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph.
  • Page 17 2’ 8’ 6’ Seams between trim and fixtures not aligned CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 17 of 20...
  • Page 18: Reflective Film

    Miter Square Clean edge CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph. 800.921.CALI (2254) | fx. 714.535.7902 | info@calilighting.com | calilighting.com Page 18 of 20 ©...
  • Page 19 Setup your tester. First insert the black probe lead into the COM jack, then insert the red probe lead into the VΩ jack. CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph.
  • Page 20 • Do not hold, carry, or suspend alumLEDs by the power cord. • Do not install alumLEDs on ceilings without mounting clips and set screws. (Fig. 7) CALIFORNIA ACCENT LIGHTING, INC. 2820 E. Gretta Lane, Anaheim, CA 92806 5 / 20 / 2021 / Rev 3 ph.
