Podab WASHBASIC Getting Started

Dosing system for professional laundry machines
Hide thumbs

Advertisement

Quick Links

Download this manual
EN
WASHBASIC
Dosing System for Professional Laundry Machines
Contents:
1. GETTING STARTED ................................................................................................ 2
2. INSTALLATION ....................................................................................................... 3
3. ELECTRICAL CONNECTIONS................................................................................ 6
4. STARTUP, RUNNING AND PROGRAMMING MODE ............................................. 7
5. PROGRAMMING MENU .......................................................................................... 8
6. ALARMS ................................................................................................................ 10
7. MAINTENANCE & ACCESSORIES ....................................................................... 10
8. TROUBLESHOOTING ........................................................................................... 10
0000138874
WashBasic
rev. 1.0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WASHBASIC and is the answer not in the manual?

Questions and answers

Summary of Contents for Podab WASHBASIC

  • Page 1: Table Of Contents

    WASHBASIC WashBasic Dosing System for Professional Laundry Machines Contents: 1. GETTING STARTED ....................2 2. INSTALLATION ....................... 3 3. ELECTRICAL CONNECTIONS................6 4. STARTUP, RUNNING AND PROGRAMMING MODE ..........7 5. PROGRAMMING MENU ..................8 6. ALARMS ........................ 10 7. MAINTENANCE & ACCESSORIES ............... 10 8. TROUBLESHOOTING ...................

  • Page 2: Getting Started

    It is also possible to activate the unit dispensing with a remote switch (optional) to be connected to the WashBasic. A unique “Product Lockout” feature helps you control costs and product consumption. This book explains how to install and set up the WashBasic and where to turn for help so you can enjoy the most intuitive dosing system yet.

  • Page 3: Installation

    Mount the unit on a nearby wall (using suitable hardware) to the laundry machine. Try to keep the unit within one meter from the final rinse line to avoid long tubing runs. Locate the WashBasic as close to the chemical product tanks as possible in order to maximize both your motor and tube life.

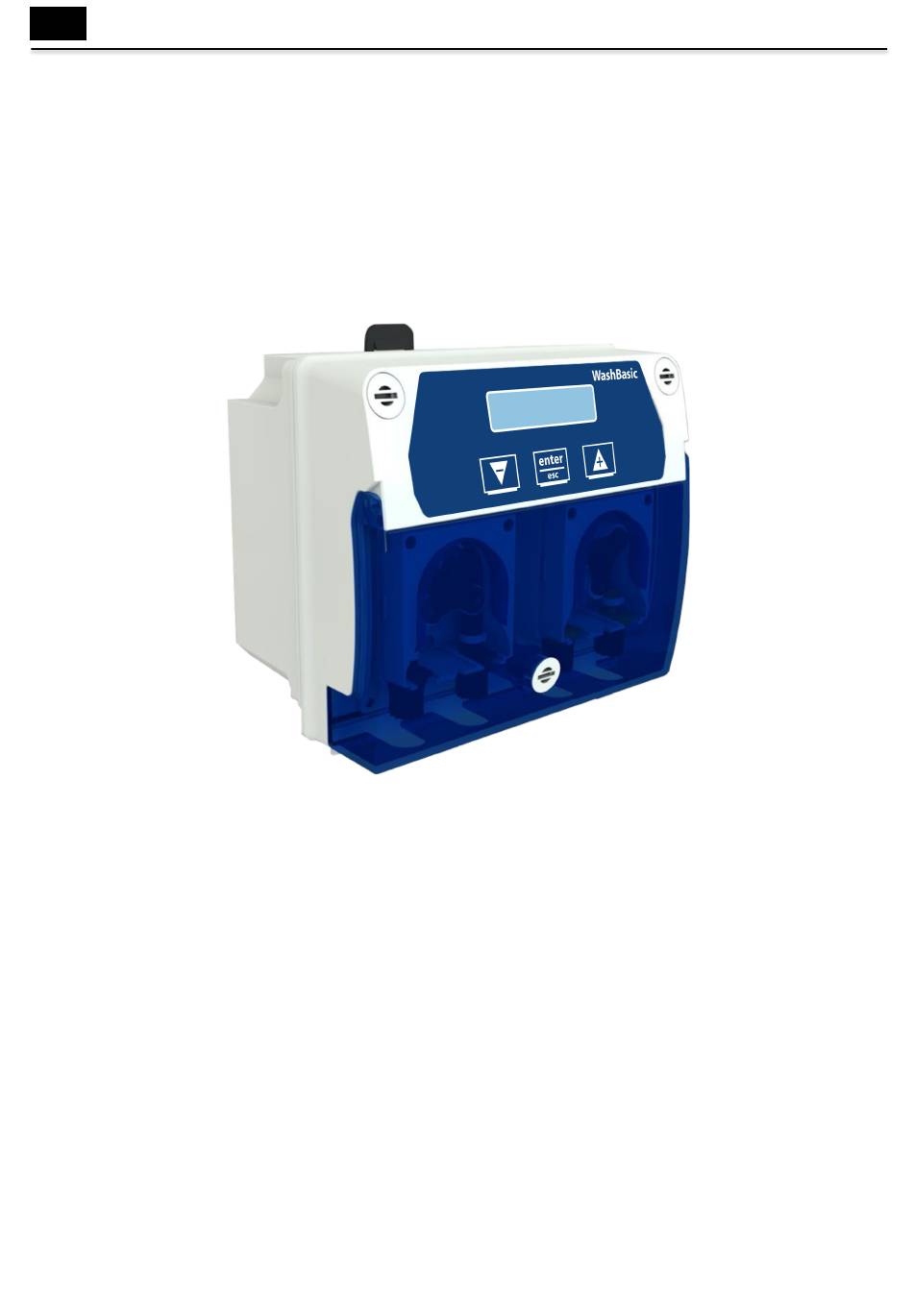

  • Page 4 WASHBASIC Picture 1 PLUMBING 2.2.1 Liquid product plumbing: Connect 8X12 mm (3/8") PVC tubing from the output (right) side of the pump to the injection point. Connect 8x12 mm (3/8") PVC tubing from the chemical source to the suction (left) side of the pump.
  • Page 5 WASHBASIC HOSE REPLACEMENT Open the pump’s lid and release Position the roller at 7h15, Completely release left the hose by pulling the left turning it in the direction of the connector, holding it taut towards connector upward. circular arrow. the outside, and turn the roller in...

  • Page 6: Electrical Connections

    CAUTION: The WashBasic has high voltage connected to the transformer. Always disconnect power when servicing the unit. All electrical connections to the WashBasic system should first be verified with a meter. Application of incorrect voltage will permanently damage the unit and is not covered under warranty. Avoid wiring to any power source that has large fluctuations in voltage and/or is prone to surges.

  • Page 7: Startup, Running And Programming Mode

    WASHBASIC 4. STARTUP, RUNNING AND PROGRAMMING MODE START UP When power is switched on, the display will briefly show the firmware code and its revision number and go through a self-test routine. Then it will show the default display: Ready...

  • Page 8: Programming Menu

    WASHBASIC 5. PROGRAMMING MENU PRIMING INSTRUCTIONS DISPLAY READING DESCRIPTION Ready Ready From standby, press for more than 3 sec. to access the programming menu. If the password is set, use to insert the password and press Password 0000 confirm. Prime to select Prime and press to confirm.
  • Page 9 WASHBASIC SETTING MENU DISPLAY READING DESCRIPTION Ready Ready From standby, press for more than 3 sec. to access the programming menu. If the password is set, use to insert the password and press Password 0000 confirm. Setting to select Setting and press to confirm.

  • Page 10: Alarms

    7. MAINTENANCE & ACCESSORIES MAINTENANCE Routine maintenance on the WashBasic unit includes replacing worn out pump tubes and keeping the unit clean. Repairs to the unit involve modular component replacements. This minimizes spare parts inventory requirements and speeds up the service process in the field.
  • Page 11 WASHBASIC Console The function Button Enable have to be enabled in order that the console can work. Fixed green: during Fixed green: during the dosage of the the dosage of the right pump left pump Flashing Red: Flashing Red: during an alarm of...
