Carbon Monoxide Alarm
User Guide
Model: KN-COP-DP-10YH (900-0284)
AC Plug-in Operated with Sealed Lithium Battery Backup
ATTENTION: Please take a few minutes to thoroughly read this
user guide which should be saved for future reference and passed
on to any subsequent owner.
P/N 2548-7201-01 EN
with LED escape and night light
Advertisement
Table of Contents
Related Manuals for Kidde KN-COP-DP-10YH
Summary of Contents for Kidde KN-COP-DP-10YH
- Page 1 Carbon Monoxide Alarm User Guide Model: KN-COP-DP-10YH (900-0284) AC Plug-in Operated with Sealed Lithium Battery Backup with LED escape and night light ATTENTION: Please take a few minutes to thoroughly read this user guide which should be saved for future reference and passed on to any subsequent owner.
-
Page 2: What To Do When The Alarm Sounds
What to do When the Alarm Sounds! Carbon Monoxide Alarm Procedure WARNING: Activation of the CO Alarm indicates the presence of Carbon Monoxide (CO) which can kill you. If alarm sounds 4 quick beeps, 5 seconds off: 1) Immediately move to fresh air - outdoors or by an open door/window. -
Page 3: Important Warning Statements
Note: Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO”. This Kidde carbon monoxide (CO) alarm is an important part of your family’s home safety plan. This alarm has been designed and tested to detect CO buildup in a residential environment. Your alarm is for use specifically in the home, but not for use in a boat or recreational vehicle. - Page 4 Important Warning Statements WARNING: This product is intended for use in ordinary indoor locations of family living units, not for use in boats or recreational vehicles. It is not designed to measure compliance with commercial or industrial standards. It is not suitable for installation in hazardous locations as defined in your local building code.
- Page 5 1. Information About Carbon Monoxide General Carbon Monoxide Information Carbon monoxide is a colorless, odorless and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Periodically review this alarm user guide and discuss your CO alarm emergency procedure with all the members of your family.
- Page 6 1. Information About Carbon Monoxide Carbon Monoxide PPM Levels Model KN-COP-DP-10YH is equipped with a digital display that shows levels of CO (displayed in PPM – parts per million). Learn the difference between dangerous, high, mid and low levels. Dangerous Levels: When someone is experiencing symptoms of CO poisoning and CO readings are generally above 100 PPM.
- Page 7 Because carbon monoxide is a cumulative poison, long-term exposures to low levels may cause symptoms, as well as short-term exposures to high levels. This Kidde unit has a time-weighted alarm – the higher the level of CO present, the sooner the alarm will be triggered.
-
Page 8: Product Features And Specifications

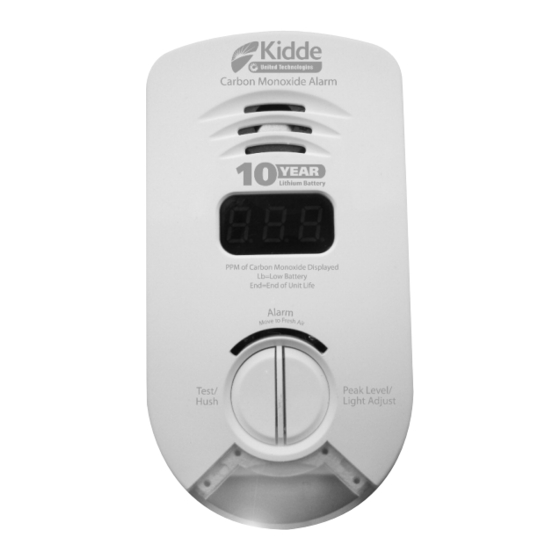

1. Information About Carbon Monoxide This CO alarm is designed to act as a monitor; it is not designed for use as a short-term testing device to perform a quick check for the presence of CO. CO alarms have limitations. Like any other electronic device, CO alarms are not fool-proof. - Page 9 2. Product Features and Specifications Model KN-COP-DP-10YH Rotating AC Plug Alarm Deactivation / Sounder Discharge Switch Digital Display Deactivation / Discharge Switch Cover Green Operate Red Alarm Light / Ambient Light Light Sensor Test/Hush Peak Level/Light Button Adjust Nightlight /...
- Page 10 2. Product Features and Specifications End of unit life Warning IMPORTANT: Ten (10) years after the initial power up, this alarm will “beep” two times every 30 seconds to indicate that it is time to replace the alarm. Display will show "End". To help identify the date to replace the alarm, a label has been affixed to the side of the alarm.
-
Page 11: Recommended Installation Locations
37.8°C (100°F) such as crawl spaces, attics, porches and garages. • Do not install within 1.5 m (5’) of heating or cooking appliances. (Kidde recommends 4.5 m (15’) to prevent nuisance alarms). • Do not install near vents, flues, chimneys or any forced/unforced air ventilation openings. -
Page 12: Installation Instructions
Within a few minutes, your carbon monoxide alarm will start monitoring for CO and will continue to do so as long as it receives power. Whenever the KN-COP-DP-10YH is operating, the digital display will display “0” (with AC applied) to indicate the unit is monitoring for CO. If the alarm senses dangerous levels of CO, the digital display will alternate between "CO"... - Page 13 6. Operating Characteristics This alarm will display a “0” if CO concentrations between 0 and 30 PPM have been detected within the last 15 seconds. When the unit is first powered up, the digital display will show three “eights” – indicating the alarm is in the start-up mode.
- Page 14 6. Operating Characteristics Peak Level Event Alert A Peak Level Event occurs whenever CO concentrations are greater than 100 PPM. The display will alternate between "PCO" and the currently measured CO concentration, (0-999), even if that concentration has returned to 0 PPM, (see Peak Level Memory section below to display peak level CO from the event).
-
Page 15: Maintenance
7. Maintenance NOTE: This unit is sealed. The cover is not removable. Due to the loudness of the alarm, we suggest that you place your fingers over the sounder opening while testing your alarm. Caution: Continuous exposure to the high sound level of this alarm over an extended period of time may cause hearing loss. - Page 16 7. Maintenance FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 17: Ten Year Limited Warranty
IMPORTANT: Do not remove unit back cover. Back cover removal will void warranty. Your Kidde Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
