OPERATION
This dispesner is used with the Travel Station Model #421250
Revised 11/03
ol ol
ol ol
(Foam-Rinse-Sanitize)
SERVICE
or the Sanitation Station Model #421210
FRS Dispenser
Model #421330
PARTS
CARE
Advertisement
Summary of Contents for Multi-Clean 421330

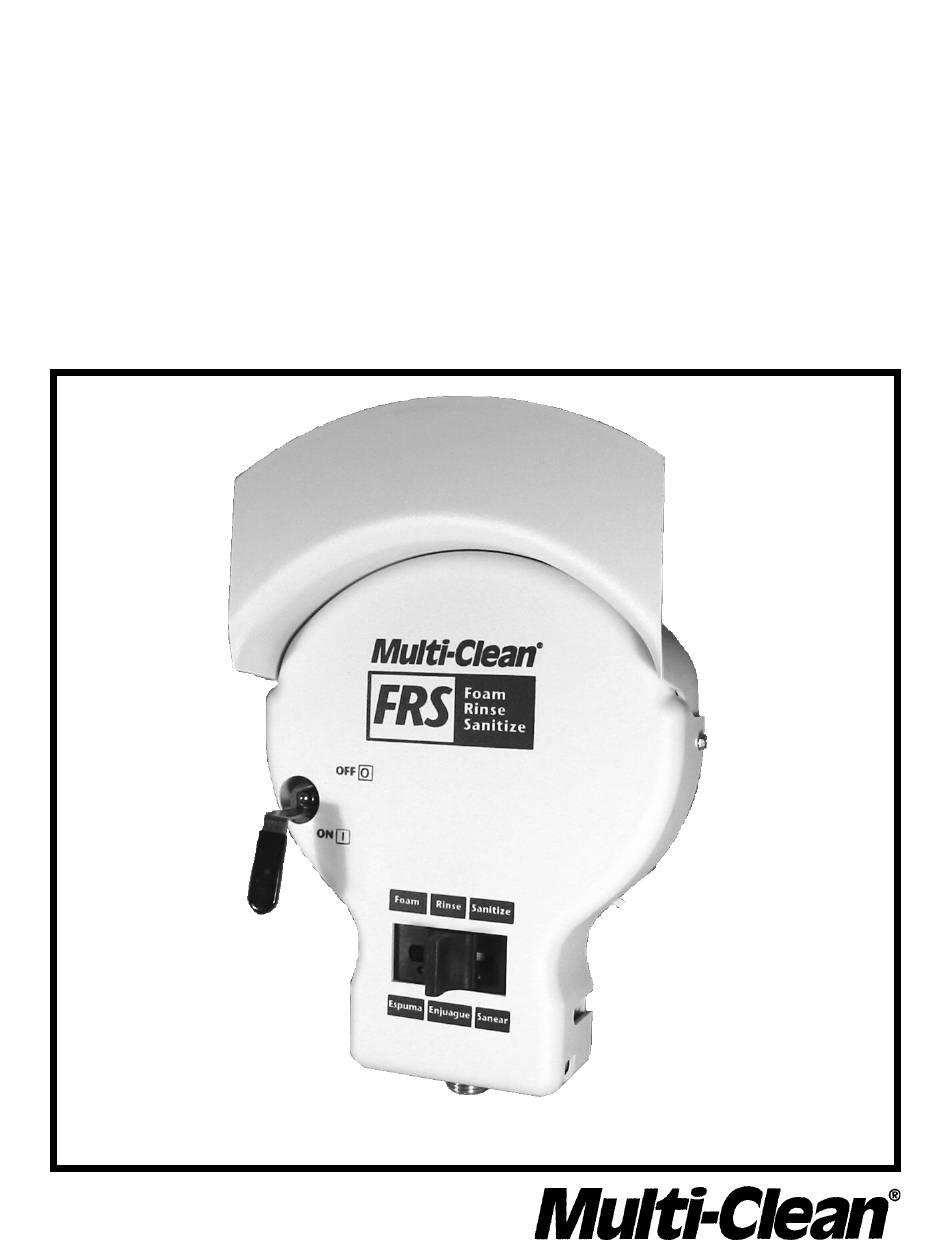

- Page 1 Dilution Contr ol ol ol ol ol Dilution Contr Dilution Contr (Foam-Rinse-Sanitize) Systems Systems Systems Systems Systems Model #421330 OPERATION SERVICE PARTS CARE This dispesner is used with the Travel Station Model #421250 or the Sanitation Station Model #421210 Revised 11/03...
- Page 2 Dilution Control FRS Dispenser Model #421330 THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS Please use this equipment carefully and observe all warnings and cautions. ************************************************** ************************************************** NOTE WEAR protective clothing and eyewear when dispensing chemicals or other materials. ALWAYS observe safety and handling instructions direct discharge away from you or other persons or into approved containers.
-
Page 3: Normal Cleaning
Measurement of Concentration: You can determine the dispensed water-to-product ratio for any metering tip size and product viscosity by operating the primed dispenser for about a minute and note two things: 1. The amount of dispensed water/product mixture. 2. The amount of concentrate used in preparation of the solution dispensed. Tip Selection Chart, select from the FOAMING cleaners and/or the SANITIZE products listed below. - Page 4 FRS Dispenser Diagram Insert sanitizer Insert foaming product tip here product tip here Item Description Cabinet back Eductor assembly Gear and bracket asm Elbow Connecting tube Check valve On/Off valve Metering tip Cap Hose Asm 421336...
- Page 5 Instructions for Travel Fig. 1 Mount FRS Station Kit 421250 Dispenser on cart Fig. 2 FRS Dispenser with cover removed Top Mounting holes Attach 8’ supply hose here Bottom Mounting holes Fig. 3 Attach 25’ discharge Foam Gun Foam hose here 421025 Fig.
- Page 6 Instructions for Sanitation FRS Dispenser with cover removed Station Kit 421210 Top Mounting holes Attach 8’ supply hose here Bottom Mounting holes Attach 25’ discharge hose here Foam Gun 421020 Sanitation Station Rack 421270 Wall Mount Instructions The Sanitation Station requires the FRS Dispenser to be mounted directly to a wall. Select a convenient height and mount the dispenser within 36 inches of concentrate rack 421270.
- Page 7 How to clean and sanitize meat rooms How to clean and sanitize showerooms...
-
Page 8: Limited Warranty
Multi-Clean Division warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of 90 days from date of purchase. In addition, Multi-Clean Division will, at its option, honor labor warranty claims for the first 90 days from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
