C 0876A

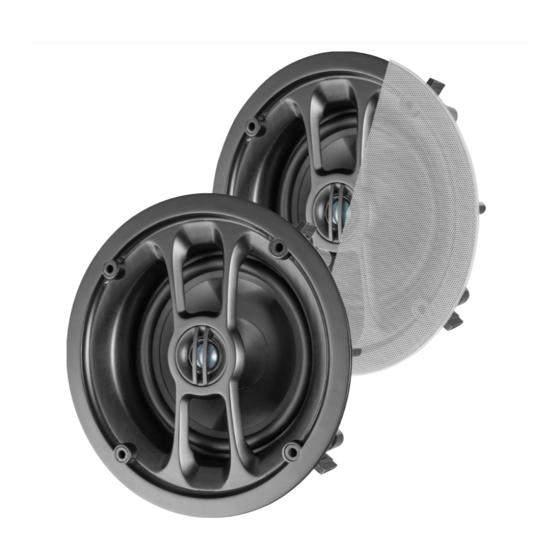

165mm 2-Way Round Wireless
Bluetooth Ceiling Speaker Pair
Operating Instructions
Features:
• Silk Dome Tweeter
• In-built 2 x 30W RMS amplifier
• Infra-red remote control adjustment
• Bluetooth Version 5.0
• Supports multi-room/zone installations
• In-app content, zone and output level control (Bluesonix)
• Additional Stereo RCA input (for aux amplifier input)
Advertisement
Table of Contents
Related Manuals for Opus One C 0876A
Summary of Contents for Opus One C 0876A

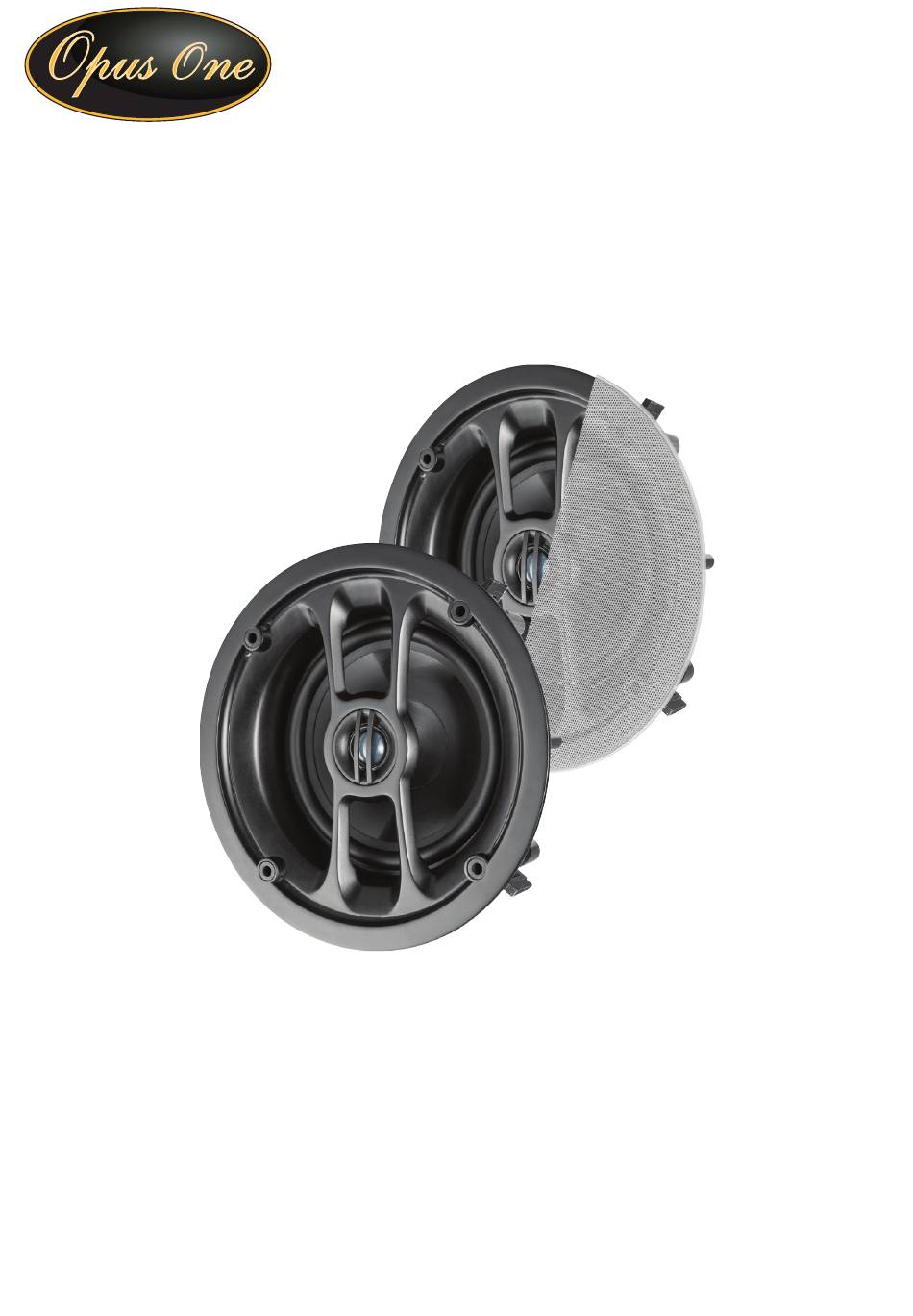

- Page 1 C 0876A 165mm 2-Way Round Wireless Bluetooth Ceiling Speaker Pair Operating Instructions Features: • Silk Dome Tweeter • In-built 2 x 30W RMS amplifier • Infra-red remote control adjustment • Bluetooth Version 5.0 • Supports multi-room/zone installations • In-app content, zone and output level control (Bluesonix)
-
Page 2: Specifications
C 0876A 165mm 2 Way Round Wireless Ceiling Speaker Pair Introduction: This Bluetooth active ceiling speaker system offers instant audio streaming from your smartphone, tablet or laptop with stunning audio reproduction. Built to enjoy the best content from your favourite music streaming service, app or podcast player. -
Page 3: Installation
C 0876A 165mm 2 Way Round Wireless Ceiling Speaker Pair Installation: 1. Trace the template in the speaker location, then simply cut along the line. 2. Connect the adapter to the power input. 3. Insert the speaker into the hole and adjust the dog leg with the installation tool... - Page 4 C 0876A 165mm 2 Way Round Wireless Ceiling Speaker Pair Installation: 4. Lock the speaker by pressing the buttons located on the front face of the speaker and the dog leg will engage automatically. 5. Place the grill on speaker. The grille will magnetically attaches to the rim of the speaker .
-
Page 5: Speaker Overview
C 0876A 165mm 2 Way Round Wireless Ceiling Speaker Pair Safety: 1. Please read the instructions carefully before installing and using the speakers. Keep the manual safe for future reference. 2. Prior to installing the speakers into any ceiling/wall, check the structure for weight bearing ability and avo bearing ability and avoid contact with any wiring or plumbing that might be behind the surface area. - Page 6 Connection: Bluetooth Connection Step 1: Power on the speaker and turn on the bluetooth on your device and connect to the “Opus One” Step 2: Enter the Bluetooth pairing password “0876” Step 3: Bluetooth is connected and the music can be play through the speaker Note: If your device fails to connect, reboot the speaker and repeat the process.
- Page 7 C 0876A 165mm 2 Way Round Wireless Ceiling Speaker Pair Create a Stereo Pair The C 0876A Bluetooth Ceiling Speaker is able to connect to and power an additional passive speaker via the speaker output. Turn the stereo/mono switch (No.8 on speaker overview) to the “stereo” mode when a passive speaker is attached.
- Page 8 C 0876A 165mm 2 Way Round Wireless Ceiling Speaker Pair LED Indicator Status • Red solid: Speaker booting up • Red slow flash: Speaker under standby mode, waiting for user operation • Blue flash: Speaker under Bluetooth pairing mode • Blue solid: Speaker is connected to the bluetooth device •...
- Page 9 C 0876A 165mm 2 Way Round Wireless Ceiling Speaker Pair Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty.
