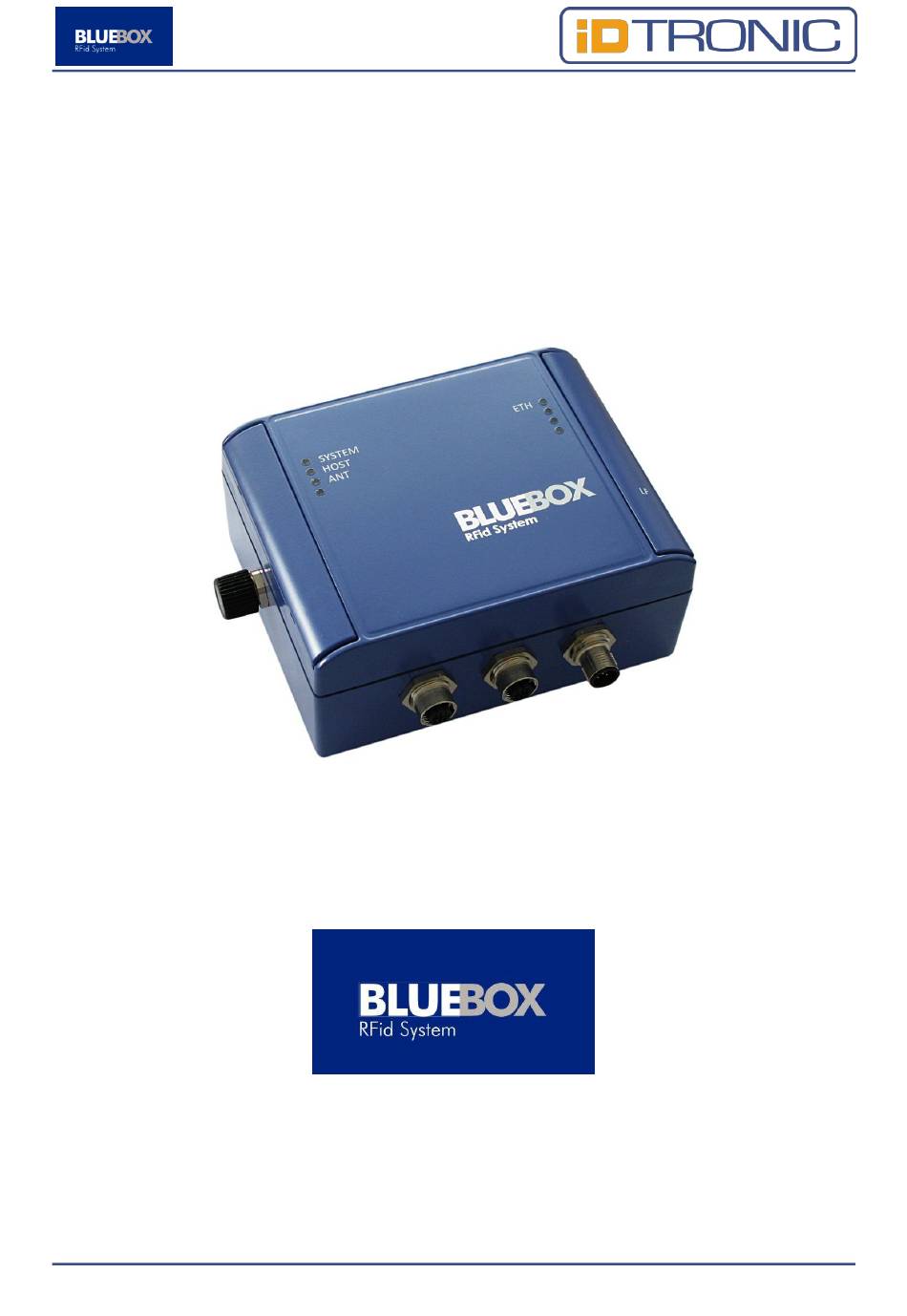

Page 1

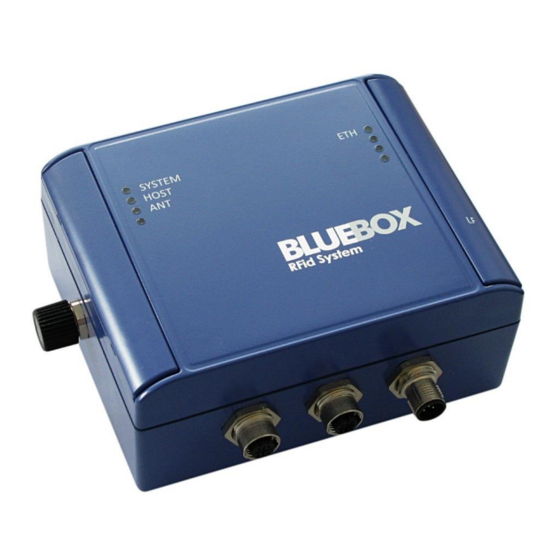

RFID System BLUEBOX GEN2 ADVANT UHF RS232 / RS485 / Ethernet / ProfiBus / Modbus/TCP BLUEBOX Advant UHF Page 1 of 102...
Page 2
• The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors, or omissions in the manual or BLUEBOX Advant UHF Page 2 of 102...
Page 3
ProfiBus communication interface. Read / write UHF RFID device with one external 5237U-S antenna. Serial RS232/RS485 communication interface. Read / write UHF RFID device with one external 5238U-S antenna. Ethernet 10-100M communication interface. BLUEBOX Advant UHF Page 3 of 102...
Page 7
A. Regions of Operation ................. 84 A.1. Operation in North America ............84 A.2. Operation in Europe ..............84 B. ‘.inf’ File ..................86 C. ‘.gsd’ File ..................88 D. Driver Install on Windows 8 OS ............99 BLUEBOX Advant UHF Page 7 of 102...
Virtual COM, is also available and used as service interface port to configure the functional parameters and to update the firmware of the device, the ‘BLUEBOX Show’ software of the SDK is foreseen to explicate these operations. Furthermore the BLUEBOX is able to handle 2 channels of digital I/O;...
USB Virtual COM 2 optoisolated I/O, Voltage 24Vdc Digital Inputs/Outputs As input: max current 10mA Reading distance depends on transponder type, antenna and environmental conditions. Reading distance depends on transponder type, antenna and environmental conditions. BLUEBOX Advant UHF Page 10 of 102...
2.1.5 Serial Version, up to 4 External Antennas (Item 5231U) Power Supply 24Vdc ± 10% Power Ratings 15W @RFout=30dBm Operating Frequency 840 MHz … 960 MHz, software configurable Reading distance depends on transponder type, antenna and environmental conditions. BLUEBOX Advant UHF Page 11 of 102...
USB Virtual COM 2 optoisolated I/O, Voltage 24Vdc Digital Inputs/Outputs As input: max current 10mA Reading distance depends on transponder type, antenna and environmental conditions. Reading distance depends on transponder type, antenna and environmental conditions. BLUEBOX Advant UHF Page 12 of 102...
ISO 18000-6C (EPC Class-1 Generation-2) Communication Interface Ethernet 10/100M Service Interface USB Virtual COM Reading distance depends on transponder type, antenna and environmental conditions. Reading distance depends on transponder type, antenna and environmental conditions. BLUEBOX Advant UHF Page 14 of 102...
ISO 18000-6C (EPC Class-1 Generation-2) Communication Interface ProfiBus Service Interface USB Virtual COM Reading distance depends on transponder type, antenna and environmental conditions. Reading distance depends on transponder type, antenna and environmental conditions. BLUEBOX Advant UHF Page 16 of 102...
0.5mt from the antenna. Inventory Mode Time with No Tag Time with 1 Tag Fast Multi Tag 15ms 23ms Fast Single Tag 15ms 18ms Standard Multi Tag 15ms 25ms BLUEBOX Advant UHF Page 21 of 102...
Page 22
Standard Single Tag 15ms 20ms BLUEBOX Advant UHF Page 22 of 102...
Two subsets of the ‘continuous’ mode are also defined: • ‘Trigger’ mode: the activation and deactivation of the ‘continuous’ mode is triggered with inputs. The trigger could be level sensitive or edge sensitive BLUEBOX Advant UHF Page 23 of 102...
Page 24
5232U-MB) integrates an auto antenna tuning feature which allows the usage of the reader in many different environments and configurations. The auto antenna tuning is done at every power on and during normal operations of the reader. BLUEBOX Advant UHF Page 24 of 102...
Items 5221U, 5222U, 5223U, 5237U, 5238U and 5239U are not covered by this section! See B5U020xxxE and B5U021xxxE manuals operating features and configuration details. General Parameters Hereinafter the configurable general parameter of the BLUEBOX. Parameter Description Range Default Device Address Device address of the reader.
Page 26
Flags. Single bits are dedicated to disable (0 value) or enable (1 value) functions: • Bit 7: Automatic buzzer management; Flags • Bit 6: Automatic output 1 management; • Bit 5: Reading antenna information in Data Request, Queue Request and Inventory commands; BLUEBOX Advant UHF Page 26 of 102...
Bit 2: Trigger ‘continuous’ mode with inputs (see the I/O parameters); • Bit 1: Not used; • Bit 0: To disable the ‘continuous’ mode. Configuration Parameters Hereinafter the configurable operational parameters of the BLUEBOX. 3.2.1 Ethernet Hereinafter the configurable Ethernet parameters of the BLUEBOX. Parameter Description Range...
In case of MODBUS/TCP communication interface (items 5222U- MB-S, 5238U-MB-S, 5232U-MB) the TCP communication port is internally fixed to 502 which is the TCP communication port of the MODBUS/TCP communication protocol. 3.2.2 ProfiBus Hereinafter the configurable ProfiBus parameters of the BLUEBOX. Parameter Description Range Default...
The changed ProfiBus parameters become effective only after a reset of the BLUEBOX. Reset the BLUEBOX using the ‘Reset Device’ command or via a hardware reset. 3.2.3 Input/Output Hereinafter the configurable input/iutput parameters of the BLUEBOX. Parameter Description Range Default Input 1 activation / deactivation mode of the...
Page 30
Parameters’ commands as described in protocol technical manuals where the parameters 1…7 fields with default values are: Input1 Input2 Extension Debounce Gate Time 0x00 0x00 Mode Mode Time Time 0x01 0x00 0x00 0x00 0x00 0x00 0x00 Where: BLUEBOX Advant UHF Page 30 of 102...
The changed input/output parameters become effective only after a reset of the BLUEBOX. Reset the BLUEBOX using the ‘Reset Device’ command or via a hardware reset. 3.2.4 RF and EPC C1G2 (Class-1 Generation-2) Hereinafter the configurable RF parameters of the BLUEBOX. Parameter Description Range Default Europe (ETSI...
Page 32
Activation / deactivation of the standby mode RF Chip of the RF chip during RF off conditions to Disabled, Enabled Standby Mode reduce power consumption and temperature enabled increase. List of region frequencies: BLUEBOX Advant UHF Page 32 of 102...
Page 34
922.75 923.25 923.75 924.25 924.75 925.25 925.75 926.25 926.75 927.25 Hereinafter a cross-table between RF channel internal numeration and ETSI numeration according with EN 302208-1. Internal RF Channel ETSI EN 302208-1 RF Channel BLUEBOX Advant UHF Page 34 of 102...
Page 35
The Q value used in fixed Q selection algorithm or the starting Q value used in dynamic Q Q Value 0 … 15 selection algorithm as defined in EPC Class 1 Generation 2 protocol. BLUEBOX Advant UHF Page 35 of 102...
Page 36
ReadAfterDetect bank in ReadAfterDetect mode (Inventory 0 … 255 Length Mode = Standard Single/Multi with Custom Info). In case of Reserved or User bank selected 0 means no tag’s memory block BLUEBOX Advant UHF Page 36 of 102...
Page 37
Bit 3: Not used; • Bit 2: Not used • Bit 1: Not used; • Bit 0: To disable the RF chip standby mode. The parameters 1…7 fields with default values of page 0x02 are: BLUEBOX Advant UHF Page 37 of 102...
Page 38
The maximum period of consecutive transmission on the same RF channel. 0 stands RF Maximum for default settings of the selected region: Allocation • Europe (ETSI):4 secs in ‘continuous’ mode, no allocation time in ‘continuous’ Time mode triggered by input. BLUEBOX Advant UHF Page 38 of 102...
Page 39
0x1: Fast Single Tag: The same inventory mode like the Fast Multi Tag, but with the slot count of 1. This has the effect that no anticollision procedure is performed. 0x2: Standard Multi Tag: Inventory mode like defined in the EPC C1G2 standard. BLUEBOX Advant UHF Page 39 of 102...
Page 40
Miller 4, Miller 8 320 kHz Miller 4, Miller 8 EPC Size The size of the recognized EPC in bytes. 0 means all EPC sizes. The parameters 1…14 fields with default values of page 0x82 are: BLUEBOX Advant UHF Page 40 of 102...
Page 41
Bit 5: Not used; ct EPC Bank • Bit 4: Not used; Info • Bit 3: Not used; • Bit 2: CRC field; • Bit 1: EPC field; • Bit 0: PC field. BLUEBOX Advant UHF Page 41 of 102...
Rounds Inventory The inventory cycles in inventory command. Cycles The changed ReadAfterDetect parameters become effective only after a reset of the BLUEBOX. Reset the BLUEBOX using the ‘Reset Device’ command or via a hardware reset. 3.2.5 Dynamic Power Management Hereinafter the configurable dynamic power management parameters of the BLUEBOX.
Decimal 1 … 99 for time in ms x 100 (0.1 … 9.9 seconds). The changed dynamic power management parameters become effective only after a reset of the BLUEBOX. Reset the BLUEBOX using the ‘Reset Device’ command or via a hardware reset.
Page 44
Status Byte Description • Bit 1: Input 2 status (1=activated) • Bit 0: Input 1 status (1=activated) BLUEBOX Advant UHF Page 44 of 102...
BLUEBOX is placed a mini USB type B port for service purpose and future implementations. Mini USB B Typical Description +5V BUS +5 Vdc USB D- USB Data- USB D+ USB Data+ Ground BLUEBOX Advant UHF Page 45 of 102...
Hereinafter a cross reference table between connection pin number and the color of the wires of a standard open ended cable. Wire Cable Color RS485 RT+ White RS485 RT- Brown RS485 Green TERM. RT- RS232 Rx Yellow BLUEBOX Advant UHF Page 46 of 102...
Page 47
Hereinafter a cross reference table between connection pin number and the color of the wires of a standard open ended cable. Wire Cable Color IO Vin Brown White IO Gnd Blue Black Grey BLUEBOX Advant UHF Page 47 of 102...
Page 48
+PWR pin 1 and Input pin 2 (channel 1) or Input pin 4 (channel 2); max applicable current is 10mA. When the I/O is used as input, do not use it also as output to avoid conflicts! (c) Power supply interface: 5-poles M12 A-coded male connector BLUEBOX Advant UHF Page 48 of 102...
- PWR Blue N.C. Black Grey Ethernet Version (Items 5222U, 5222U-S, 5238U, 5238U-S, 5232U) a) Ethernet interface: 4-poles M12 D-coded female connector Typical Description Transmit data + Receive data + Transmit data - BLUEBOX Advant UHF Page 49 of 102...
Page 50
If IOx is used as output, the load has to be connected between Output pin 2 (channel 1) or Output pin 4 (channel 2) and –PWR pin 3; max applicable current is 500mA. BLUEBOX Advant UHF Page 50 of 102...
Page 51
When the I/O is used as input, do not use it also as output to avoid conflicts! (c) Power supply interface: 5-poles M12 A-coded male connector Typical Description + PWR 18Vdc 24Vdc 36Vdc DC power supply BLUEBOX Advant UHF Page 51 of 102...
N.C. White - PWR Blue N.C. Black Grey ProfiBus Version (Items 5223U, 5223U-S, 5239U, 5239U-S, 5233U) (a) ProfiBus interface: 5-poles M12 B-coded female connector Typical Description +5V BUS +5Vdc BUS-B GND BUS BUS-A BLUEBOX Advant UHF Page 52 of 102...
Page 53
If IOx is used as output, the load has to be connected between Output pin 2 (channel 1) or Output pin 4 (channel 2) and –PWR pin 3; max applicable current is 500mA. BLUEBOX Advant UHF Page 53 of 102...
Page 54
10mA. When the I/O is used as input, do not use it also as output to avoid conflicts! MODBUS/TCP Version (Items 5222U-MB-S, 5238U-MB-S, 5232U-MB) a) MODBUS/TCP interface: 4-poles M12 D-coded female connector BLUEBOX Advant UHF Page 54 of 102...
Page 55
Hereinafter a cross reference table between connection pin number and the color of the wires of a standard open ended cable. Wire Cable Color IO Vin Brown White IO Gnd Blue Black Grey BLUEBOX Advant UHF Page 55 of 102...
Page 56
+PWR pin 1 and Input pin 2 (channel 1) or Input pin 4 (channel 2); max applicable current is 10mA. When the I/O is used as input, do not use it also as output to avoid conflicts! (c) Power supply interface: 5-poles M12 A-coded male connector BLUEBOX Advant UHF Page 56 of 102...
Page 57
Hereinafter a cross reference table between connection pin number and the color of the wires of a standard open ended cable. Wire Cable Color + PWR Brown N.C. White - PWR Blue N.C. Black Grey BLUEBOX Advant UHF Page 57 of 102...
EIRP (Efficient Isotropic Radiating Power) is used as a measure. The maximum RF output power is defined by the antenna gain, the half power beam width and the cable attenuation on the reader - antenna BLUEBOX Advant UHF Page 58 of 102...
The reader with external antenna has a maximum reading distance of about 8 BLUEBOX 1 external antenna version. Up to 4 External Antennas (Items 5231U, 5232U, 5233U, 5232U-MB) The reader with external antenna has a maximum reading distance of about 10 BLUEBOX Advant UHF Page 59 of 102...
Page 60
Antenna nr 4 Antenna nr 1 Antenna nr 3 Antenna nr 2 BLUEBOX 4 external antennas version. BLUEBOX Advant UHF Page 60 of 102...
(off) • Hardware defect • System upgrade Flashing cyclic • Antenna active, no tag detected (green) with 2Hz Flashing cyclic • Antenna not active (green) with 1Hz • Antenna active, tag detected (green) BLUEBOX Advant UHF Page 61 of 102...
Antenna 1 active, no tag detected (green) with 2Hz Flashing cyclic • Antenna 1 not active (green) with 1Hz ANT1 • Antenna 1 active, tag detected (green) • Antenna 1 error (red) • System initialization BLUEBOX Advant UHF Page 62 of 102...
Page 63
• Antenna 4 not active (green) with 1Hz • Antenna 4 active, tag detected ANT4 (green) • Antenna 4 error (red) • System initialization • Power supply for the device is (off) missing BLUEBOX Advant UHF Page 63 of 102...
Antenna not active (green) with 1Hz • Antenna active, tag detected (green) • Antenna error (red) • System initialization • Power supply for the device is missing (off) • Hardware defect • System upgrade BLUEBOX Advant UHF Page 64 of 102...
Antenna 1 active, no tag detected (green) with 2Hz Flashing cyclic • Antenna 1 not active (green) with 1Hz ANT1 • Antenna 1 active, tag detected (green) • Antenna 1 error (red) • System initialization BLUEBOX Advant UHF Page 65 of 102...
Page 66
• Antenna 4 not active (green) with 1Hz • Antenna 4 active, tag detected ANT4 (green) • Antenna 4 error (red) • System initialization • Power supply for the device is (off) missing BLUEBOX Advant UHF Page 66 of 102...
(off) • Hardware defect • System upgrade Flashing cyclic • Antenna active, no tag detected (green) with 2Hz Flashing cyclic • Antenna not active (green) with 1Hz • Antenna active, tag detected (green) BLUEBOX Advant UHF Page 67 of 102...
• Hardware defect Flashing cyclic • No HOST connection (green) with 2Hz • HOST connection (green) HOST • System initialization (red) • Power supply for the device is missing (off) • Hardware defect BLUEBOX Advant UHF Page 68 of 102...
Page 69
1Hz • Antenna 3 active, tag detected (green) ANT3 • Antenna 3 error (red) • System initialization • Power supply for the device is missing (off) • Hardware defect • System upgrade BLUEBOX Advant UHF Page 69 of 102...
System error (red) • System initialization SYSTEM • System upgrade (orange) • Power supply for the device is missing (off) • Hardware defect Flashing cyclic HOST • No HOST connection (green) with 2Hz BLUEBOX Advant UHF Page 70 of 102...
Page 71
Connection waiting for comm. (green) with 5Hz STS0 • Connection estabilished (green) • Connection not ready (off) • Hardware defect Flashing cyclic • System error (red) with 2Hz STS1 • Communication error (red) BLUEBOX Advant UHF Page 71 of 102...
2Hz • Antenna 1 active, tag detected (green) ANT1 • Antenna 1 error (red) • System initialization • Power supply for the device is missing (off) • Hardware defect • System upgrade BLUEBOX Advant UHF Page 72 of 102...
Page 73
ANT4 • Antenna 4 error (red) • System initialization • Power supply for the device is missing (off) • Hardware defect • System upgrade • Link, a connection to the Ethernet (green) exists BLUEBOX Advant UHF Page 73 of 102...
Page 74
• Connection estabilished (green) • Connection not ready (off) • Hardware defect Flashing cyclic • System error (red) with 2Hz • Communication error STS1 (red) • No communication error (off) • Hardware defect BLUEBOX Advant UHF Page 74 of 102...
Installation To install the BLUEBOX, it is necessary to remove the lateral hinges of the enclosure (highlighted with red arrows in the image below). Fix the enclosure to a support (wall, column, ..) using the 4 holes (already provided within the enclosure) and choosing suitable screws.
Added the reader’s firmware versions object of this manual. Added the test modes description and auto antenna 04/08/17 1.10 tuning description in operating features section. Corrections in operating features section. Added the RF chip standby mode in RF parameters. BLUEBOX Advant UHF Page 82 of 102...
Page 83
Updated the reader’s firmware versions object of this manual. Added the readers with MODBUS/TCP interface (items 18/09/17 1.11 5222U-MB-S, 5238U-MB-S, 5232U-MB) to this manual. Corrections in the general and configuration parameters. Corrections in the status indications. BLUEBOX Advant UHF Page 83 of 102...
In some applications (i.e. conveyor systems) it may be necessary for interrogators to transmit while tags are not present. To accommodate such requirements, the device shall include within interrogators a means to minimize BLUEBOX Advant UHF Page 84 of 102...
Page 85
This may include the provision of trigger mechanisms within interrogators to initiate transmissions. RF Channel Frequency [MHz] 865.7 866.3 866.9 867.5 BLUEBOX Advant UHF Page 85 of 102...
First, select "Settings" on the right side of your screen: Select "Change PC Settings": Navigate to "General" settings and then scroll down to "Advanced Startup". Click on "Restart": After that, Click on "Troubleshoot": BLUEBOX Advant UHF Page 99 of 102...
Page 100
On the next screen, choose "Advanced Options": Then click on "Startup Settings": BLUEBOX Advant UHF Page 100 of 102...
Page 101
Then click on the "Restart" button: After your computer reboots, another screen will appear where you will be asked to press a number to choose an option. So press 7 or F7: BLUEBOX Advant UHF Page 101 of 102...
Page 102
When you install the driver, this prompt will appear on screen. Select "Install this driver software anyway": BLUEBOX Advant UHF Page 102 of 102...
