Summary of Contents for M3 Stop Log Barrier

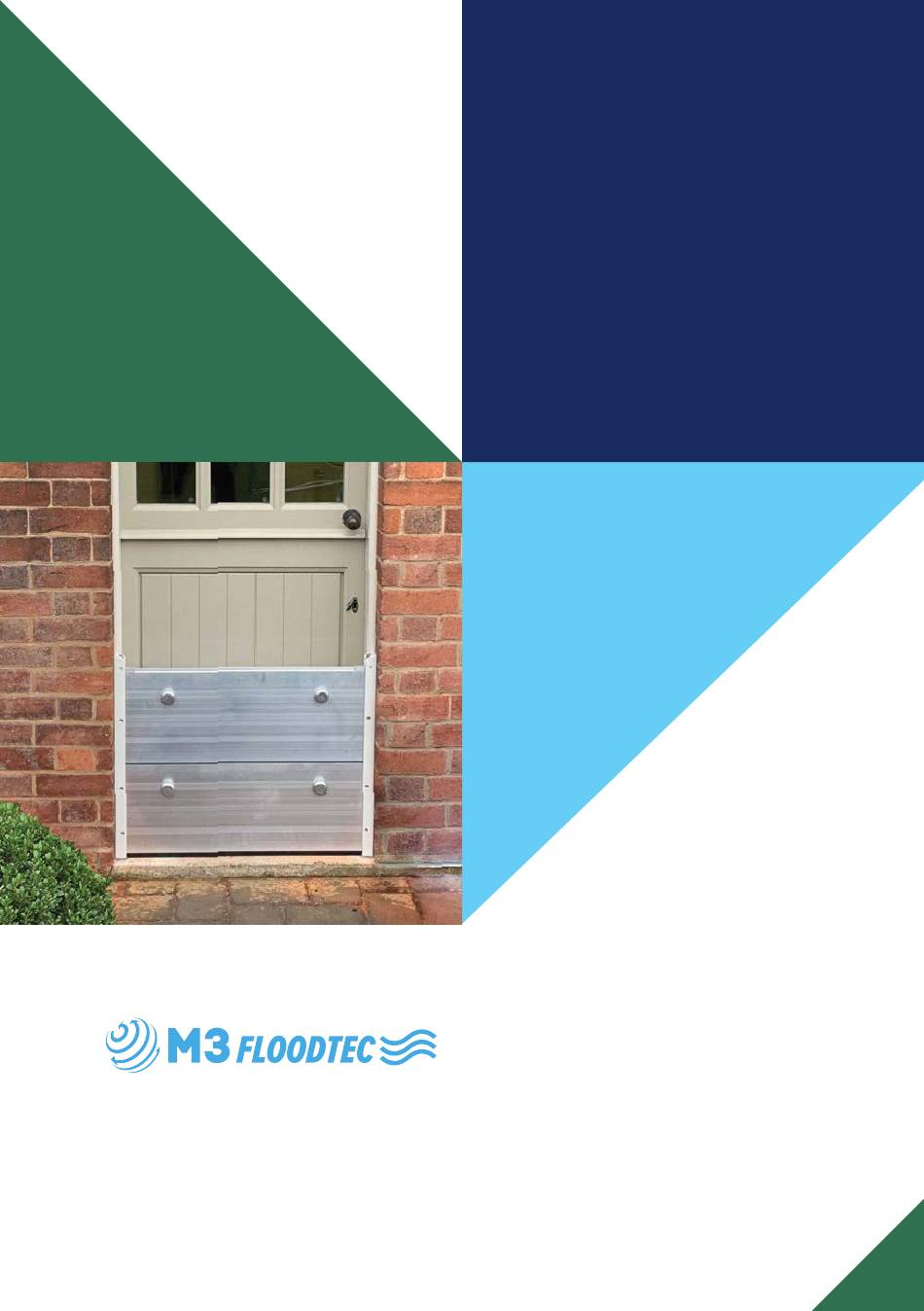

- Page 1 Stop Log Barrier System Installation Guide...
- Page 2 Innovative solutions that benefit the Environment and provide enhanced value to our Clients M3 Global Flood Technologies Ltd. 9a Wassage Way, Hampton Lovett Ind Est, Droitwich Worcestershire WR9 0NX. Tel: +44 (0)1905 676467 Email: sales@m3floodtec.com...
- Page 3 Stop Log Barrier System | Contents Contents Introduction Installation Deployment...
- Page 4 Stop Log Barrier System Lightweight, robust and versatile, designed to span wide distances and easily deployed in a flood situation. The M3 Stop Log Barrier is suitable for use on residential and smaller commercial properties to protect doorway apertures against water ingress.
- Page 5 Stop Log Barrier System | Introduction...
- Page 6 Installation - Wall Rails (Face & Reveal) 1. Clean walls and base 2. Confirm previously made 3. If top and bottom gaps with brush and ensure measurements of opening vary, take the smallest that there are no raised widths. size. You must ensure that obstructions that could finished rails are totally affect the final position of...
- Page 7 Stop Log Barrier System | Installation 6. Mark hole positions - drill holes and insert plugs to 7. Using CT1 Adhesive suit 6 x 50 screws ensuring that the wall post is sealant (available from compressing the EDPM pad. your local merchant) apply...
- Page 8 Installation - Wall Rails (Face & Reveal) 10. Apply extra CT1 to 11. Trim off excess edges all exposed edges to of EPDM pad under wall completely seal the post and, if required, apply verticals and finish the CT1 sealant adhesive in aesthetic look of the cases of ‘rough’...
- Page 9 Stop Log Barrier System | Deployment Deployment (Face and Reveal) 1. Panel 1 is lowered into 2. Panel 2/ 2a is lowered 3. It is important to check into the Panel 1 ensuring that both ends of the middle position ensuring it is...
- Page 10 * Panel 2 is determined by the fact it has only one middle seal on the top. * Panel 2a is an additional Panel 2 for barriers with more than 3 panels. * Panel 2 is determined by the fact it has no seals. Any questions? Contact M3 Floodtec on +44 (0)1905 676467...
- Page 11 Stop Log Barrier System | Notes 11 Notes...
- Page 12 M3 Global Flood Technologies Ltd. 9a Wassage Way, Hampton Lovett Ind Est Droitwich, Worcestershire WR9 0NX Tel: +44 (0)1905 676467 Email: sales@m3floodtec.com m3floodtec.com...
