Summary of Contents for WaterTech Volt Series
-
Page 2: Table Of Contents

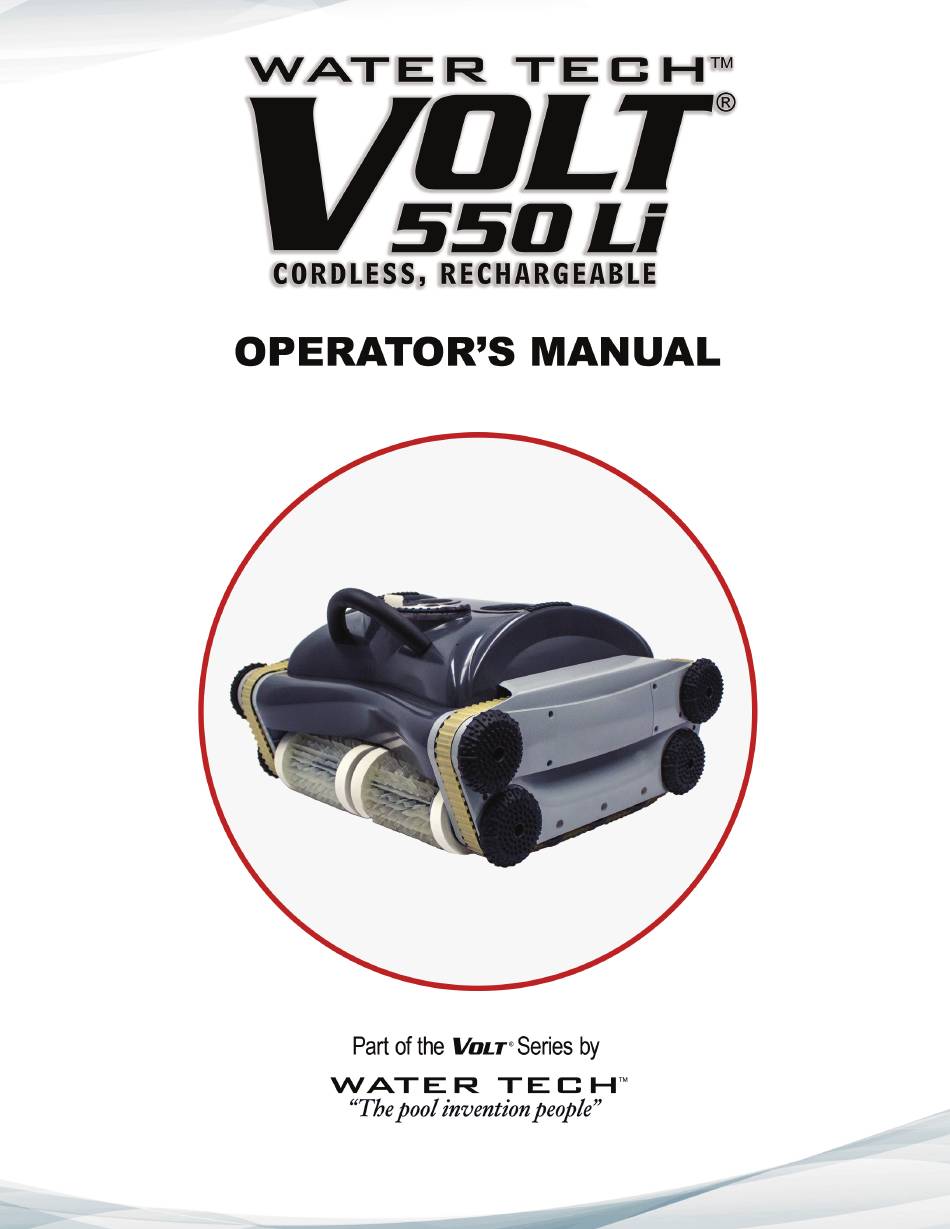

Contents OPERATOR MANUAL Dear Valued Water Tech Customer, Thank you for choosing Water Tech’s innovative new swimming pool cleaner, the Volt 550Li. The Volt 550Li has been designed to be completely “user friendly” beginning with its “Hands-Free” launch into your pool. Simply place the cleaner at poolside, press one button and the Volt 550Li will climb into the pool by itself and get to work. -
Page 3: Warnings & Cautions
IMPORTANT SAFETY INSTRUCTIONS Save these instructions Before using your Volt 550Li, please read the following warnings and read carefully through this Operator Manual. This appliance is not intended for use by persons (including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. -
Page 4: Package Contents
Package Contents Volt 550Li Charger Hook * The hook attaches to your standard size pool pole to help you retrieve the unit from your pool. -
Page 5: Specifications
Specifications Volt 550Li Specifications Cleaning Coverage (sq. ft./hr.)....3542 sq. ft./hr. Minimal Operation Depth........16 in. Maximum Operation Depth........15 ft. Run Time..........Up to 4 Hours. Charging Time..........6-8 Hours. Cleaning Width............18.0”. Suction Power........Up to 7200 gal. /hr. Unit Size.........19.85 x 18.0 x 11.0”. Unit Weight............21 lbs. -
Page 6: Knowing Your Unit
Knowing Your Unit Full Unit - Rear Full Unit Full Unit - Bottom Bottom - Cover Closed Bottom - Filter Bag - Cover Filter Bag with Cover... -
Page 7: Knowing The Control Panel / Smart Features
Knowing The Control Panel On the next page, you will find more detail on how each mode and cycle works. *Note: When your Volt 550Li is in sleep mode, only the Battery LEDs (and ON/OFF LED for “Weekly” Mode) will stay ON. Smart Features No matter which modes are chosen, these smart features are included into the software: •... -
Page 8: Select Cleaning Cycle
a. Select Cleaning Cycle You can program the Volt 550Li to run continuously or in intervals over a week long period. 1-Day Cleaning Cycle • 1-Day: The Volt 550Li will run continuously for up to 2 hours and then go into sleep mode. If 2 hours is not enough, you can wake the robot from the sleep mode to start another 2-hour cycle. -
Page 9: Weekly Mode Running Schedule / Select Cleaning Mode
Weekly Cycle Running Schedule Weekly cycle runs your robot every day for a full week. Starting from when you first turn it on, the robot will clean approximately 60 minutes. Then at the same time every day for the remainder of the week, the robot will run for approximately 30 minutes. b. -
Page 10: Prepare The Cleaner For Use
Prepare the Cleaner for Use a. Charging your cleaner CHARGING TIME: 6-8 HOURS Be sure to charge in a dry shaded area. The robot cannot be charged while in the pool. But the robot can be charged immediately after removing from the pool. - Page 11 Battery Packs Charged Battery Packs Charging (Solid) (Flashing) As both battery packs are charging, Once a battery pack is fully charged, its the LEDs (shown above) will flash. LED will turn solid. It is common for 1 LED to turn solid before the other. If one or both LEDs are not flashing or do not turn solid, contact Water Tech Customer Service.
-
Page 12: Filter Bag Mounting
Prepare the Cleaner for Use b. Filter Bag mounting Closed Cover Unlocked Cover To remove the Filter Bag, flip the You will feel the knob “snap” as the lock Volt 550Li upside-down and turn the knob is undone. Note that the locks will move on the bottom counter-clockwise. - Page 13 Lock Cover Filter Bag & Cover (In) Re-insert the filter bag with the cover on Turn the knob clock-wise to lock the top. Make sure you lock the bag under cover. You will hear a “snap” again as the the two locking tabs (Illustrated above as cover locks.
-
Page 14: Start Cleaning
Start Cleaning Aim at the pool When the Volt 550Li is done charging, it’s Aim the Volt 550Li at the pool (place robot important that you DO NOT submerge the roughly 3 ft. from the edge of the pool). Volt 550Li in water without replacing the For above ground pools, drop the robot in the pool after rubber plug covering the charging jack. -
Page 15: Retrieval After Use
Retrieval After Use Warning! Risk of Drowning! NOT a life saving device. Never allow children or persons who cannot swim to use this product. This product is designed Cleaner can stay in the pool for up to be used around a residential swimming to 7 continuous days, even with pool and a person who cannot swim can drown if they accidentally fall into the pool... -
Page 16: Owner Performed Maintenance
Owner Performed Maintenance a. Filter Bag Always remove and clean the filter bag after every use. Do not store the unit with a dirty filter. b. Filter Screen Check the filter screen (Highlighted in red above) for any debris that may have escaped the filter bag. -
Page 17: Cleaning Bottom Cover
c. Cleaning bottom cover 1. Press outward on the bottom cover so 2. While still pressing outward, lift the the valve mount can fit around triangular valve mount up and out of the bottom tabs (shown circled above). cover. Rinse out the valve mounts and bottom cover. -
Page 18: Impeller Maintenance
CAUTION: Make sure the unit is turned OFF before performing maintenance to impellers! d. Impeller Maintenance 1. It is important to routinely check for 2. Look down at the unit from the debris trapped in the impeller. The top and check for debris around the “Floor Only”... - Page 19 CAUTION: Make sure the unit is turned OFF before performing maintenance to impellers! 5. Check inside for any debris and 6. Reassembling Covers: Insert the tab remove the debris by hand. of the cover into the slot on the top of the unit.
-
Page 20: Long Term Storage
e. Long Term Storage • Before long term storage, run the Volt 550Li until the batteries are fully discharged. Then use the chart below to charge the batteries the appropriate amount before storing. Number of Months 3 Months 6 Months 9 Months to be Stored Charge for... -
Page 21: Volt 550Li Calibration Procedure
Volt 550Li Calibration Procedure Only follow the instructions below if instructed to by Water Tech or the Troubleshooting / FAQs section. Make sure that the batteries are FULLY CHARGED and the unit is OUT OF WATER before calibrating. Calibration Procedure: Read all instructions before attempting to calibrate robot. 1. - Page 22 5. The pump will turn ON immediately after pressing the button. a. If the pump does not turn ON. Turn the robot OFF and try again. 6. Once the pump turns OFF, the robot has been calibrated. It is now OK to turn the robot OFF or place it by the pool and it will automatically turn ON within 5 seconds.
-
Page 23: Volt 550Li Troubleshooting
Volt 550Li Troubleshooting • The robot is getting stuck on the main drain of my pool. 1. The robot should be able to free itself from the main drain after a couple of minutes. 2. If your robot cannot free itself or is consistently getting stuck: •... -
Page 24: Volt 550Li Faqs
Volt 550Li Troubleshooting • See page 20 for calibration instructions. 4. If the problem persists, contact Water Tech Customer Service regarding a “Replacement Motor”. • Robot is driving away during charging. Contact Water Tech Customer Service regarding a “Control Box” issue. •... - Page 25 Volt 550Li FAQs • Can I remove the robot before it has finished a full cycle? • Yes, the robot can be removed from the pool at any time. Please remember to turn the robot OFF when removing from the pool, or leave it facing the pool when in “sleep mode”. •...
- Page 26 Volt 550Li FAQs • I put the robot in “1-Day” Cycle and now only the Battery Lights are ON, why is that? • When in “1-Day” Cycle, the robot will clean for 2-hours and then enter “Sleep” mode indicated by the light display.
- Page 27 Volt 550Li FAQs robot can be placed pool side and it will drive itself back into the pool when it wakes up. Please note that impeller maintenance should NOT be done when the robot is in sleep mode. Please refer to page 17 for more information on impeller maintenance.
- Page 28 10 Alvin Ct., Suite 111 East Brunswick, NJ 08816 - USA Tel: 732-967-9888 US, Canada & International Fax: 732-967-0070 US & International www.WaterTechCorp.com Register at www.watertechcorp.com/register VOLT 550Li VIP CUSTOMER SERVICE Tel: 732-967-9888 EXT. 250 Email: robotvip@watertechcorp.com Rev.: 7212021...
Need help?
Do you have a question about the Volt Series and is the answer not in the manual?
Questions and answers
Our robot will work outside the pool but stops working when it’s put inside the pool .
The WaterTech Series robot may stop working when placed inside the pool due to the following reasons:
1. The pump motor is jammed by unfiltered debris. The robot should not be run without a filter bag, as debris can obstruct the impeller or internal components.
2. The batteries may be fully discharged.
3. The robot may be stuck upside-down.
4. It may need calibration if it drives in circles or over the same area repeatedly.
5. There could be a “Control Box” or “Pump Motor” issue.
Check for obstructions, ensure proper filter use, and verify battery charge.
