Summary of Contents for Samsung SMT-1734

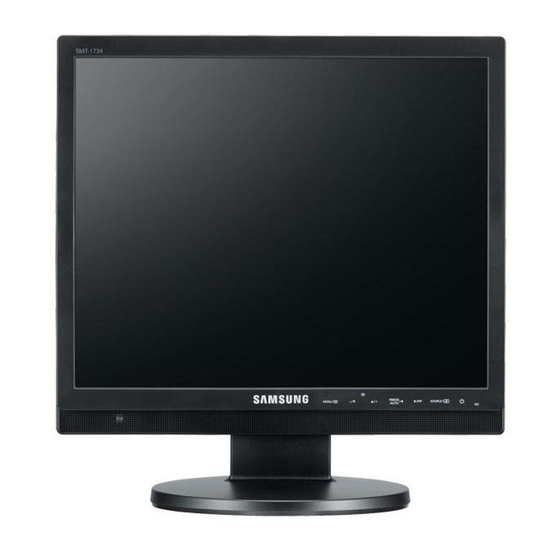

- Page 1 MONITOR SMT-1734 User Guide FREEZE MENU/ /PIP SOURCE/ AUTO...
-
Page 2: Important Safety Instructions
USER'S MANUAL USER'S MANUAL IMPORTANT SAFETY INSTRUCTIONS recommended by Samsung, or sold with the monitor. Any CAUTION mounting of the monitor should follow Samsung’s instructions RISK OF ELECTRIC and should use a mounting accessory recommended by SHOCK DO NOT OPEN Samsung. - Page 3 Samsung or have the same characteristics as Changes or modifications not expressly approved by the the original parts.
-
Page 4: Table Of Contents
USER'S MANUAL Contents Important Safety Instructions ..............2 Unpacking ....................5 Viewing the Control Panels ............... 5 Front View ........................5 Rear & Right Side View ..................... 6 Remote Controller ..................8 Connecting to External Devices..............9 OSD Menu Configurations ................ 10 No Signal Display ...................... -
Page 5: Unpacking
USER'S MANUAL USER'S MANUAL USER'S MANUAL Unpacking Remove the package cover and place the product on a flat and secure surface or in the installation location. Check whether all the following devices and accessories are included with the main system. FREEZE MENU/ AUTO... -
Page 6: Rear & Right Side View
USER'S MANUAL USER'S MANUAL USER'S MANUAL Rear & Right Side View Right Side View Rear View - 6 -... - Page 7 USER'S MANUAL USER'S MANUAL USER'S MANUAL Right Side View Rear View AUDIO-B VIDEO-A IN Audio-B input : Right (RED), Left (White) Composite signal input for VIDEO A. AUDIO-A VIDEO-B IN Audio-A input : Right (RED), Left (White) Composite signal input for VIDEO B. HDMI IN HDMI signal input.
-
Page 8: Remote Controller
USER'S MANUAL USER'S MANUAL Remote Controller POWER Turns the Power On or Off. There will be a few seconds delay before display appears. Number button Changes the ID for remote controller. With the SYSTEM ID button pressed, entered the desired NUMBER by pressing the corresponding button(0~9) to set up the Remote Controller ID SOURCE Press the 'SOURCE' button to change the input signal... -
Page 9: Connecting To External Devices
USER'S MANUAL USER'S MANUAL Connecting to External Devices. The product can be connected to an external device such as Camera, DVR, etc. CAMERA - 9 -... -
Page 10: Osd Menu Configurations
USER'S MANUAL USER'S MANUAL OSD Menu Configurations Picture Menu Mode : Dynamic, Standard, Movie No Signal Display Picture When there is no connection at the VGA . Video Mode : Dynamic HDMI input, the On Screen Display will show this message. Backlight Contrast Brightness... - Page 11 USER'S MANUAL USER'S MANUAL USER'S MANUAL • PC Position In VGA/HDMI Mode, "Sharpness" can not be adjusted. Adjust the PC’s screen positioning if it does not fi t the Monitor screen. Screen Image Lock , PC Position , Image Reset PC Position •...
- Page 12 USER'S MANUAL USER'S MANUAL Auto Adjustment (Adjusting the PC Screen Automatically) White Balance R-Offset Auto adjustment allows the PC screen of set to self- G-Offset adjust to the incoming PC video signal. The values of B-Offset R-Gain fi ne, coarse and position are adjusted automatically. G-Gain B-Gain Picture...
-
Page 13: Sound Menu
USER'S MANUAL USER'S MANUAL Reset Picture Options: Colour Tone/Size/ Digital NR/HDMI Black Level You can return to the factory defaults picture settings. Picture Picture Options More Colour Tone Cool Picture Options Size Normal Reset Warm1 Digital NR : Auto Cancel Warm2 : Normal HDMI Black Level... -
Page 14: Setup Menu
USER'S MANUAL USER'S MANUAL Equalizer Reset Selecting the Reset function after setting the equalizer Sound resets the equalizer setting to the factory defaults. Mode : Custom Equalizer Sound Sound Select : Main Reset Mode : Custom Equalizer Sound Select : Main Reset Move Enter... - Page 15 USER'S MANUAL Blue Screen/Melody Setup Language : English Setup Blue Screen : Off Melody : Medium Language : English ECO Saving Blue Screen Melody System ID ECO Saving : Off No Signal OSD : On System ID No Signal OSD : On Move Enter...
- Page 16 Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1. First, click on "Control Panel" on the Windows start menu.
-
Page 17: Input Menu
USER'S MANUAL System ID Input Video A : – – – – Setup Video B : – – – – : – – – – Language Blue Screen 关 HDMI : – – – – Melody ECO Saving System ID No Signal OSD Move Enter... -
Page 18: Specifications
USER'S MANUAL Specifications Model Name SMT-1734 Sales Area Worldwide Broadcasting System NTSC/PAL System Inch 17'' Display Type LED PANEL Resolution (H x V) 1280 x 1024 Brightness (cd/m 250cd/m Panel Contrast 1000:1 Response Time 5msec Viewing Angle Degree (Horizontal)/160 (Vertical) Pixel Pitch (mm) 0.264mm(H) x 0.264mm(V) -
Page 19: Dimensions
USER'S MANUAL Dimensions unit: mm - 19 -... -
Page 20: Correct Disposal
USER'S MANUAL Correct Disposal Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. - Page 21 TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. Samsung House, 1000 Hillswood Drive, Hillswood Business 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS Toll Free : +1-877-213-1222 Direct : +1-201-325-6920...
