Summary of Contents for BAUKER PDH26G2
- Page 1 PDH26G2 1000W 26MM ROTARY HAMMER ORIGINAL INSTRUCTION MANUAL...
-
Page 2: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions Important - Please read these instructions fully before starting assembly may result in electric shock, fire and/or serious injury. General Power Tool Safety Warnings Save all warnings and instructions for future reference. - Page 3 protected supply. Use of an RCD reduces the risk of electric shock. Important - Please read these instructions fully before starting assembly 3) Personal safety a) Stay alert, watch what you are doing and use General Power Tool Safety Warnings common sense when operating a power tool.
-
Page 4: Hammer Safety Warnings
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. - Page 5 ADDITIONAL SAFETY RULES FOR HAMMER 1. Always wear a dust mask. SYMBOLS To reduce the risk of injury, user must read instruction manual Wear eye protection Wear ear protection Wear dust mask Warning Double insulation Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
- Page 6 EN-6...
- Page 7 Toothed side of hex hole marking on the grip base Toothed side of the depth gauge bit holder bits locking sleeve EN-7...
- Page 8 A H2 EN-8...
-
Page 9: Component List
7. HAMMER AND DRILLING ACTION SELECTOR 8. AUXILIARY HANDLE Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type PDH26G2 (PDH-designation of machinery, representative of Rotary Hammer Drill) 230 -240V~ 50 Hz Voltage Power input... -
Page 10: Noise Information
ACCESSORIES Auxiliary handle Depth gauge Dust cover Spanner Plastic container grease SDS plus drill bits (8/10/12mm) Point chisel Flat chisel We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. NOISE INFORMATION A weighted sound pressure =94dB(A) - Page 11 WARNING! To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
- Page 12 5. ON/OFF SWITCH (SEE FIG. E) Depress the switch to start the tool and release it to stop your tool. 6. FUNCTION MODE SELECTION Hammer drill function (See Fig. F1, F2) For drilling concrete, masonry etc, press the lock button (a) and rotate the selector switch to make sign "...
-
Page 13: Maintenance
MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. - Page 14 PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE – NEUTRAL BROWN –...
-
Page 15: Declaration Of Conformity
Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Rotary Hammer Description PDH26G2 (PDH-designation of machinery, representative of Hammer) Type Function Hammering various materials Complies the following directive: 2006/42/EC, 2011/65/EU, 2014/30/EU Standards conform to:...
Need help?
Do you have a question about the PDH26G2 and is the answer not in the manual?
Questions and answers

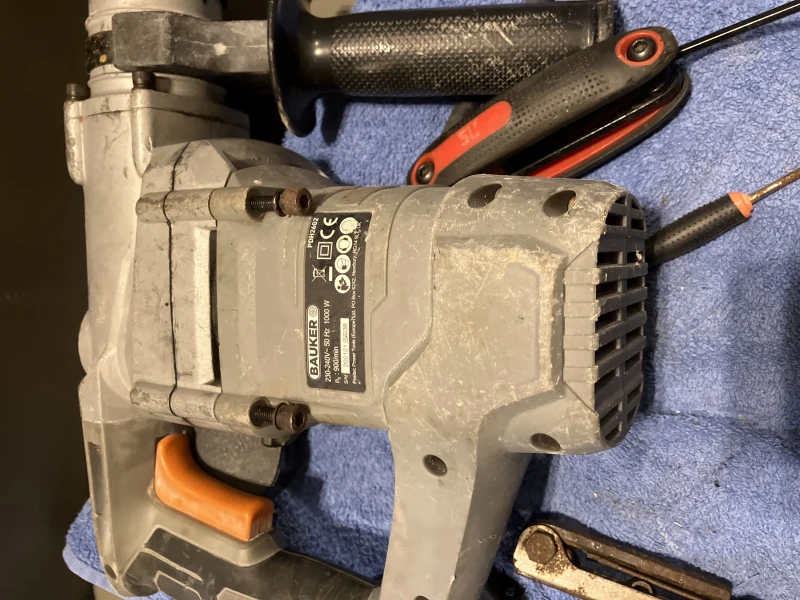

Where are brushes located in a PDH26G2
Is there brushes in a Bauker PDH26G2 if so where are they locked
