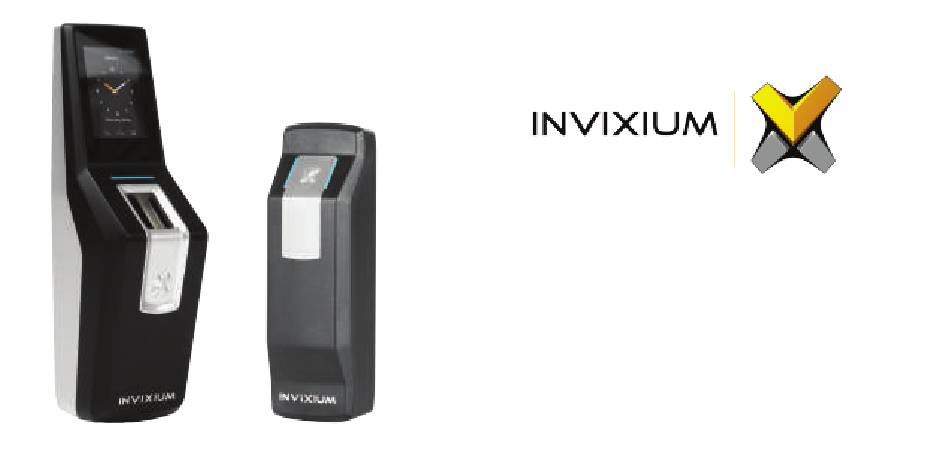

- Page 1 IXM INGUIDE Quick Start Guide MERGE 2 MERGE CR...
- Page 2 Invixium Customer Portal Stay up to date with: ▪ Latest Updates ▪ Best Practices ▪ Datasheets ▪ Installation Guides ▪ Feature Description Documents ▪ Videos ▪ FAQs ▪ Tutorials ▪ And more... Visit https://www.invixium.com/support/...
- Page 3 In the Box IXM INSTALL KIT Metal Mounting Plate Screw (qty 2) Snubber Diode Wired Back Cover Dolphin Crimps (qty 10) Earth Ground Wire Wall Mounting Screws (qty 4) Hex Key Metal Mounting Plate...
-
Page 4: Getting Started
Remove the Mounting Plate, Wired Back Cover and Screws from the IXM INSTALL KIT. Install the Mounting Plate at the desired location (INVIXIUM recommends 120-130 cms from the floor to the bottom of the device). Make the necessary connections to the Wired... - Page 5 Get Wired Glossary Access Control Panel On-The-Go Common Relay Connector 11 13 15 17 19 Door Access Control SGND Signal Ground Specific Purpose Output DGND Digital Ground EGND Earth Ground TAMPER Tamper Power (12VDC) Ground VIN+ Normally Closed VIN- Power Ground 10 12 14 16 18 20 Normally Open WDATA...
- Page 6 Get Wired Connector Wire Color Wire Label Pin(s) Wire Color Wire Label Pin(s) VIN+ Blue/Black RS485- (A) Black Blue RS485+(B) VIN- Green/Yellow EGND Orange DAC_OUT Black/Green DGND Orange/Yellow SPO_1 White WDATA_OUT1 Green WDATA_OUT0 Purple/Yellow DAC_IN2 White/Purple DAC_IN1 Blue/White DAC_IN3 Green/White WDATA_IN0 Purple TAMPER...
-
Page 7: Earth Ground
Earth Ground Earth Ground Wire Lug For protection against Electrostatic Discharge, Invixium recommends the use of a ground connection between each IXM device to a high quality Earth Ground available at the install site. Connect to Earth Ground in the following way:... - Page 8 When using PoE, an IEEE 802.3af compliant Active recommended PoE Injector Specs INVIXIUM Midspan Injector is required (sold separately). Refer to table for Invixium recommended PoE Input Voltage 90-264 VAC, 60 Hz Injector specs. Full PoE deployments should Input Current 0.4 A @ 100 VAC...
-
Page 9: Ethernet And Wi-Fi
For Ethernet communication, a specific range IXM WEB of allowable IP addresses can be set for improved security. Router connected to LAN/WAN PoE+ connectivity is available on all devices except MYCRO. MERGE 2 does not support Wi-Fi communication. MERGE CR MERGE 2... - Page 10 31 devices. At a baud rate of 9600 bps, make certain that the maximum cable length is not longer than 1200 m (4000 ft). IXM WEB RS-485 to USB Converter MERGE 2 MERGE CR Bottom Connecter RS-485 SGND (19)
-
Page 11: Usb Serial Communication
USB Serial Communication For Serial Communication, IXM devices are equipped with USB Aux port. The USB port can be used to connect a Flash Drive via Micro USB OTG cable and perform functions like upgrading firmware, downloading transaction logs and configuration files. The USB port can also be used to connect to a PC running IXM WEB vi a Micro USB cable Micro USB Cable... - Page 12 Wiegand 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 Standard 26-Bit Wiegand Format IXM devices have the option to use the Facility Code (8 Bits) ID (16 Bits)
- Page 13 ACP Connections MERGE 2 WDATA_OUT0 WDATA_OUT1 DGND Wiegand Connections WDATA_OUT0 (10) WDATA_OUT1 DGND...
- Page 14 DAC Connections (Electric Door Strike) MERGE 2 RLY_NO Electric Snubber Diode RLY_COM Door Strike Door Strike Power Supply DAC_IN1 Door DAC_OUT Contact DAC_OUT DAC Connections Request DAC_OUT DAC_IN2 to exit DAC_IN2 (11) DAC_IN1 (12) RLY_NO (17) Max Relay Rating = 2A @ 24VDC...
- Page 15 DAC Connections (Magnetic Lock) MERGE RLY_NC Magnetic Snubber Diode RLY_COM Door Lock Door Strike Power Supply DAC_IN1 Door DAC_OUT Contact DAC Connections DAC_OUT DAC_OUT Request DAC_IN2 DAC_IN2 (11) to exit DAC_IN1 (12) RLY_COM (18) Max Relay Rating = 2A @ 24VDC RLY_NC (20) NOTE: A separate power supply is required for the door strike...
- Page 16 Enrollment Best Practices Incorrect Correct Pressure Too Low Too High Good Position Rotation Condition Preferred Fingers Good...
- Page 17 Finger Placement Best Practices 1. Proper finger placement is crucial for good enrollment score and faster authentication. 2. Place your finger straight on the sensor as shown below, while covering the sensor with the top third of your finger as shown on the previous page. Incorrect Correct...
-
Page 18: Card Placement
1. The location of the card reader on Invixium devices depends on the product model. 2. For MERGE 2, the card reader is located below the sensor, behind the emblem. 3. See the image on the right for the correct card placement while using MERGE 2. -
Page 19: Software Installation
>> IXM WEB >> Get IXM WEB. You will be redirected to ixmweb.invixium.com. Click on the IXM WEB Tab. Provide the required details and Click “Submit”. An email with the latest IXM WEB package will be sent to the email ID provided. - Page 20 Invixium Installation Guide. For technical or customer support issues, please contact your Local Authorized Reseller first. Visit the Customer Portal for more Invixium resources at www.invixium.com/support Enjoy the Experience. Some features may vary based on device models. Copyright © 2020, INVIXIUM.
