Features
4 switch relays - 1200W each
•
Up to 4000m Range
•
12 - 32Vac/dc and 230Vac supply
•
Completely waterproof ABS
•
enclosure (IP68)
All outputs momentary, latching
•
or programmable timed
Any switch maps to any relay or
•
multiple relay
868MHz Reliable FM Technology
•
EMC Compliant for Europe
•

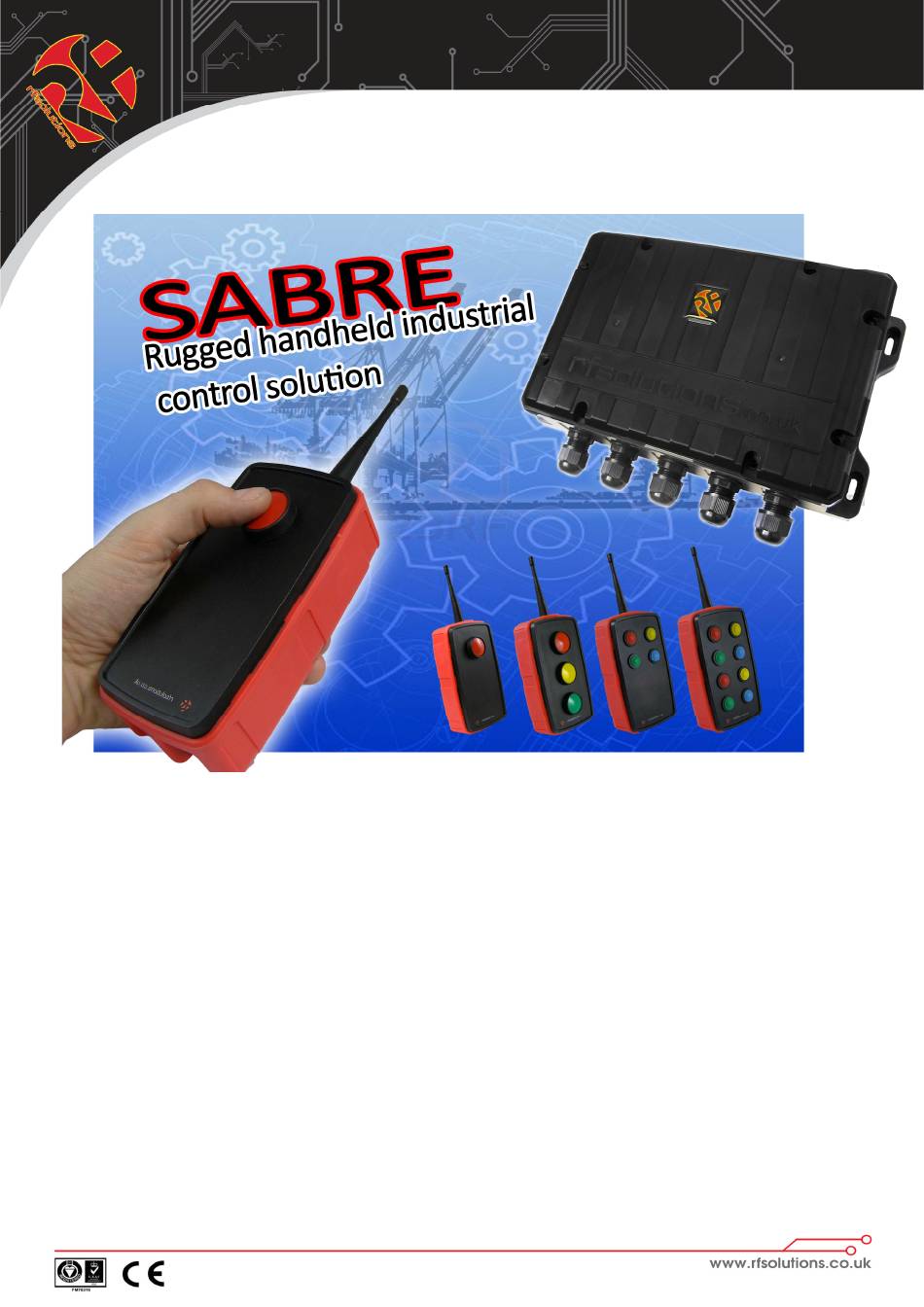

RUGGED REMOTE CONTROL SYSTEM
Description

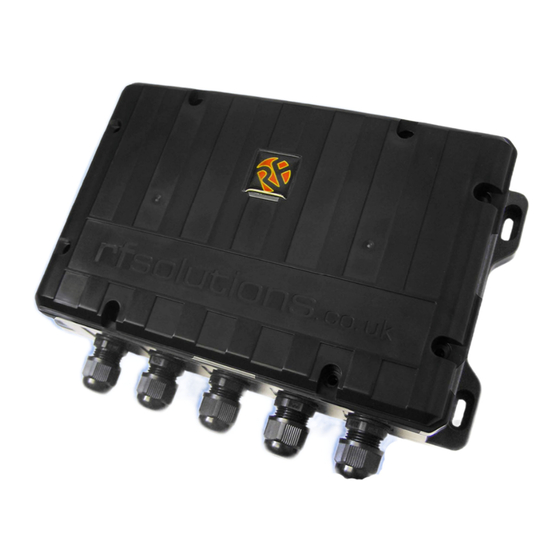

Whatever your switching application the SABRE Remote control system with 4
individually controlled relay switches and a completely waterproof IP68 enclosure
SABRE will be a great choice.
The SABRE remote control system has been designed with the requirements of
Industrial electricians in mind and therefore it can be used to switch all lighting types
as well as other applications such as flood lights, Electric gates and conveyors.
Each receiver has 4 switched outputs, which, using
our one touch 'easy-learn' process can be controlled
from any switch on any compatible transmitter.
Thanks to the latest technology each of the 4
outputs on the SABRE remote control
system can be set to operate in a timed,
momentary or latching mode for complete
flexibility.
DS-SABRE-L-2
SABRE Series
SABRE Series
SABRE Series
SABRE Series
Applications
Remote outdoor
•
switching
Industrial control
•
Conveyors
•
Plant equipment
•
Advertisement
Table of Contents
Summary of Contents for Rugged Computing SABRE Series
- Page 1 SABRE Series SABRE Series SABRE Series SABRE Series RUGGED REMOTE CONTROL SYSTEM Features Description Whatever your switching application the SABRE Remote control system with 4 4 switch relays - 1200W each • individually controlled relay switches and a completely waterproof IP68 enclosure SABRE will be a great choice.
- Page 2 SABRE Remote control SABRE Remote control SABRE Remote control SABRE Remote control System Part Numbering Range** Receiver Part Number Description (Metres) Power Supply 230Vac System 4 outputs SABRE-S4L 4000m 12-32Vac/dc With SABRE-T4 **Range stated is optimum - Line of Sight. Range can be dramatically reduced by obstacles and other interference.
- Page 3 SABRE Remote control SABRE Remote control SABRE Remote control SABRE Remote control DS-SABRE-L-2 PAGE 3...
- Page 4 SABRE Remote control SABRE Remote control SABRE Remote control SABRE Remote control Quick Installation Guide (systems only) The SABRE system provides 4 switches each capable of switching up to 1.2KW (6A @ 230V). Each relay is independent and separately controlled. The SABRE L series remote control system provides switched contacts and can therefore be used to switch most voltages either AC or DC (see maximums on page 7) First mount the SABRE system receiver box in the wall in your desired location (see Page 8 for wall mounting dimensions and information).
- Page 5 SABRE Remote control SABRE Remote control SABRE Remote control SABRE Remote control Advanced operation The SABRE system comes with one transmitter, this is already SYNC’ed and will operate the system out of the box. To AUTO-SNYC a new transmitter To SYNC a new SABRE handheld transmitter to the receiver box - simply press the SNYC button on the SABRE receiver board.
- Page 6 SABRE Remote control SABRE Remote control SABRE Remote control SABRE Remote control Advanced operation continued… Installation TEST MODE The SABRE comes with an in-built test mode which allows a user to check the signal strength of any compatible handheld: Press the SIGNAL TEST button on the PCB Press any button/activate the transmitter which you want to test LEDs 1-8 will show a bar graph of the signal strength - the more LEDs on the better the signal TIP: Try the transmitter in the location where it will be used to make sure it will work once installation is com-...
- Page 7 SABRE Remote control SABRE Remote control SABRE Remote control SABRE Remote control Technical Specifications SABRE-Tn Transmitters Transmitters: Enclosure Rating: IP68 Battery Type: AAA x 4 (supplied) Battery Life: 3 years @ approx 100 x 1/2second presses per 3 day. Dimensions: 154 x 85 x 48 mm Storage Temperature: -10 to +70...
- Page 8 SABRE Remote control SABRE Remote control SABRE Remote control SABRE Remote control Wall Mounting Dimensions (not to scale) RF Solutions Ltd. Recycling Notice Meets the following EC Directives: Waste Batteries and Accumulators Directive 2006/66/EC DO NOT Where batteries are fitted, before recycling the Discard with normal waste, please recycle.
