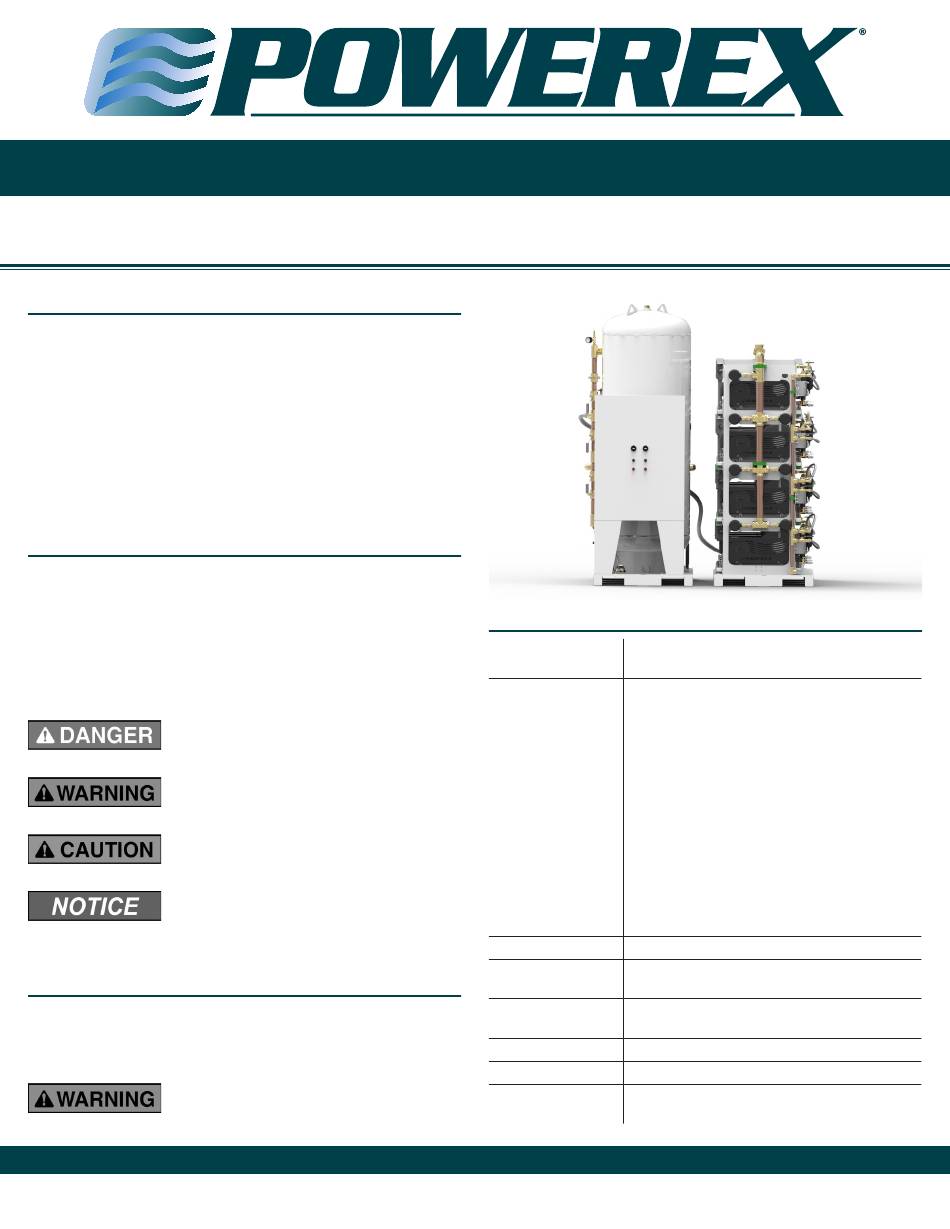

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description

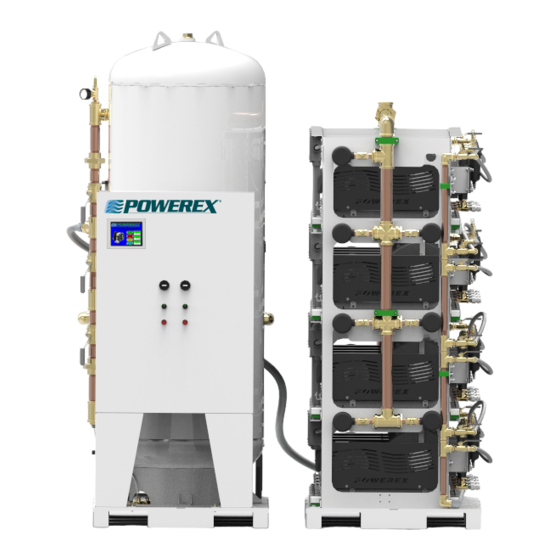

The Powerex Scroll Medical Compressed Air Source Systems are
intended to provide Medical Air as where risk meets the Category
3 requirements in NFPA99. Medical Air is intended for use in human
respiration. Standard Laboratory Compressed Air Source systems are
intended for use in facilities where the risk is less than Category 3,
or applications outside of the scope for NFPA99, and not intended
for human respiration. The systems include intake filtration, electric
motor driven compressor pumps, aftercoolers, condensate traps,
air storage receiver with automatic condensate drain, dryer systems
with filtration and bypass valves, dew point monitor, CO monitor if
applicable, and controls to operate the system.
Safety Guidelines
A SEPARATE SAFETY BOOKLET IS PROVIDED ALONG WITH THIS
MANUAL. READ AND UNDERSTAND THE SAFETY BOOKLET. This
manual contains information that is very important to know and
understand. This information is provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help recognize this information, observe
the following symbols. MAKE SURE EVERYONE OPERATING OR
SERVICING THE COMPRESSOR READS AND UNDERSTANDS ALL THE
INFORMATION PROVIDED.
Danger indicates an imminently hazardous
situation which, if not avoided, WILL result in death
or serious injury.
Warning
situation which, if not avoided, COULD result in
death or serious injury.
Caution indicates a potentially hazardous situation
which, if not avoided, MAY result in minor or
moderate injury.
Notice indicates important information, that if not
followed, may cause damage to equipment.
NOTE: Note indicates information that requires special attention.
Unpacking
Immediately upon receipt of the vacuum system, inspect for any
damage which may have occurred during shipment. Repair or replace
damaged items before use. The name-plate should be checked to
verify the correct model and voltage.
Do not operate unit if damaged during shipping,
handling or use. Damage may result in unsafe
conditions and cause injury or property damage.
Powerex • 150 Production Drive • Harrison, OH 45030 • USA
P 1.888.769.7979 • F 513.367.3125 • www.powerexinc.com
Scroll Medical & Laboratory Compressed Air Systems
indicates a potentially hazardous
Specifications
Compressed Air Type Oilless air meeting requirements of Type 0
Powerex Oilless Scroll compressor pumps
Medical Systems:
- Final filtration to 0.5 micron or better, regulated
for 50-55 psig
- Dew point alarm: High dew point at 35°F
- CO Alarm: High CO at 10 ppm
- Dryer purge saving control on at -15°F; off at
-10°F
Laboratory Systems:
- Final filtration to 0.5 micron or better, regulated
for 90-95 psig
- Dew point alarm: High dew point at -20°F
(Standard)
- CO alarm (optional at 10 ppm)
- Dryer purge saving control on at -45°F; off at
–40°F
Lubrication: Grease filled bearings, PTFE compound tip seals
Maximum System Medical Systems: 116 psig
Pressure Laboratory Systems: 145 psig
Motor Protection Motor protector circuit breakers
System
Air Receiver ASME Code, rated 165 psig or higher
Control Panel UL508 Compliant
Misc. Cal. OSHA 462 (L) (2) Compliant
Cal. OSHPD OSP – 0380-10
IN907800AV • 08/2018
Page 1 of 40
